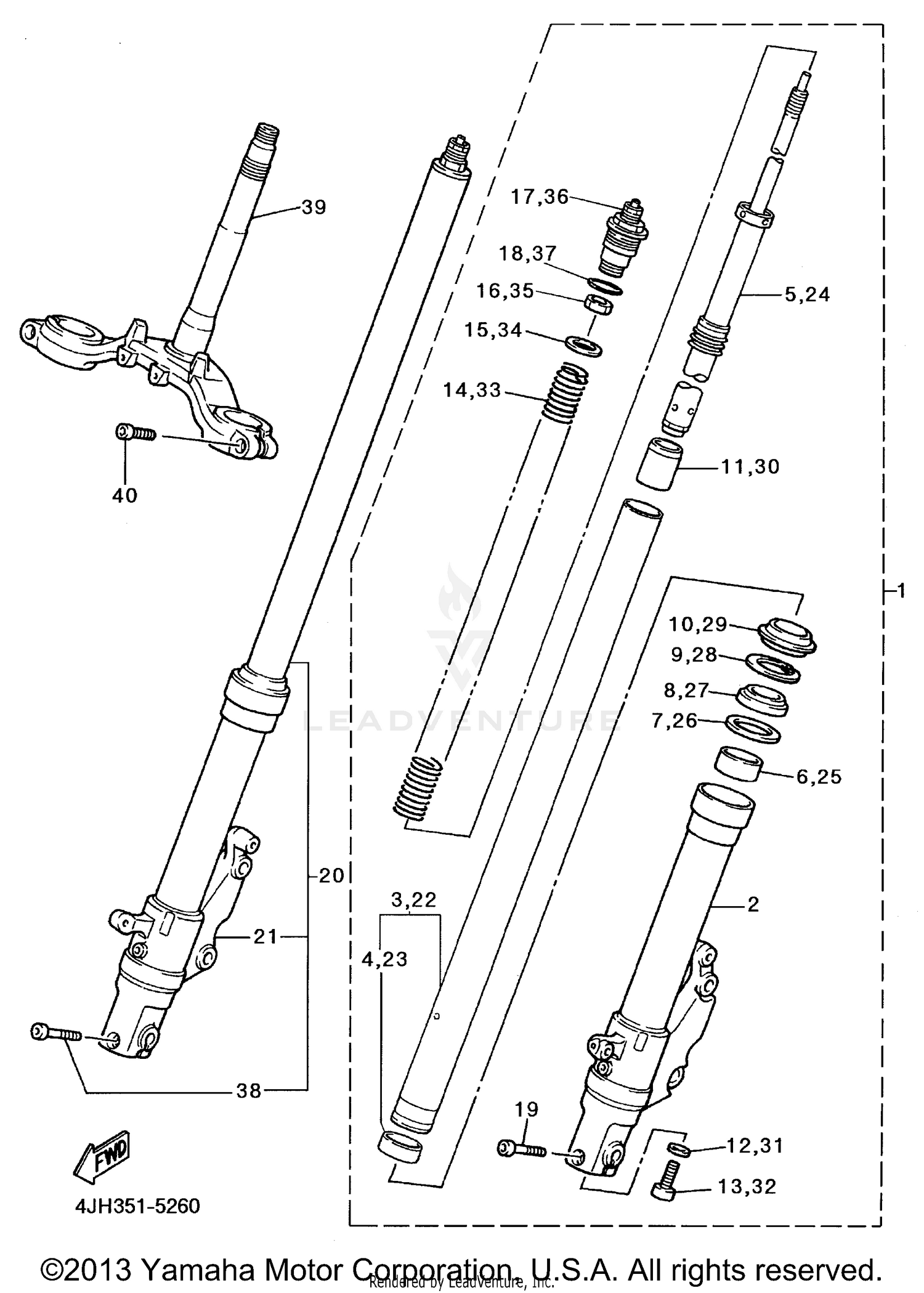

1996 Yamaha YZF 600R FRONT FORK OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSY (L.H
4JH-23102-10-00
Superseded by 4JH-23102-12-00
|
$940.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
TUBE, OUTER (LEFT)
4JH-23126-10-00
|
$696.99 | ||
|
Unavailable |
|||
|
#3
INNER TUBE 1
4JH-23110-10-00
Superseded by 4JH-23110-11-00
|
$271.99 | ||
|
Unavailable |
|||
|
#4
METAL, SLIDE
3JD-23171-L0-00
Superseded by 4FM-23171-40-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CYLINDER COMP., FRONT FORK
4JH-23170-10-00
|
$391.99 | ||
|
Unavailable |
|||
|
#6
METAL, SLIDE 1
3GM-23125-50-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, OIL SEAL
36Y-23146-10-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
OIL SEAL
3SP-23145-L0-00
|
$20.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
RING, SNAP
26H-23156-00-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
SEAL, DUST
3XV-23144-50-00
|
$22.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
SPINDLE, TAPER
3LC-23173-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#12
GASKET
2K8-23158-L0-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEXAGON SOCKET HEAD
3LC-23181-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, FRONT FORK
4JH-23141-10-00
|
$57.99 | ||
|
Unavailable |
|||
|
#15
WASHER, SPRING UPPER
3LC-23149-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
3XJ-23357-L0-00
|
$0.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, CAP
4JH-23111-10-00
|
$211.19 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING
43F-23188-10-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
91314-10045-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#20
FRONT FORK ASY R
4JH-23103-10-00
Superseded by 4JH-23103-12-00
|
$948.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
TUBE, OUTER (RIGHT)
4JH-23136-10-00
|
$651.99 | ||
|
Unavailable |
|||
|
#22
INNER TUBE 1
4JH-23110-10-00
Superseded by 4JH-23110-11-00
|
$271.99 | ||
|
Unavailable |
|||
|
#23
METAL, SLIDE
3JD-23171-L0-00
Superseded by 4FM-23171-40-00
|
$17.49 | ||
|
Unavailable |
|||
|
#24
CYLINDER COMP., FRONT FORK
4JH-23170-10-00
|
$391.99 | ||
|
Unavailable |
|||
|
#25
METAL, SLIDE 1
3GM-23125-50-00
|
$25.99 | ||
|
Unavailable |
|||
|
#26
WASHER, OIL SEAL
36Y-23146-10-00
|
$22.99 | ||
|
Unavailable |
|||
|
#27
OIL SEAL
3SP-23145-L0-00
|
$20.99 | ||
|
Unavailable |
|||
|
#28
RING, SNAP
26H-23156-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#29
SEAL, DUST
3XV-23144-50-00
|
$22.99 | ||
|
Unavailable |
|||
|
#30
SPINDLE, TAPER
3LC-23173-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#31
GASKET
2K8-23158-L0-00
|
$20.99 | ||
|
Unavailable |
|||
|
#32
BOLT, HEXAGON SOCKET HEAD
3LC-23181-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#33
SPRING, FRONT FORK
4JH-23141-10-00
|
$57.99 | ||
|
Unavailable |
|||
|
#34
WASHER, SPRING UPPER
3LC-23149-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#35
NUT
3XJ-23357-L0-00
|
$0.45 | ||
|
Unavailable |
|||
|
#36
BOLT, CAP
4JH-23111-10-00
|
$211.19 | ||
|
Unavailable |
|||
|
#37
O-RING
43F-23188-10-00
|
$6.99 | ||
|
Unavailable |
|||
|
#38
BOLT
91314-10045-00
|
$3.30 | ||
|
Unavailable |
|||
|
#39
UNDER BRACKET COMP.
4JH-23340-00-00
|
$358.01 | ||
|
Unavailable |
|||
|
#40
BOLT
91314-12030-00
|
$8.99 | ||
|
Unavailable |
|||
