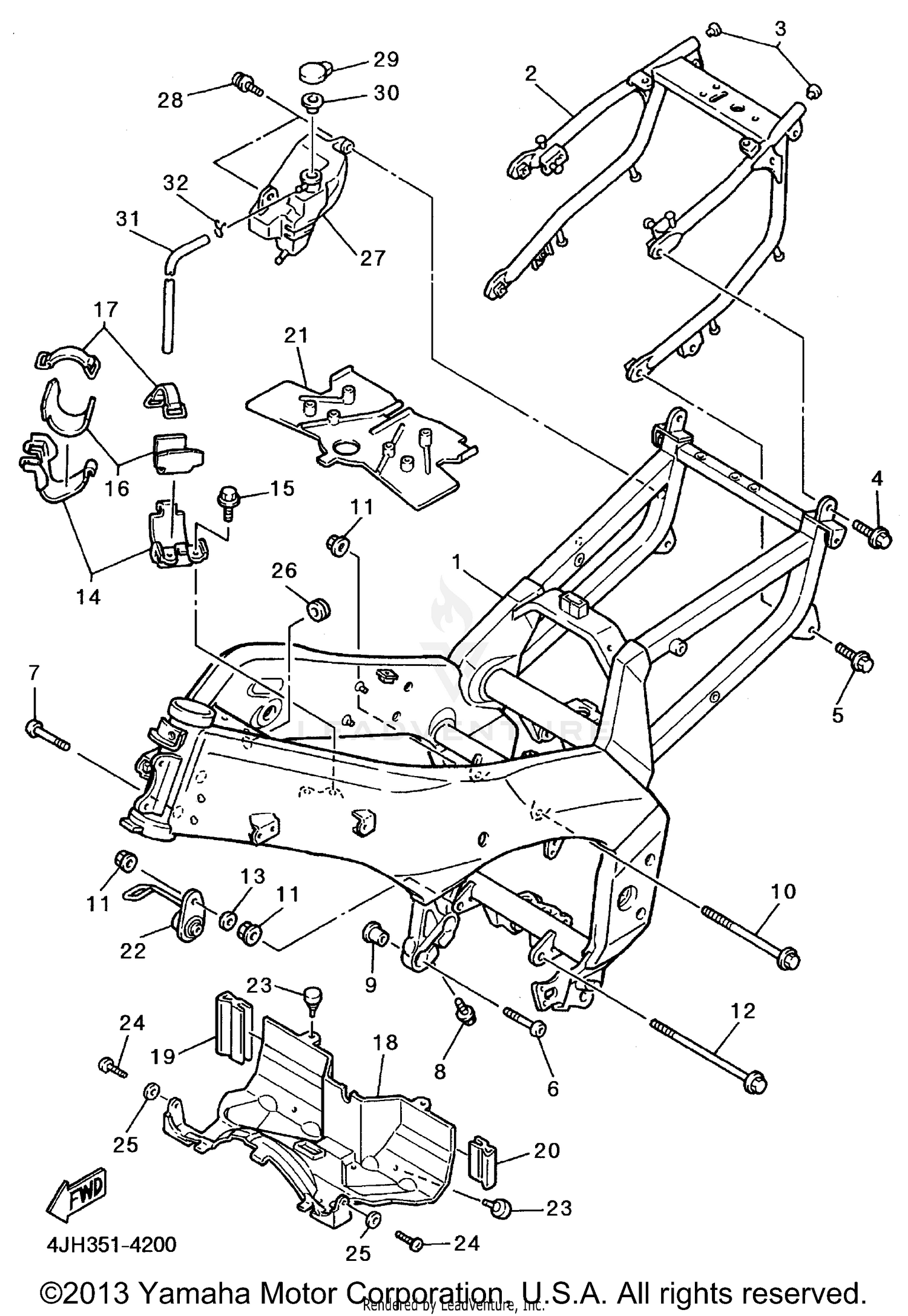

1996 Yamaha YZF 600R FRAME OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME COMP.
4JH-21110-10-T9
|
$1,697.99 | ||
|
Unavailable |
|||
|
#2
STAY, REAR
4FM-21645-01-00
|
$385.99 | ||
|
Unavailable |
|||
|
#3
PLUG
90338-16148-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT,FLANGE (JN5)
95817-08016-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
BOLT, FLANGE
95817-08035-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
BOLT
91317-10045-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
91317-10050-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
95817-10025-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
COLLAR
90387-115V8-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
90105-10731-00
Superseded by 90105-10183-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, FLANGE
95707-10500-00
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BOLT, FLANGE
95827-10175-00
|
$8.49 | ||
|
Unavailable |
|||
|
#13
WASHER, PLATE
90201-10774-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BRACKET, COIL
4JH-21359-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#15
BOLT, FLANGE
95817-06012-00
|
$1.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
DAMPER
4JH-21488-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#17
BAND, BATTERY
3TJ-82131-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER 2
4JH-2117M-00-00
|
$55.99 | ||
|
Unavailable |
|||
|
#19
SEAL SET, 1
4JH-21208-00-00
|
$4.50 | ||
|
Unavailable |
|||
|
#20
SEAL SET, 2
4JH-21209-00-00
|
$3.30 | ||
|
Unavailable |
|||
|
#21
COVER 3
4JH-2117N-01-00
|
$55.99 | ||
|
Unavailable |
|||
|
#22
STAY, MUFFLER 2
4JH-21446-00-00
|
$55.99 | ||
|
Unavailable |
|||
|
#23
DAMPER 2
36Y-21639-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#24
SCREW,PAN HEAD
98507-06016-00
|
$3.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
WASHER, PLATE
92907-06600-00
|
$2.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
GROMMET
90480-18171-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
TANK, RECOVERY
4FM-21871-00-00
Superseded by 4FM-21871-02-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW, WITH WASHER
90159-06033-00
Superseded by 90159-06060-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
CAP
4L0-21875-00-00
Superseded by 1AA-21815-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
GASKET
1AA-21874-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
PIPE
90445-08786-00
Superseded by 90445-084J0-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLIP
90467-08003-00
|
$13.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
