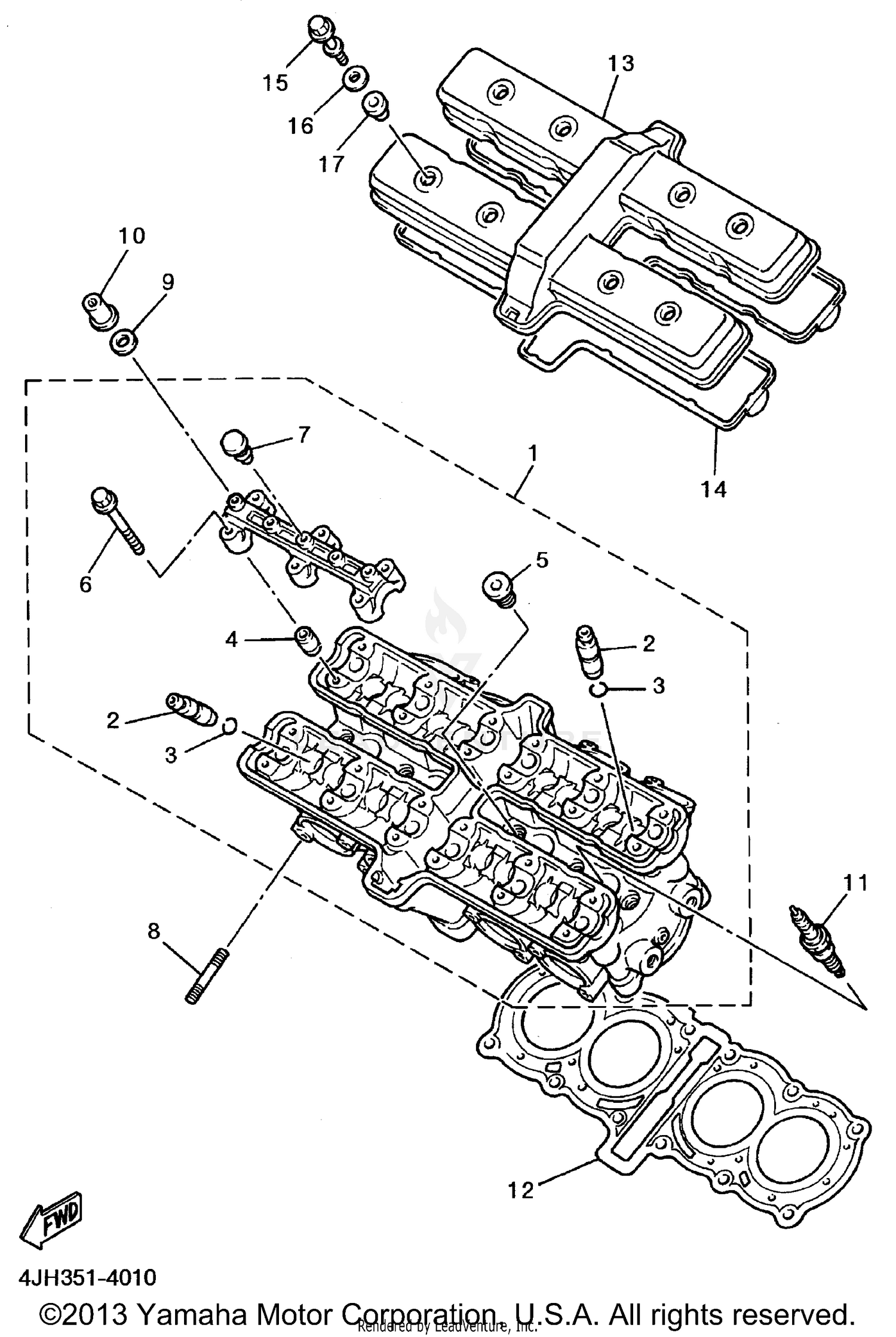

1996 Yamaha YZF 600R CYLINDER HEAD OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY
4JH-11101-00-00
Superseded by 4JH-11101-02-00
|
$1,228.99 | ||
|
Unavailable |
|||
|
#
CYLINDER HEAD ASSY
4MM-11101-00-00
Superseded by 4MM-11101-02-00
|
$1,164.99 | ||
|
Unavailable |
|||
|
#2
GUIDE, VALVE
3TJ-11133-10-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CIRCLIP
93440-07149-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, DOWEL
99510-08016-00
Superseded by 91808-16023-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLUG, STRAIGHT SCREW
90340-12112-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
90105-06384-00
Superseded by 90105-06026-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLUG
90338-08174-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, STUD
90116-06437-00
Superseded by 90116-06466-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-090P4-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
90179-09612-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CR9E NGK SPLUG 4PK
NGK-CR9E0-00-00
Superseded by CR9-E0000-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#12
GASKET, CYLINDER HEAD 1
4JH-11181-00-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, CYLINDER HEAD 1
3TJ-11191-00-00
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET, HEAD COVER 1
3TJ-11193-00-00
Superseded by 4TV-11193-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
90109-064F0-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER
90209-11262-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
RUBBER, MOUNT 1
2GH-1111G-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
