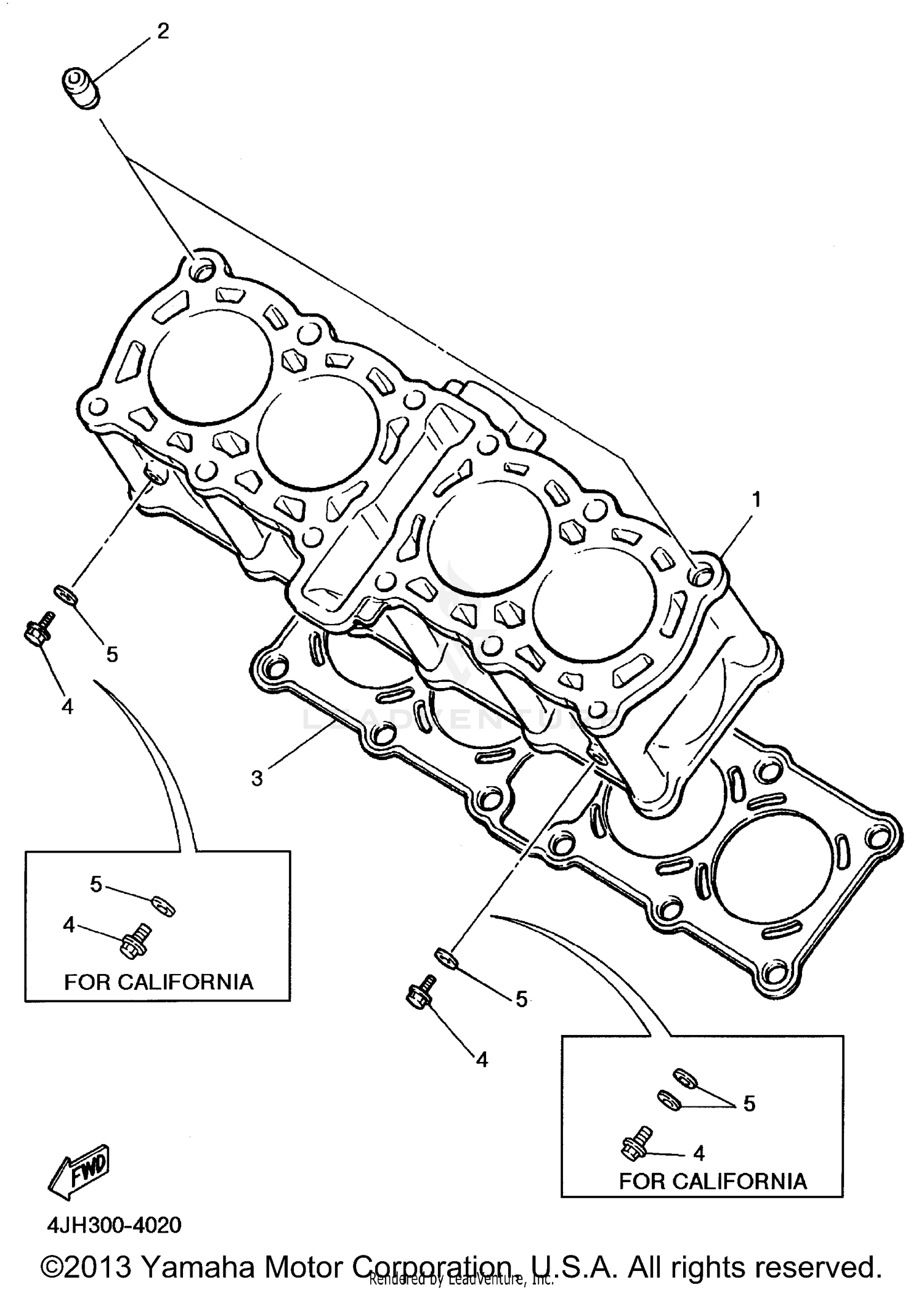

1996 Yamaha YZF 600R CYLINDER OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER 1
4MM-11311-00-00
Superseded by 4MM-11311-01-00
|
$890.99 | ||
|
Unavailable |
|||
|
#2
PIN, DOWEL
91810-08016-00
Superseded by 93612-16254-00
|
$4.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
GASKET, CYLINDER
3TJ-11351-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT,FLANGE
95817-06010-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#
BOLT, FLANGE
95807-06014-00
Superseded by 95817-06014-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
GASKET
90430-06014-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
