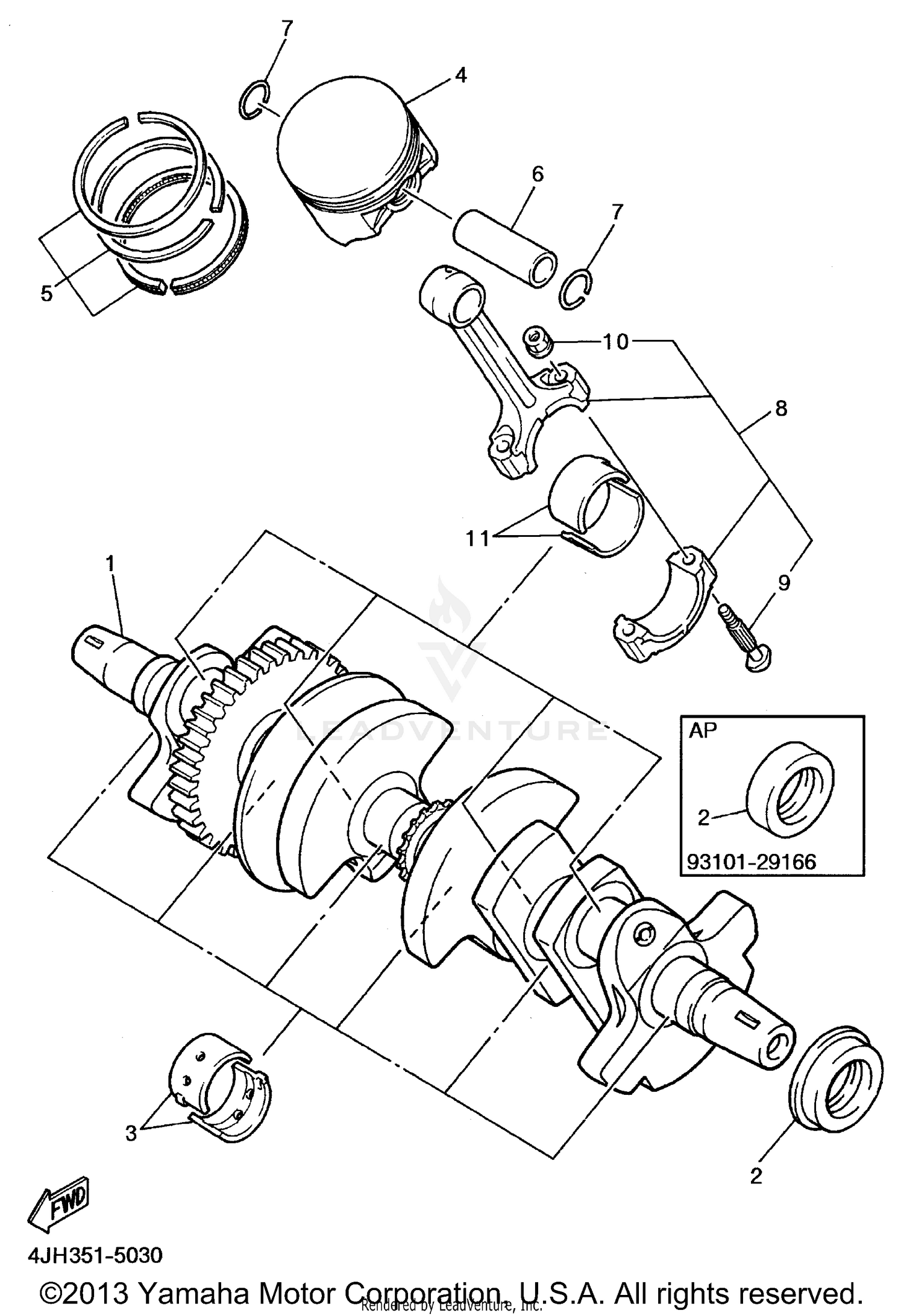

1996 Yamaha YZF 600R CRANKSHAFT PISTON OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT
4JH-11411-00-00
|
$769.99 | ||
|
Unavailable |
|||
|
#2
OIL SEAL
93101-29165-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#
OIL SEAL
93101-29166-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLANE BEARING, CRANKSHAFT 1
1WG-11416-30-00
Superseded by 4TV-11416-30-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PLANE BEARING, CRANKSHAFT 1
1WG-11416-20-00
Superseded by 4TV-11416-20-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PLANE BEARING, CRANKSHAFT 1
1WG-11416-10-00
Superseded by 4TV-11416-10-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PLANE BEARING, CRANKSHAFT 1
1WG-11416-00-00
Superseded by 4TV-11416-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PLANE BEARING, CRANKSHAFT 1
1WG-11416-50-00
Superseded by 4TV-11416-50-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PLANE BEARING, CRANKSHAFT 1
1WG-11416-40-00
Superseded by 4TV-11416-40-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON (STD)
4JH-11631-00-00
|
$90.99 | ||
|
Unavailable |
|||
|
#5
PISTON RING SET (STD)
4JH-11603-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, PISTON
4JH-11633-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLIP
90468-12069-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CONNECTING ROD ASSY
4JH-11650-00-00
|
$191.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, CONNECTING ROD
4JH-11654-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
90179-07652-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLANE BEARING, CONNECTING ROD
1WG-11656-20-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#
PLANE BEARING, CONNECTING ROD
1WG-11656-10-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PLANE BEARING, CONNECTING ROD
1WG-11656-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PLANE BEARING, CONNECTING ROD
1WG-11656-30-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
