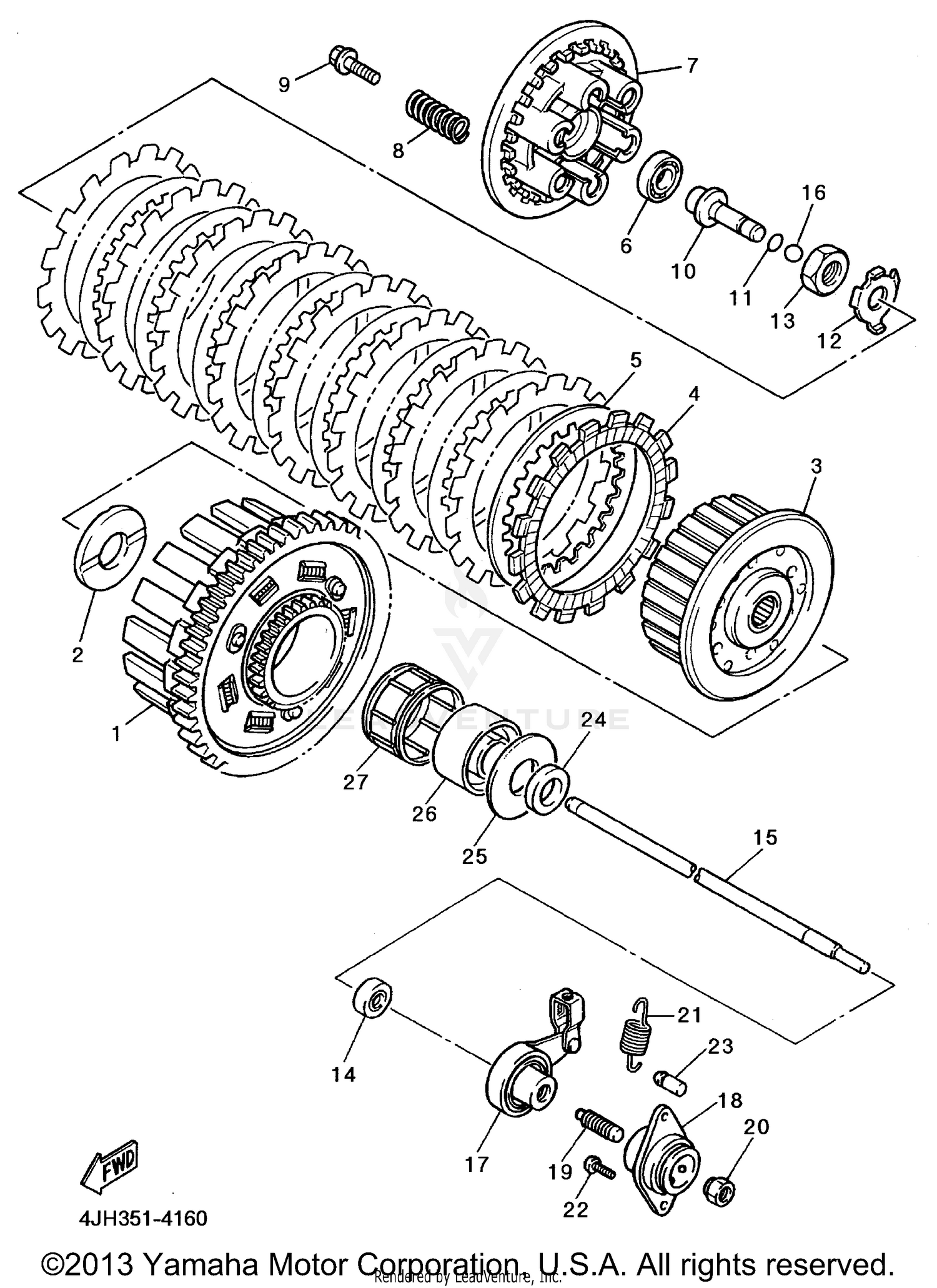

1996 Yamaha YZF 600R CLUTCH OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PRIMARY DRIVEN GEAR COMP.
4JH-16150-00-00
|
$493.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE, THRUST 1
1WG-16154-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOSS, CLUTCH
4JH-16371-00-00
Superseded by 4JH-16371-01-00
|
$146.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, FRICTION
4JH-16321-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, CLUTCH 1
1LX-16324-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING
93306-00105-00
|
$23.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
PLATE, PRESSURE 1
4JH-16351-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, COMPRESSION
90501-224J9-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, WITH WASHER
90159-06092-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
ROD, PUSH 1
4JH-16356-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING
93210-48364-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, LOCK
90215-18225-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
90170-18221-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
OIL SEAL (SD07 8-21-5.5 HS)
93109-08058-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
ROD, PUSH 2
4JH-16357-00-00
Superseded by 4JH-16357-01-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BALL
93505-16006-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
PUSH LEVER ASSY
4JH-16340-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BALL SCREW HOUSING ASSY
1WG-16304-00-00
|
$118.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, SET
90113-08021-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, SPECIAL SHAPE
90179-08179-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPRING, TENSION
90506-11488-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, PAN HEAD
90157-05065-00
Superseded by 98517-05010-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
HOOK, SPRING
132-16346-00-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
COLLAR
90387-212R3-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLATE, THRUST 2
1WG-16164-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPACER 1
1WG-16181-00-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING
93310-345R8-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
