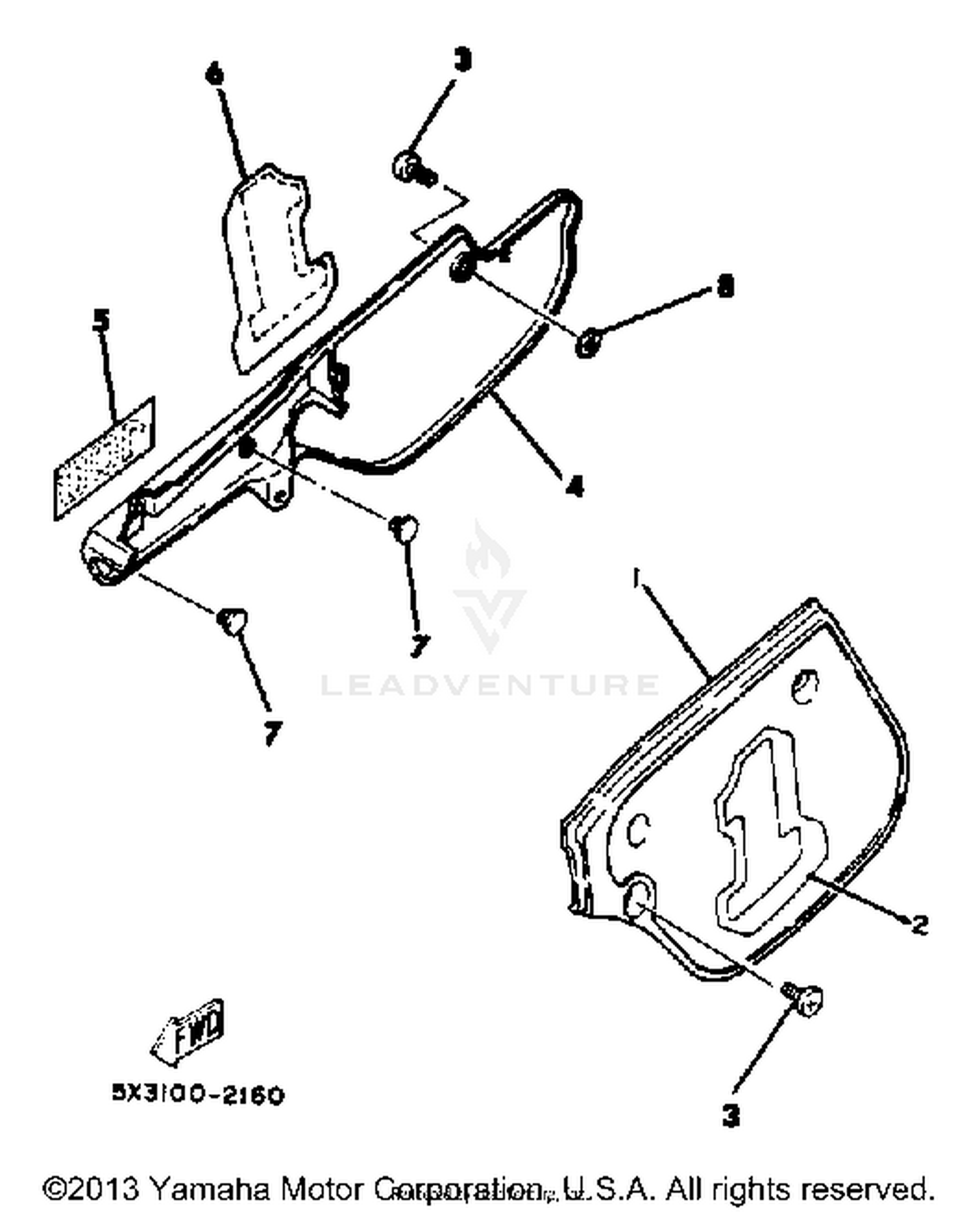

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE 1
5X4-21711-00-98
|
$76.99 | ||
|
Unavailable |
|||
|
#2
EMBLEM 2
3R2-21782-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#3
SCREW,WITH WASHER
90159-06074-00
|
|||
|
Unavailable |
|||
|
#4
COVER, SIDE 2
5X4-21721-00-98
|
$76.99 | ||
|
Unavailable |
|||
|
#5
EMBLEM
5X3-21737-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
EMBLEM 2
3R2-21782-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#7
DAMPER, LOCATING 1
22W-24181-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLAIN
92990-08200-00
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
