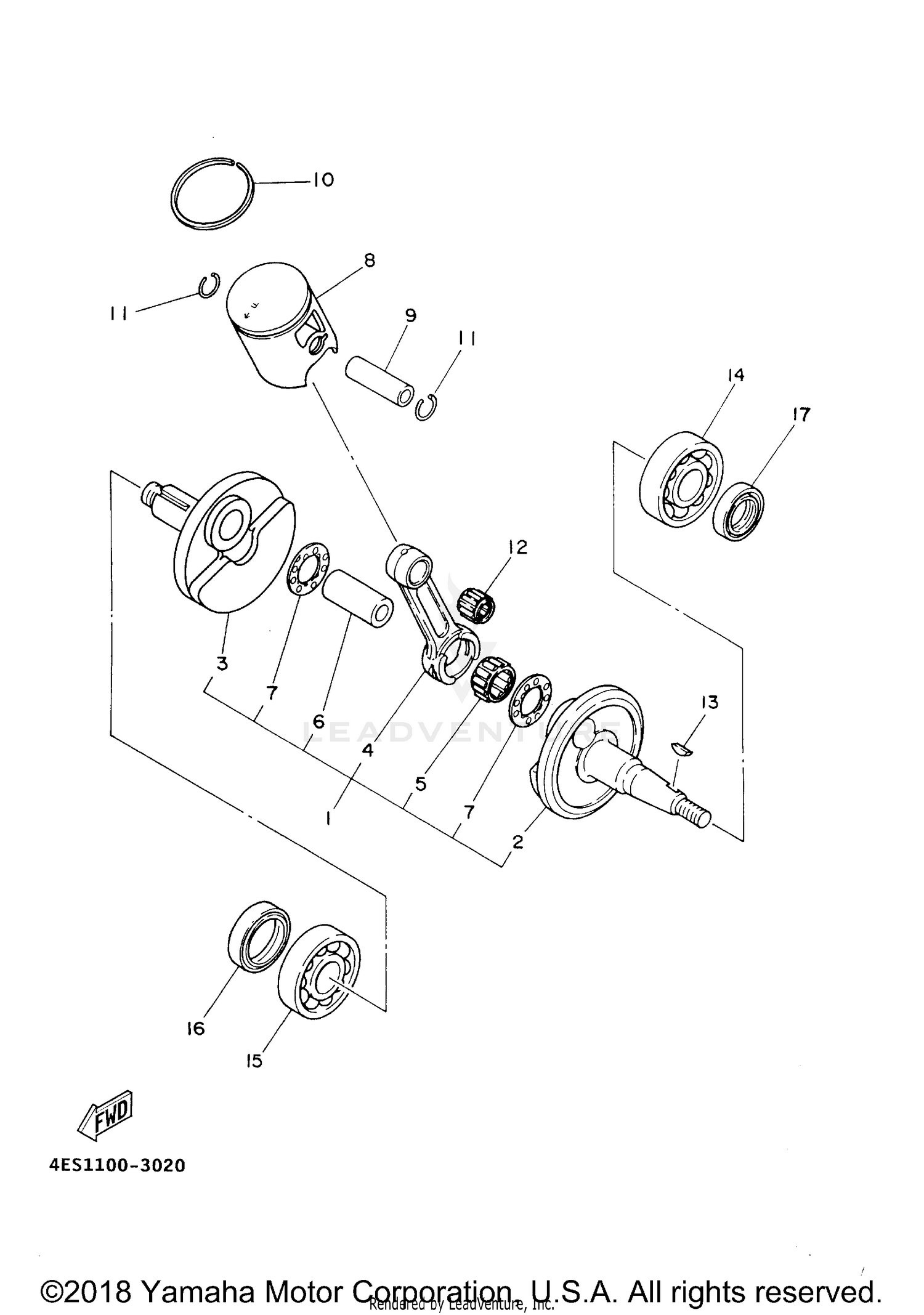

2006 Yamaha YZ 85 CRANKSHAFT PISTON OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSY
5PA-11400-00-00
|
$292.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CRANK 1
5PA-11412-00-00
|
$143.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CRANK 2
5PA-11422-00-00
|
$142.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
ROD, CONNECTING
4ES-11651-10-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93310-420B1-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, CRANK 1
2RA-11681-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
90209-20159-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
PISTON (STD)
5PA-11631-00-D0
Superseded by 5PA-11631-10-D0
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PISTON (STD)
5PA-11631-00-C0
Superseded by 5PA-11631-10-C0
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PISTON (STD)
5PA-11631-00-B0
Superseded by 5PA-11631-10-B0
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PISTON (STD)
5PA-11631-00-A0
Superseded by 5PA-11631-10-A0
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, PISTON
4ES-11633-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
RING, PISTON
5PA-11611-00-00
Superseded by 5PA-11611-01-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CIRCLIP
93450-16115-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BEARING
93310-21417-00
|
$24.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
KEY, WOODRUFF
90280-03017-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BEARING
93306-20438-00
Superseded by 93306-20468-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING (B6304C3)
93306-30421-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
OIL SEAL
93102-28009-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL SEAL
93102-20447-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
