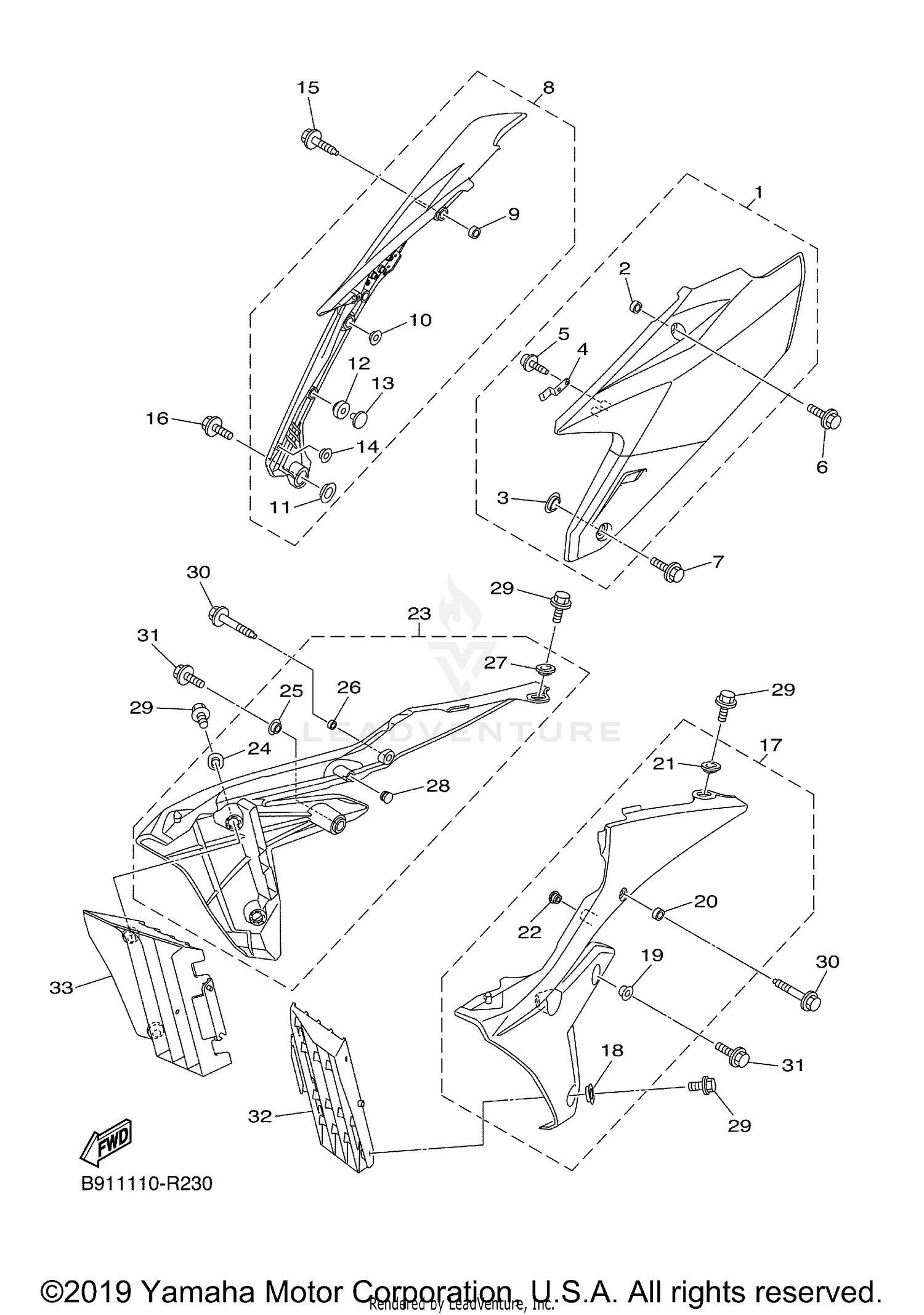

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SIDE COVER ASSY 1
1SL-21710-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR
90387-08057-00
|
$8.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
COLLAR
5TA-21749-00-00
|
$11.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
HOOK
1SL-2176M-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, TAPPING
97702-40012-00
Superseded by 97707-40012-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
90105-08230-00
|
$4.21 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BOLT, WITH WASHER
90119-06096-00
|
$3.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
SIDE COVER ASSY 2
1SL-21720-10-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR
90387-08057-00
|
$8.99 | ||
|
Unavailable |
|||
|
#10
COLLAR
5BE-21749-00-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
COLLAR
5TA-21749-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#12
GROMMET
1SL-21719-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER
1DX-21746-01-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR
90387-06M31-00
|
$5.25 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
90105-08230-00
|
$4.21 | ||
|
Unavailable |
|||
|
#16
BOLT, WITH WASHER
90119-06096-00
|
$3.90 | ||
|
Unavailable |
|||
|
#17
SIDE COVER ASSY 3 (WO/GRAPHIC)
B91-21730-00-00
|
$32.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
SIDE COVER INSERT ASSY. 3
B91-217R0-80-00
|
$383.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR
17D-21749-00-00
|
$16.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
COLLAR
90387-11009-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
COLLAR
90387-06372-00
Superseded by 90387-06106-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
COLLAR
1SL-21748-00-00
|
$11.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
GROMMET
90480-10068-00
|
$7.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
SIDE COVER ASSY 4 (WO/GRAPHIC)
B91-21740-00-00
|
$32.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
SIDE COVER INSERT ASSY. 4
B91-217S0-80-00
|
$295.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR
17D-21749-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#25
COLLAR
90387-11009-00
|
$6.99 | ||
|
Unavailable |
|||
|
#26
COLLAR
90387-06372-00
Superseded by 90387-06106-00
|
$6.99 | ||
|
Unavailable |
|||
|
#27
COLLAR
1SL-21748-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#28
GROMMET
90480-10068-00
|
$7.99 | ||
|
Unavailable |
|||
|
#29
BOLT, FLANGE
90105-06064-00
|
$3.74 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE
90105-06179-00
|
$4.52 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE
90105-06203-00
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#32
PANEL 1
1SL-2172A-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
PANEL 2
1SL-2172F-00-00
|
$21.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
