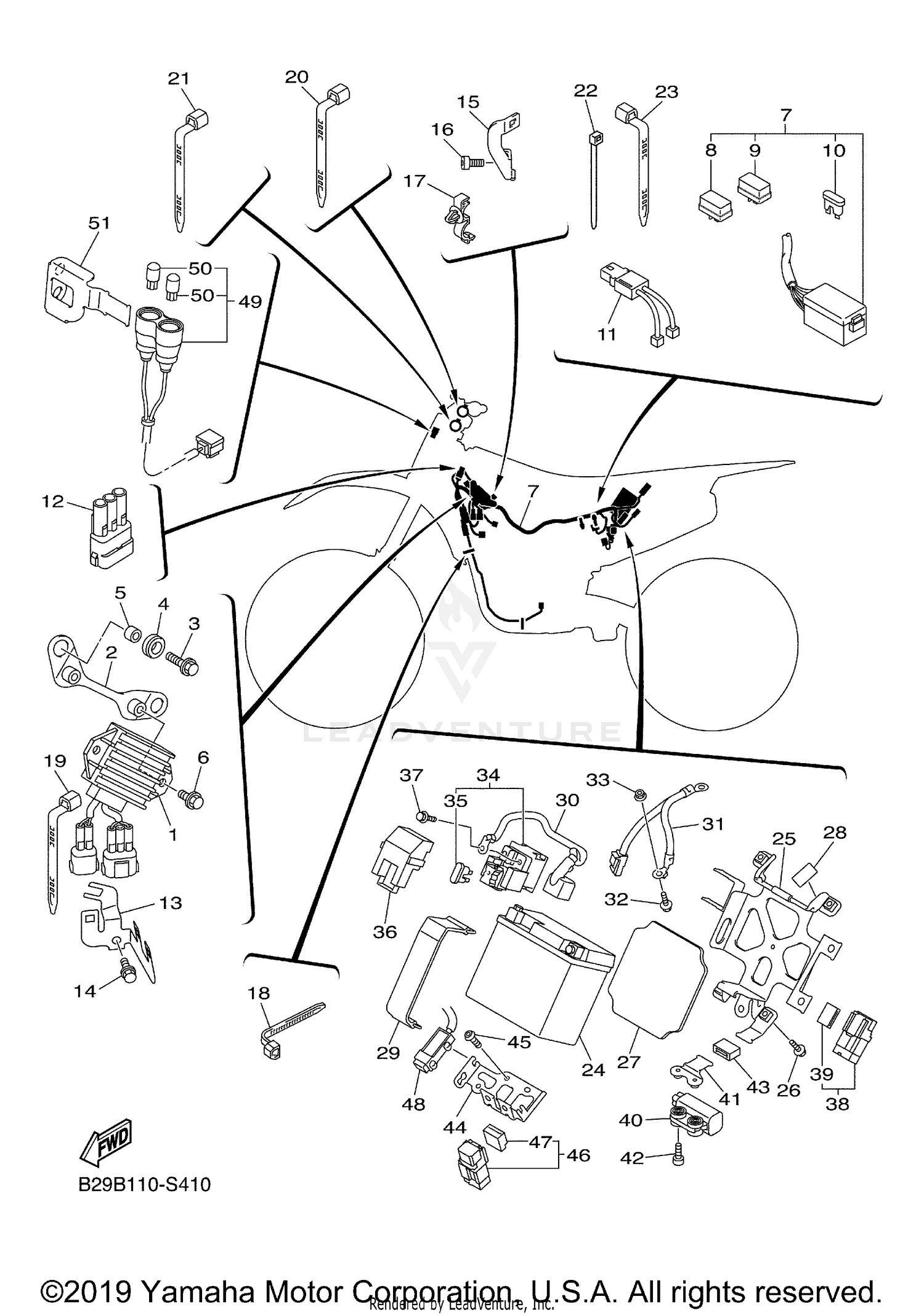

Electrical 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RECTIFIER & REGULATOR ASSY
2GB-81960-00-00
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET, REGULATOR
1SL-21287-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
90105-06203-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
GROMMET
90480-13025-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR
90387-066J9-00
Superseded by 90387-07573-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
90105-06064-00
|
$3.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
WIRE HARNESS ASSY
B29-82590-20-00
|
$343.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
DIODE ASSY
3WP-81980-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
DIODE ASSY
4WA-81980-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
FUSE - 5 A - BLADE (
5JJ-82151-90-00
Superseded by 67F-82151-20-00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
WIRE, SUB LEAD
1SL-82309-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CONNECTOR
33D-82378-00-00
|
$16.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
PLATE
2GC-82388-10-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
90105-06110-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE 2
1SL-82389-00-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
91380-06012-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP
90464-17003-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP
90465-10098-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP
90464-13073-00
Superseded by 90464-15195-00
|
$4.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
CLAMP
90464-13077-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
CLAMP
90464-13073-00
Superseded by 90464-15195-00
|
$4.15 | ||
|
Unavailable |
|||
|
#22
BAND
1UA-82591-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#23
BAND
90464-32060-00
Superseded by 1UA-82591-00-00
|
$4.60 | ||
|
Unavailable |
|||
|
#24
BATTERY ASSY (YTZ7S(F))
5TJ-82100-01-00
|
$219.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BRACKET, BATTERY
2GB-82128-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, WITH WASHER
90119-06133-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#27
DAMPER
2GB-82176-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
PROTECTOR
2GC-21652-00-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#29
BAND, BATTERY
8CY-82131-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
WIRE, PLUS LEAD
2GC-82115-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
WIRE, MINUS LEAD
2GC-82116-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE
90105-06064-00
|
$3.60 | ||
|
Unavailable |
|||
|
#33
NUT, WITH WASHER
95702-06500-00
|
$2.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
STARTER RELAY ASSY (RC19-102B)
2GB-81940-00-00
|
$49.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
FUSE (15A-BLUE)
36Y-82151-00-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#36
COVER, LEAD WIRE
5SL-82119-10-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, FLANGE
95022-06008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
RELAY ASSY (1ST-00)
1ST-81950-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
HOLDER, RELAY
5JJ-81952-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
SENSOR, LEAN ANGLE
5VU-82576-01-00
Superseded by 5VU-82576-03-00
|
$93.99 | ||
|
Unavailable |
|||
|
#41
BRACKET
2GB-85542-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT, HEXAGON SOCKET HEAD
90110-04005-00
Superseded by 91312-04020-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#43
DAMPER
2GB-83513-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
PLATE, HOLDER
2GB-8252H-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
SCREW, TRUSS HEAD TAPPING
97702-50014-00
Superseded by 97707-50014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
RELAY ASSY (1TP-00)
1TP-81950-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
HOLDER, RELAY
5EA-81952-00-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#48
RESISTOR ASSY
2GB-82718-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
PILOT LIGHT ASSY
B29-83530-00-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
BULB (12V-1.7W)
5GH-83516-00-00
Superseded by 3FV-83517-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#51
BRACKET, INDICATOR LIGHT 1
B29-83574-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
