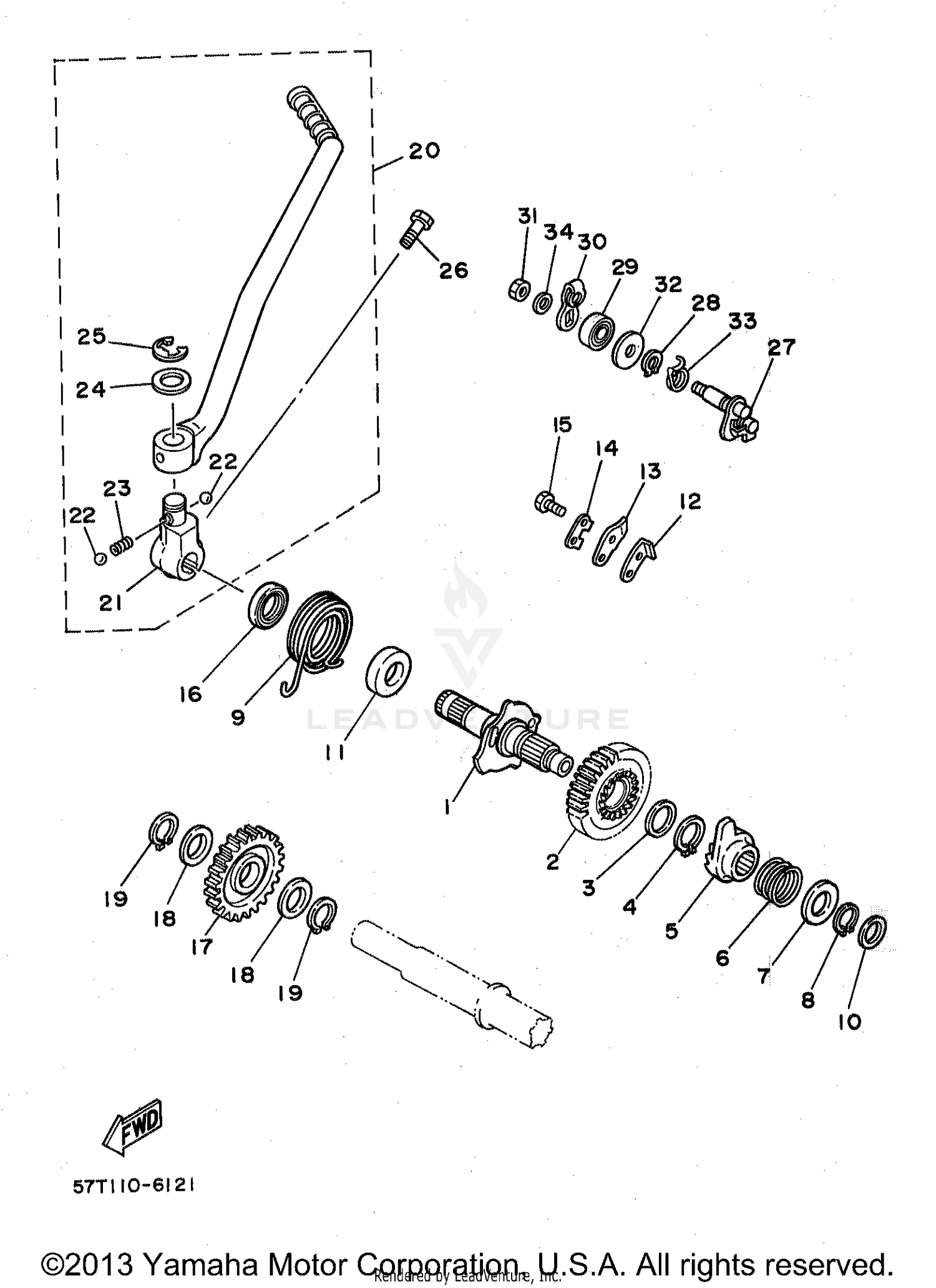

1998 Yamaha XT 350 STARTER OEM Parts Diagram

Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Exhaust
+
Handlebars & Controls
+
Seat
+
Item MSRP Qty
#1 KICK AXLE ASSEMBLY
30X-15660-01-00
$106.99
Available: Ships in 7-12 days.
Add to View Price
#2 GEAR, KICK
30X-15641-01-00
$68.99
Available: Ships in 7-12 days.
Add to View Price
#3 WASHER, PLATE (T=0.5)
90201-20685-00
$4.90
Available: Ships in 7-12 days.
Add to View Price
#4 CIRCLIP
93410-20038-00
$3.30
Available: Ships in 7-12 days.
Add to View Price
#5 WHEEL, RATCHET
3Y1-15671-00-00
$55.99
Available: Ships in 7-12 days.
Add to View Price
#6 SPRING, COMPRESSION
90501-16107-00
$4.90
Available: Ships in 7-12 days.
Add to View Price
#7 WASHER, PLATE
90201-155K6-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#8 CIRCLIP
99009-15400-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#9 SPRING, TORSION
90508-32432-00
Superseded by 90508-324B5-00
$10.99
Available: Ships in 7-12 days.
Add to View Price
#10 WASHER, PLATE (T=1.0)
90201-15701-00
$6.49
In Stock: Ready to ship.
Add to View Price
#11 SPACER
90560-17239-00
$7.49
Available: Ships in 7-12 days.
Add to View Price
#12 STOPPER
2K7-15668-00-00
Superseded by 2NX-15668-00-00
$19.49
Available: Ships in 7-12 days.
Add to View Price
#13 GUIDE, RATCHET WHEEL
214-15674-00-00
Superseded by 2NX-15674-00-00
$8.49
Available: Ships in 7-12 days.
Add to View Price
#14 WASHER, LOCK
214-15686-00-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#15 BOLT
97027-06016-00
Superseded by 97017-06016-00
$6.49
In Stock: Ready to ship.
Add to View Price
#16 OIL SEAL
93102-17263-00
$8.49
In Stock: Ready to ship.
Add to View Price
#17 GEAR, KICK IDLE (27T)
30X-15651-01-00
$57.99
Unavailable
#18 WASHER, PLATE
90201-177G4-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#19 CIRCLIP
99009-17400-00
$3.30
Available: Ships in 7-12 days.
Add to View Price
#20 KICK CRANK ASSEMBLY
30X-15620-01-00
$186.99
Available: Ships in 7-12 days.
Add to View Price
#21 BOSS, KICK CRANK
30X-15621-01-00
$50.99
Available: Ships in 7-12 days.
Add to View Price
#22 BALL
93507-32009-00
Superseded by 93507-32031-00
$6.49
In Stock: Ready to ship.
Add to View Price
#23 SPRING, COMPRESSION
90501-12081-00
$6.49
In Stock: Ready to ship.
Add to View Price
#24 WASHER, PLATE
90201-153A1-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#25 CIRCLIP
99006-10600-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#26 BOLT
97017-08030-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#27 DECOMP. LEVER ASSEMBLY
30X-1561A-00-00
$14.49
Unavailable
#28 CIRCLIP
99009-10400-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#29 OIL SEAL (SD 10-21-5 HS)
93102-10207-00
$9.99
Available: Ships in 7-12 days.
Add to View Price
#30 LEVER, CABLE
30X-1561G-00-00
$13.49
Unavailable
#31 NUT
95307-06800-00
$3.30
Available: Ships in 7-12 days.
Add to View Price
#32 WASHER, PLATE
90201-10614-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#33 SPRING, TORSION
90508-14630-00
$1.50
Unavailable
#34 WASHER, PLATE
92907-06600-00
$2.20
In Stock: Ready to ship.
Add to View Price
