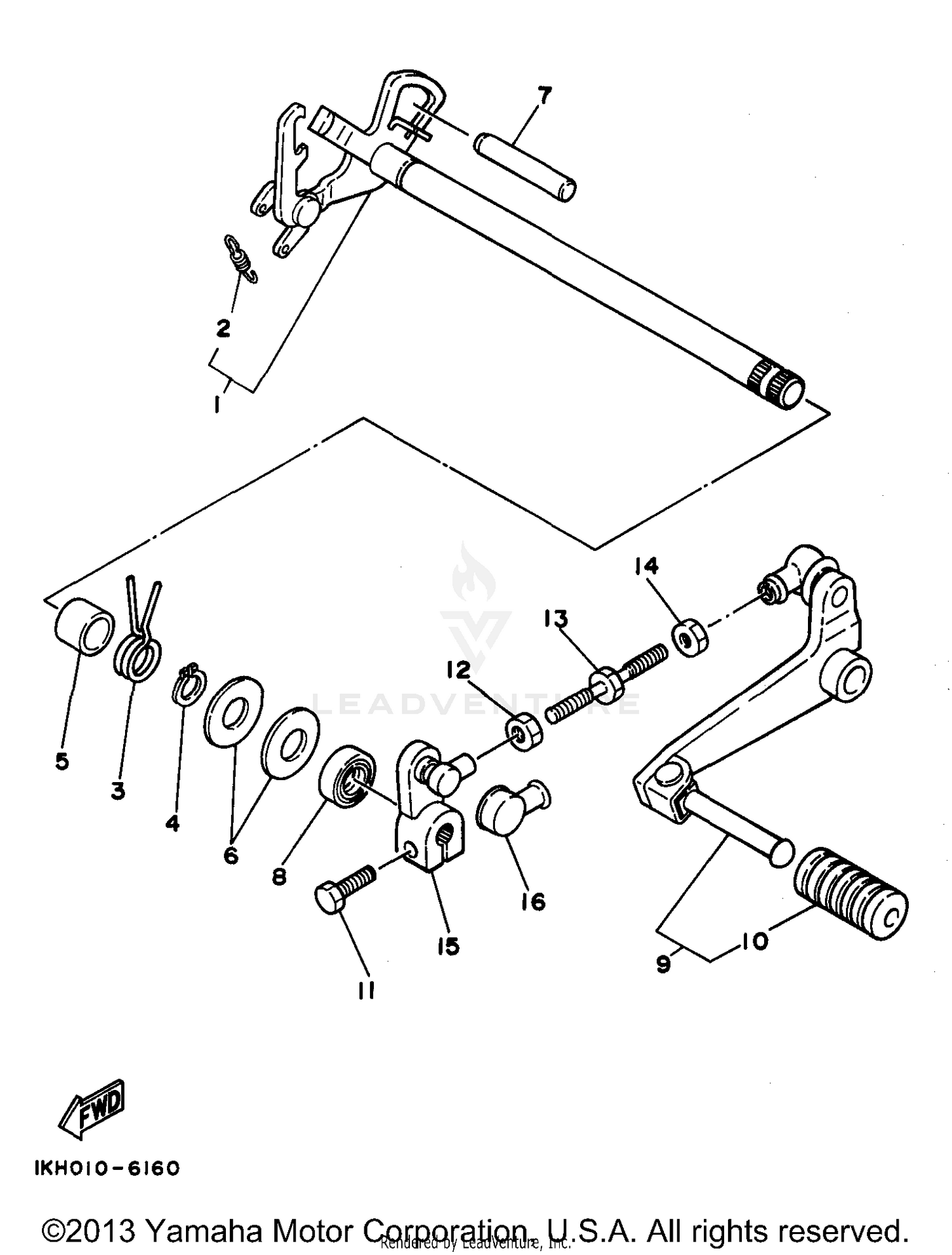

1993 Yamaha XT 225 SHIFT SHAFT OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHIFT LEVER ASSY
5H0-18120-02-00
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING, TENSION
90506-08227-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, TORSION
90508-26705-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
99006-10600-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
COLLAR
90387-124F4-00
Superseded by 90387-12033-00
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-12588-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, DOWEL
93608-50158-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
OIL SEAL
93102-12321-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SHIFT PEDAL ASSY
1KH-18110-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, SHIFT PEDAL
1W6-18113-00-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
97016-06020-00
Superseded by 97017-06020-00
|
$3.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
NUT
95316-06700-00
Superseded by 95317-06700-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
ROD, SHIFT
16G-18115-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT (COUNTER CLOCKWISE)
90170-06228-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
ARM, SHIFT
1KH-18112-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER, DUST
2H9-18154-00-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
