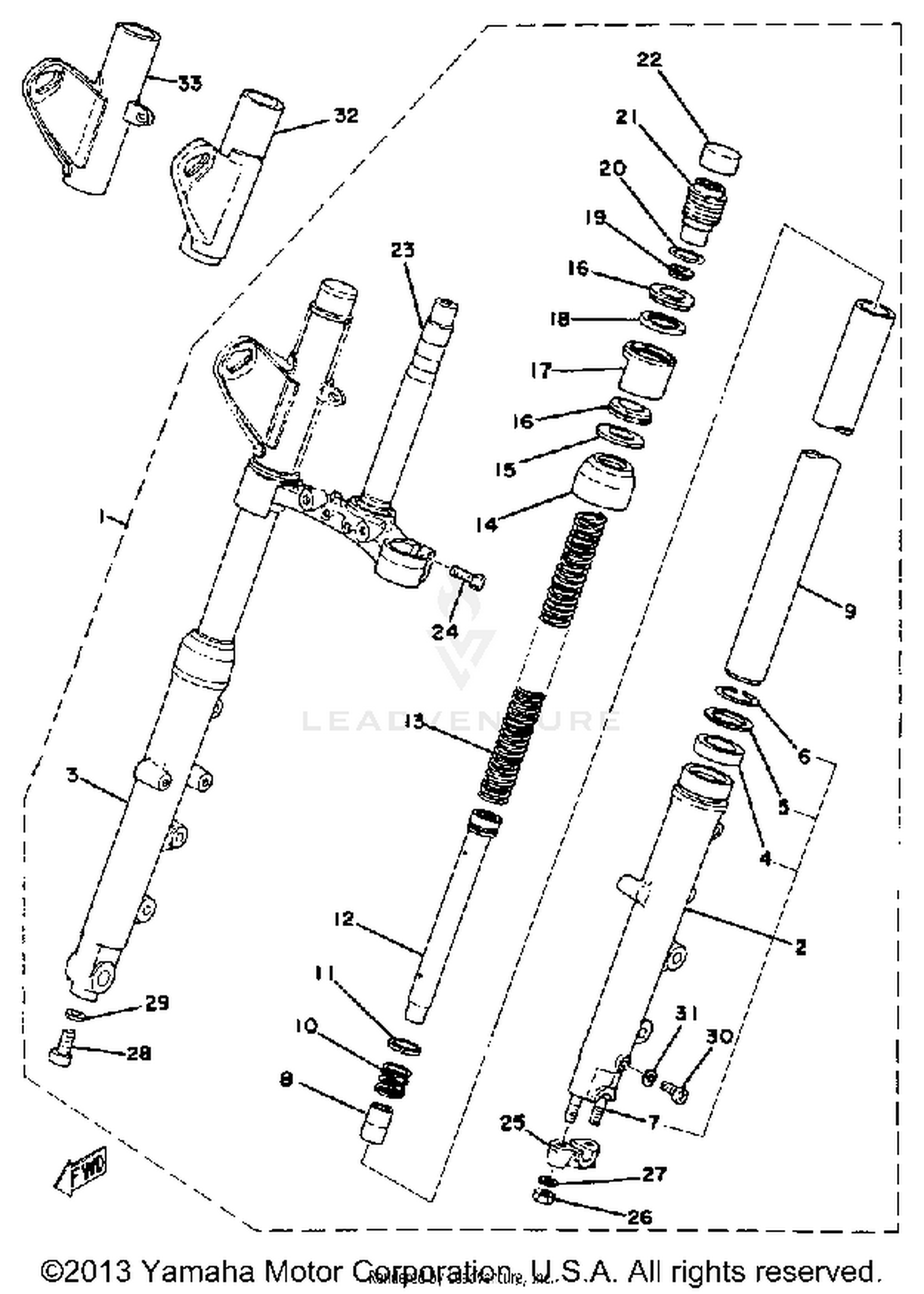

Front Fork Xs650e E006501- F Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY
3L1-23101-00-00
|
$410.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 1
2F0-23126-00-00
|
$389.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
TUBE, OUTER 2
2F0-23136-00-00
|
$365.99 | ||
|
Unavailable |
|||
|
#4
OIL SEAL
1T3-23145-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, OIL SEAL
341-23146-50-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLIP, OIL SEAL
341-23156-50-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, STUD
90116-08261-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPINDLE, TAPER
1W1-23173-L0-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
INNER TUBE 1
2F0-23110-00-00
|
$200.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, REBOUND
2F0-23151-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#11
RING, PISTON FRTFRK
2F0-23157-00-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
CYLINDER, FRTFRK
2F0-23170-00-00
|
$42.16 | ||
|
Unavailable |
|||
|
#13
SPRING, FRONT FORK
2F0-23141-10-00
|
$34.82 | ||
|
Unavailable |
|||
|
#
SPRING, FRONT FORK
2F0-23141-00-00
|
$32.64 | ||
|
Unavailable |
|||
|
#14
SEAL, DUST
1T3-23144-50-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, OIL SEAL
1T3-23146-50-00
|
$2.37 | ||
|
Unavailable |
|||
|
#16
GASKET
1T3-23163-51-00
|
$5.44 | ||
|
Unavailable |
|||
|
#17
COVER, OUTER 1
1T3-23122-51-00
|
$9.48 | ||
|
Unavailable |
|||
|
#18
GUIDE, COVER LOWER
1T3-23116-51-00
|
$6.86 | ||
|
Unavailable |
|||
|
#19
GASKET
2F0-23114-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#
WASHER, SPRING UPR
2F0-23149-00-00
|
$4.55 | ||
|
Unavailable |
|||
|
#21
BOLT, CAP
2F0-23111-00-00
|
$25.60 | ||
|
Unavailable |
|||
|
#22
CAP, FRONT FORK
2F0-23168-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#23
UNDER BRACKET
1U3-23340-30-33
|
$295.99 | ||
|
Unavailable |
|||
|
#24
BOLT, WITH WASHER
18G-23128-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOLDER, AXLE
341-23167-50-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, SELF-LOCKING
90185-08089-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
GASKET
509-23158-L0-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
COVER, UPPER 1
1T3-23121-51-93
|
$68.99 | ||
|
Unavailable |
|||
|
#33
COVER, UPPER 2
1T3-23131-51-93
|
$68.99 | ||
|
Unavailable |
|||
