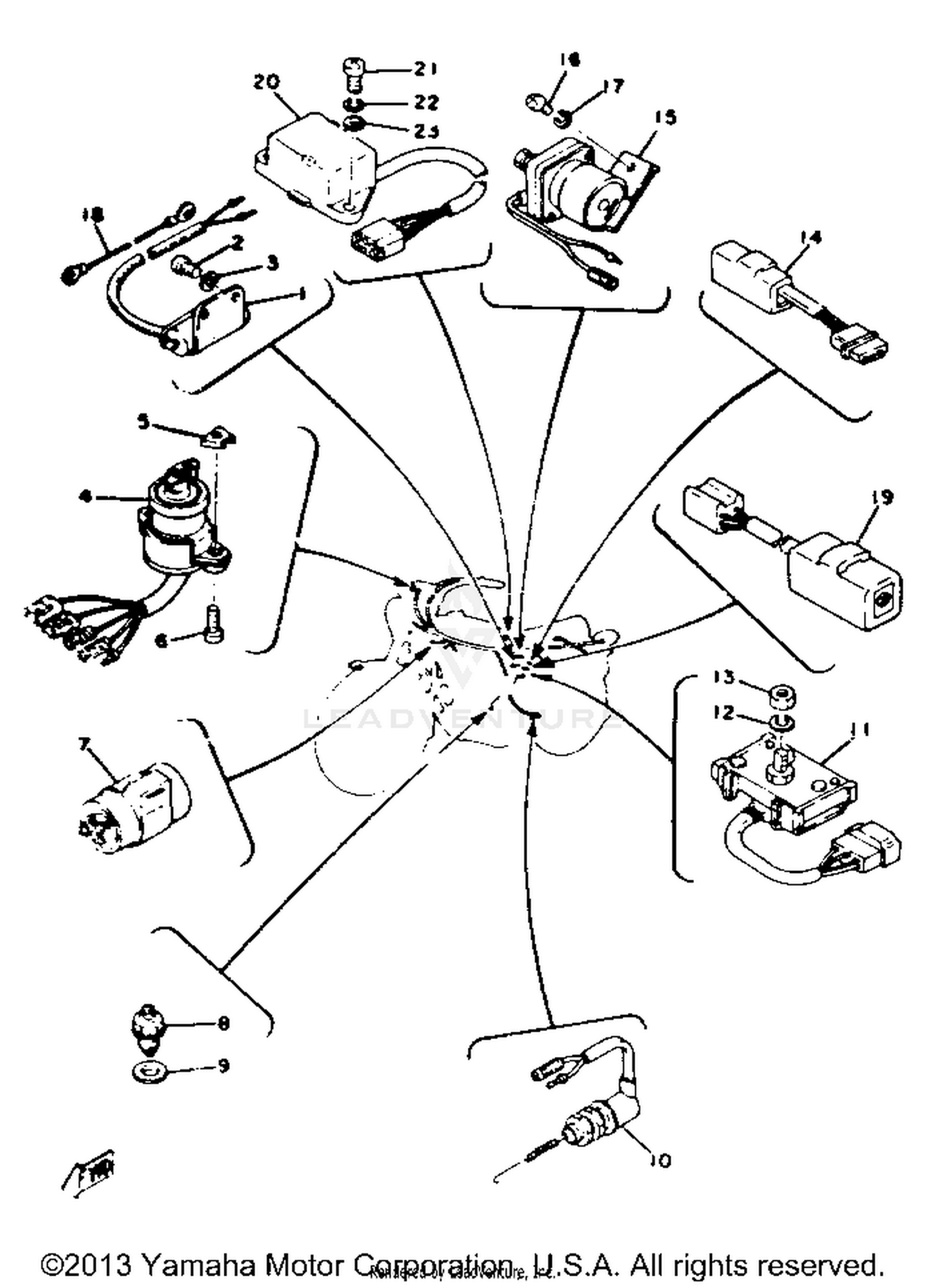

Electrical 2 Xs650 E006501- - F Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CONDENSER 1
256-81625-10-00
|
$63.99 | ||
|
Unavailable |
|||
|
#2
SCREW, PAN HEAD
98580-06008-00
Superseded by 97885-06008-00
|
$1.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
MAIN SWITCH ASSEMBLY
2F0-82508-50-00
|
$109.99 | ||
|
Unavailable |
|||
|
#5
WASHER, SPECIAL
533-82517-00-00
|
$4.40 | ||
|
Unavailable |
|||
|
#6
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#7
FLASHER RELAY ASSEMBLYASSEMBLY
2F0-83350-70-00
Superseded by 2NV-83350-00-00
|
$182.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
REVERSE SWITCH ASSEMBLY
136-82540-00-00
Superseded by 136-82540-03-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
37R-82543-00-00
Superseded by 90201-12790-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
STOP SWITCH ASSEMBLY
533-82530-02-00
|
$43.99 | ||
|
Unavailable |
|||
|
#11
RECTIFIER ASSEMBLY
447-81970-10-00
|
$407.99 | ||
|
Unavailable |
|||
|
#12
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
CHECKER, LIGHT
371-84708-02-00
|
$98.99 | ||
|
Unavailable |
|||
|
#15
STARTER SWITCH ASSEMBLY
447-81940-10-00
|
$190.99 | ||
|
Unavailable |
|||
|
#16
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#18
WIRE, LEAD
256-81615-00-00
|
$6.44 | ||
|
Unavailable |
|||
|
#19
FLASHER CANCELING UNIT
1A0-83395-03-00
|
$128.99 | ||
|
Unavailable |
|||
|
#20
RSRV LIGHTING UNIT ASSEMBLY
1T3-84308-00-00
|
$135.99 | ||
|
Unavailable |
|||
|
#21
SCREW, PAN HEAD
98580-06018-00
Superseded by 97880-06018-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#23
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
