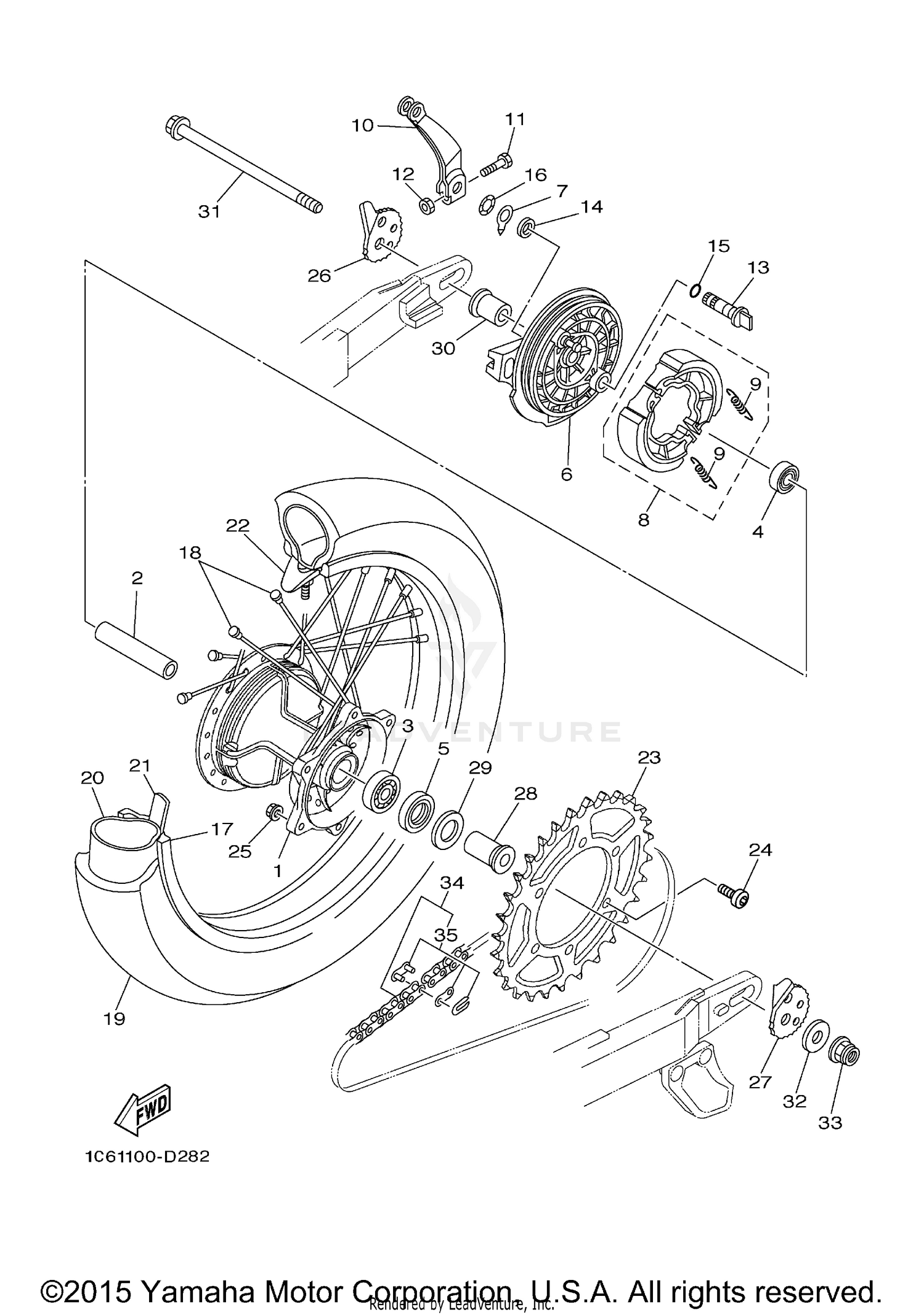

2014 Yamaha TT-R 230 REAR WHEEL OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#1 HUB, REAR 1C6-F5311-00-35	$235.99
Available: Ships in 7-12 days. Add to View Price
#2 SPACER 5L9-F5317-00-00 Superseded by 90560-15313-00	$35.99
Available: Ships in 7-12 days. Add to View Price
#3 BEARING 93306-302X7-00	$28.99
Available: Ships in 7-12 days. Add to View Price
#4 BEARING 93306-252Y2-00	$24.99
Available: Ships in 7-12 days. Add to View Price
#5 OIL SEAL 93106-26005-00	$6.45
Available: Ships in 7-12 days. Add to View Price
#6 PLATE, BRAKE SHOE 5RM-F5321-01-35
Unavailable
#7 PLATE, INDICATOR 5HH-F533A-00-00	$12.99
Available: Ships in 7-12 days. Add to View Price
#8 BRAKE SHOE KIT 5HH-F5330-00-00 Superseded by 3FA-W253A-00-00	$21.99
Available: Ships in 7-12 days. Add to View Price
#9 SPRING, TENSION 90506-15260-00	$6.99
Available: Ships in 7-12 days. Add to View Price
#10 LEVER, CAMSHAFT 5RM-F5355-00-00	$77.99
Available: Ships in 7-12 days. Add to View Price
#11 BOLT,HEXAGON 90101-06W00-00 Superseded by 97017-06030-00	$3.05
Available: Ships in 7-12 days. Add to View Price
#12 NUT 9530M-06600-00 Superseded by 95317-06600-00	$3.05
Available: Ships in 7-12 days. Add to View Price
#13 CAMSHAFT 5RM-F5351-00-00	$43.99
Available: Ships in 7-12 days. Add to View Price
#14 OIL SEAL 93109-14021-00	$11.99
Available: Ships in 7-12 days. Add to View Price
#15 O-RING 93210-14104-00 Superseded by 93210-14579-00	$6.99
Available: Ships in 7-12 days. Add to View Price
#16 WASHER, WAVE 90206-14093-00	$6.99
Available: Ships in 7-12 days. Add to View Price
#17 RIM (1.85-18) 94418-18016-00	$332.99
Available: Ships in 7-12 days. Add to View Price
#18 SPOKE SET, REAR 1C6-F5304-00-00	$102.99
Available: Ships in 7-12 days. Add to View Price
#19 TIRE (100/100-18 MT230) 94110-18801-00	$395.99
Available: Ships in 7-12 days. Add to View Price
#20 TUBE (100/100-18) 94210-18800-00 Superseded by 94210-18W50-00	$37.99
Available: Ships in 7-12 days. Add to View Price
#21 BAND, RIM (2.15-18) 94325-18801-00	$4.20
Available: Ships in 7-12 days. Add to View Price
#22 SPACER, BEAD 4XM-25394-00-00	$59.99
Available: Ships in 7-12 days. Add to View Price
#23 SPROCKET, DRIVEN (49T) 1C6-F5449-22-00 Superseded by 1C6-25449-20-00	$49.99
Available: Ships in 7-12 days. Add to View Price
#24 BOLT, HEX. SOCKET BUTTON 90111-08826-00	$2.70
Available: Ships in 7-12 days. Add to View Price
#25 NUT, SELF-LOCKING 95607-08200-00 Superseded by 90185-08169-00	$6.99
Available: Ships in 7-12 days. Add to View Price
#26 PULLER, CHAIN 2 5RM-F5389-00-00	$8.49
Available: Ships in 7-12 days. Add to View Price
#27 PULLER, CHAIN 2 1C6-F5389-00-00	$10.49
Available: Ships in 7-12 days. Add to View Price
#28 COLLAR 90387-15W34-00	$30.99
Available: Ships in 7-12 days. Add to View Price
#29 COVER, HUB DUST 4AN-F5367-00-00	$3.15
Available: Ships in 7-12 days. Add to View Price
#30 COLLAR 90387-15W35-00	$17.49
Available: Ships in 7-12 days. Add to View Price
#31 AXLE, WHEEL 1C6-F5381-00-00	$50.99
Available: Ships in 7-12 days. Add to View Price
#32 WASHER, PLATE 90201-15797-00	$6.99
Available: Ships in 7-12 days. Add to View Price
#33 NUT, SELF-LOCKING 90185-14112-00	$8.99
Available: Ships in 7-12 days. Add to View Price
#34 CHAIN (DID520V2-105LE) 9Y581-47105-00	$155.99
Available: Ships in 7-12 days. Add to View Price
#35 JOINT, CHAIN (D.I.D.520V2) 94681-47011-00	$6.99
Available: Ships in 7-12 days. Add to View Price
