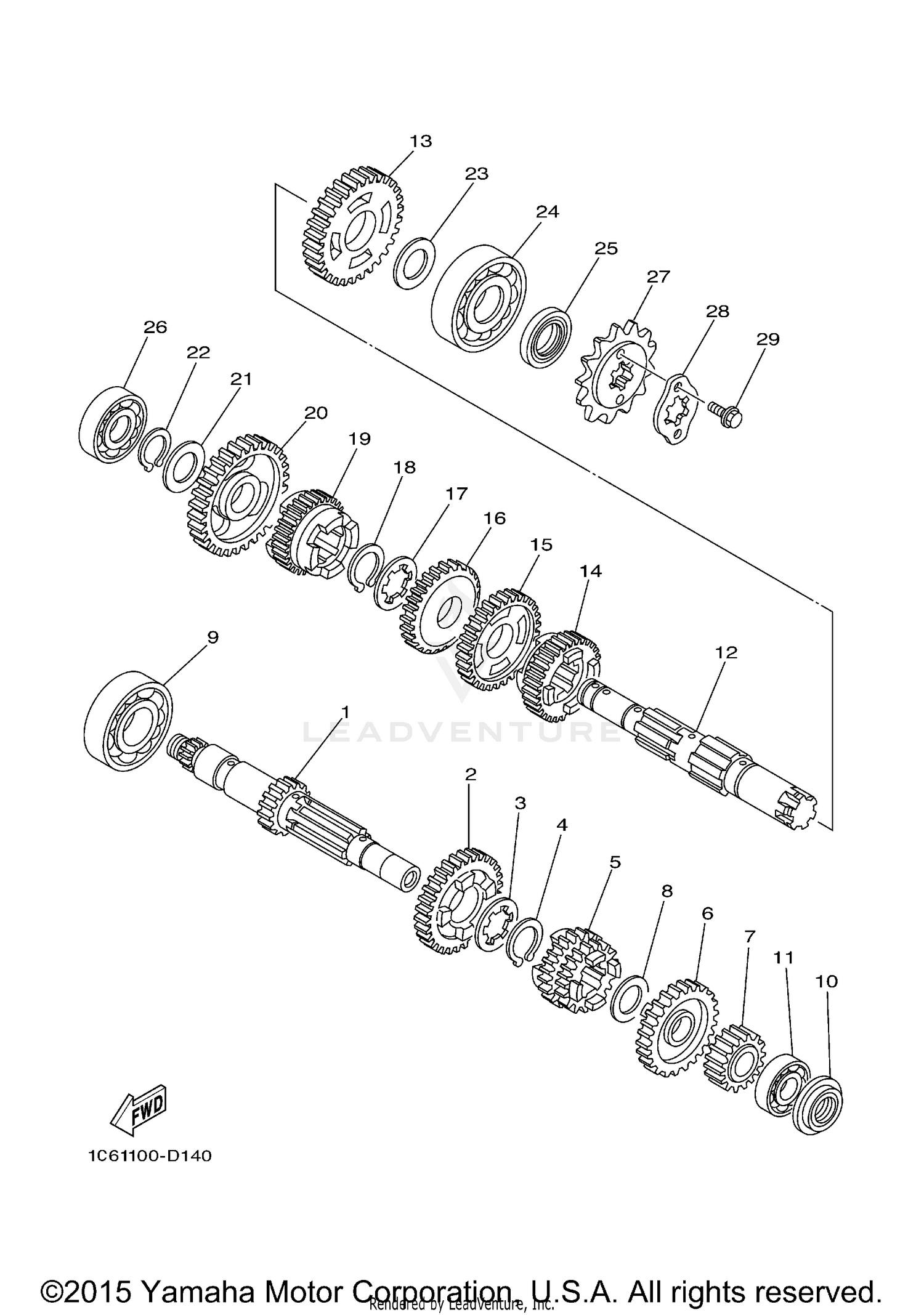

2015 Yamaha TT-R 230 TRANSMISSION OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, MAIN (13T)
1C6-E7411-00-00
|
$138.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
GEAR, 6TH PINION (29T)
5MP-17161-00-00
|
$95.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
WASHER
90209-17285-00
|
$5.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
CIRCLIP
93410-20038-00
|
$3.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
GEAR, 3RD/4TH PINION (21T/24T)
1KH-17131-01-00
|
$119.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
GEAR, 5TH PINION (27T)
5MP-17151-00-00
|
$92.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
GEAR, 2ND PINION (18T)
17T-17121-00-00
|
$65.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-164K2-00
|
$6.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
BEARING (B6204)
93306-20401-00
Superseded by 93306-20461-00
|
$35.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
OIL SEAL
93101-15101-00
|
$8.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
BEARING
93306-20201-00
Superseded by 93306-20211-00
|
$20.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
DRIVE AXLE ASSY
1C6-E7402-00-00
|
$241.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
GEAR, 2ND WHEEL (34T)
17T-17221-01-00
|
$81.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
GEAR, 5TH WHEEL (25T)
5MP-17251-00-00
|
$111.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
GEAR, 3RD WHEEL (30T)
4VW-E7231-01-00
|
$90.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
GEAR, 4TH WHEEL (27T)
17T-17241-03-00
|
$60.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
WASHER
90209-18208-00
|
$5.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
CIRCLIP
93410-22039-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
GEAR, 6TH WHEEL (23T)
5MP-17261-00-00
|
$108.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
GEAR, 1ST WHEEL (38T)
5BT-17211-00-00
|
$66.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-17257-00
|
$5.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
CIRCLIP
99009-17400-00
|
$3.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
WASHER, PLATE
90201-203E7-00
|
$6.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
BEARING
93306-304YP-00
|
$12.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
OIL SEAL
93102-20004-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
BEARING
93306-205XD-00
|
$18.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
SPROCKET, DRIVE (13T)
93832-13164-00
|
$24.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
HOLDER, SPROCKET
4AN-E7456-00-00
Superseded by 5H0-17456-00-00
|
$6.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
BOLT(3JP)
9702M-06010-00
Superseded by 97017-06010-00
|
$3.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
