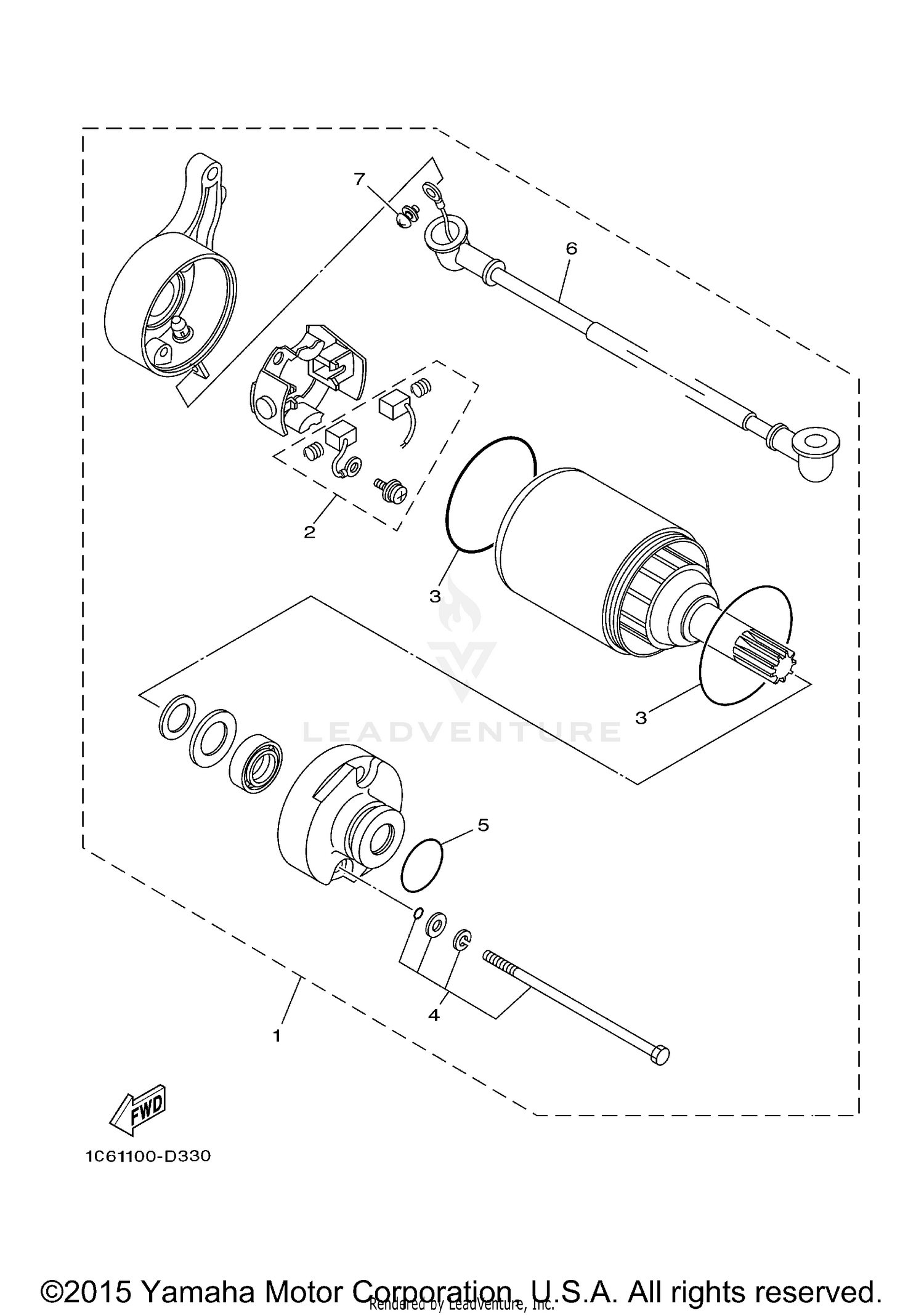

2015 Yamaha TT-R 230 STARTING MOTOR OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STARTING MOTOR ASSY
1C6-H1800-00-00
|
$475.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
BRUSH SET
4FP-H1801-00-00
|
$26.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
O-RING
93210-55669-00
|
$5.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
BOLT 2
4FP-H1828-01-00
Superseded by 4FP-H1828-00-00
|
$6.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
O-RING
93210-25711-00
|
$5.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
CORD COMP.
1C6-H183G-00-00
|
$177.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
SCREW, PAN HEAD
97601-05108-00
Superseded by 98507-05008-00
|
$3.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
