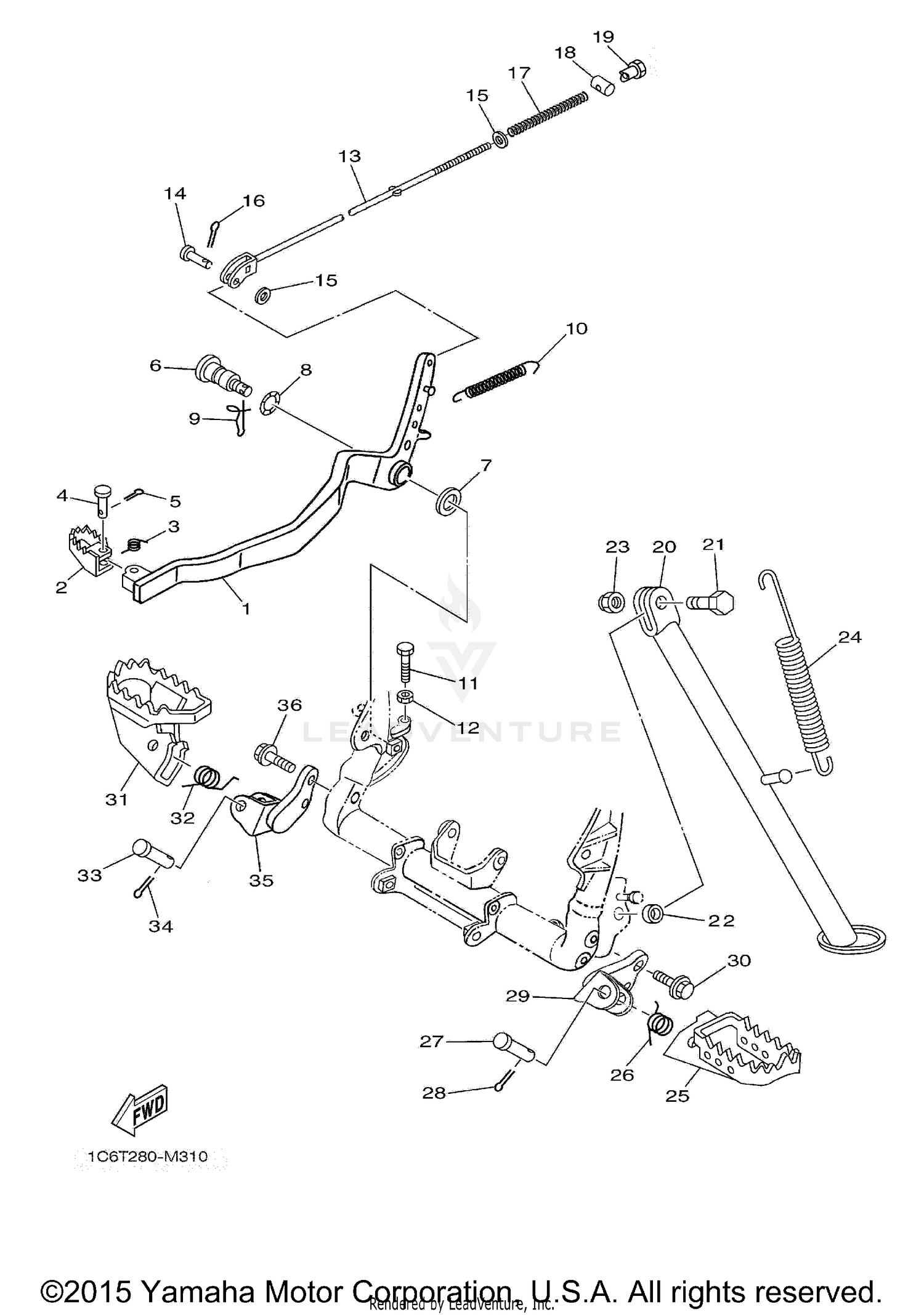

2015 Yamaha TT-R 230 STAND FOOTREST OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#1 PEDAL, BRAKE 1C6-F7211-00-00	$66.99
Available: Ships in 7-12 days. Add to View Price
#2 PEDAL, BRAKE 1B2-F7242-00-00 Superseded by 55V-27242-00-00	$20.99
Available: Ships in 7-12 days. Add to View Price
#3 SPRING, TORSION 90508-14352-00	$6.99
Available: Ships in 7-12 days. Add to View Price
#4 PIN 91701-06022-00	$2.05
Available: Ships in 7-12 days. Add to View Price
#5 PIN. COTTER 91401-20012-00 Superseded by 91490-20015-00	$1.89
In Stock: Ready to ship. Add to View Price
#6 SHAFT 5RM-F7261-00-00 Superseded by 2CC-F7261-00-00	$12.99
Available: Ships in 7-12 days. Add to View Price
#7 WASHER, PLATE 90201-10135-00 Superseded by 90201-105J4-00	$6.99
Available: Ships in 7-12 days. Add to View Price
#8 WASHER, WAVE 90206-14001-00	$6.99
Available: Ships in 7-12 days. Add to View Price
#9 CLIP 90468-20196-00	$2.11
Available: Ships in 7-12 days. Add to View Price
#10 SPRING, TENSION 90506-18804-00	$3.15
Available: Ships in 7-12 days. Add to View Price
#11 BOLT 9700M-06016-00 Superseded by 97017-06016-00	$6.99
In Stock: Ready to ship. Add to View Price
#12 NUT 9530M-06700-00 Superseded by 95317-06700-00	$6.99
Available: Ships in 7-12 days. Add to View Price
#13 ROD, BRAKE 1C6-F7231-00-00	$18.99
Available: Ships in 7-12 days. Add to View Price
#14 PIN 91701-06020-00	$1.20
In Stock: Ready to ship. Add to View Price
#15 WASHER, PLAIN 9290L-06200-00 Superseded by 92990-06200-00	$5.99
In Stock: Ready to ship. Add to View Price
#16 PIN. COTTER 91401-20012-00 Superseded by 91490-20015-00	$1.89
Unavailable
#17 SPRING, COMPRESSION 90501-10802-00	$0.90
In Stock: Ready to ship. Add to View Price
#18 PIN 90249-12800-00 Superseded by 90249-12008-00	$6.99
In Stock: Ready to ship. Add to View Price
#19 NUT 90179-06W21-00	$1.50
Available: Ships in 7-12 days. Add to View Price
#20 STAND, SIDE 1C6-F7311-00-00	$68.99
Available: Ships in 7-12 days. Add to View Price
#21 BOLT 90101-10805-00 Superseded by 90101-10003-00	$6.99
Available: Ships in 7-12 days. Add to View Price
#22 COLLAR 90387-10003-00	$19.49
Available: Ships in 7-12 days. Add to View Price
#23 NUT, SELF-LOCKING 90185-10037-00	$6.99
In Stock: Ready to ship. Add to View Price
#24 SPRING, TENSION 90506-35805-00	$10.49
Available: Ships in 7-12 days. Add to View Price
#25 FOOTREST 1 1B2-F7411-00-00	$29.99
Available: Ships in 7-12 days. Add to View Price
#26 SPRING, TORSION 90508-28777-00	$6.99
Available: Ships in 7-12 days. Add to View Price
#27 PIN, CLEVIS 90240-10117-00	$10.49
In Stock: Ready to ship. Add to View Price
#28 PIN. COTTER 91401-25015-00 Superseded by 91490-25020-00	$3.50
In Stock: Ready to ship. Add to View Price
#29 BRACKET,FOOTREST 1 1C6-F7412-00-00 Superseded by 1C6-F7412-00-33	$29.99
Available: Ships in 7-12 days. Add to View Price
#30 BOLT, FLANGE 9502M-10025-00 Superseded by 95027-10025-00	$6.99
Available: Ships in 7-12 days. Add to View Price
#31 FOOTREST 2 1C6-F7421-00-00	$29.99
Available: Ships in 7-12 days. Add to View Price
#32 SPRING, TORSION 90508-28777-00	$6.99
Unavailable
#33 PIN, CLEVIS 90240-10117-00	$10.49
Unavailable
#34 PIN. COTTER 91401-25015-00 Superseded by 91490-25020-00	$3.50
Unavailable
#35 BRACKET,FOOTREST 2 1C6-F7422-00-00 Superseded by 1C6-F7422-00-33	$49.99
Available: Ships in 7-12 days. Add to View Price
#36 BOLT, FLANGE 9502M-10025-00 Superseded by 95027-10025-00	$6.99
Unavailable
