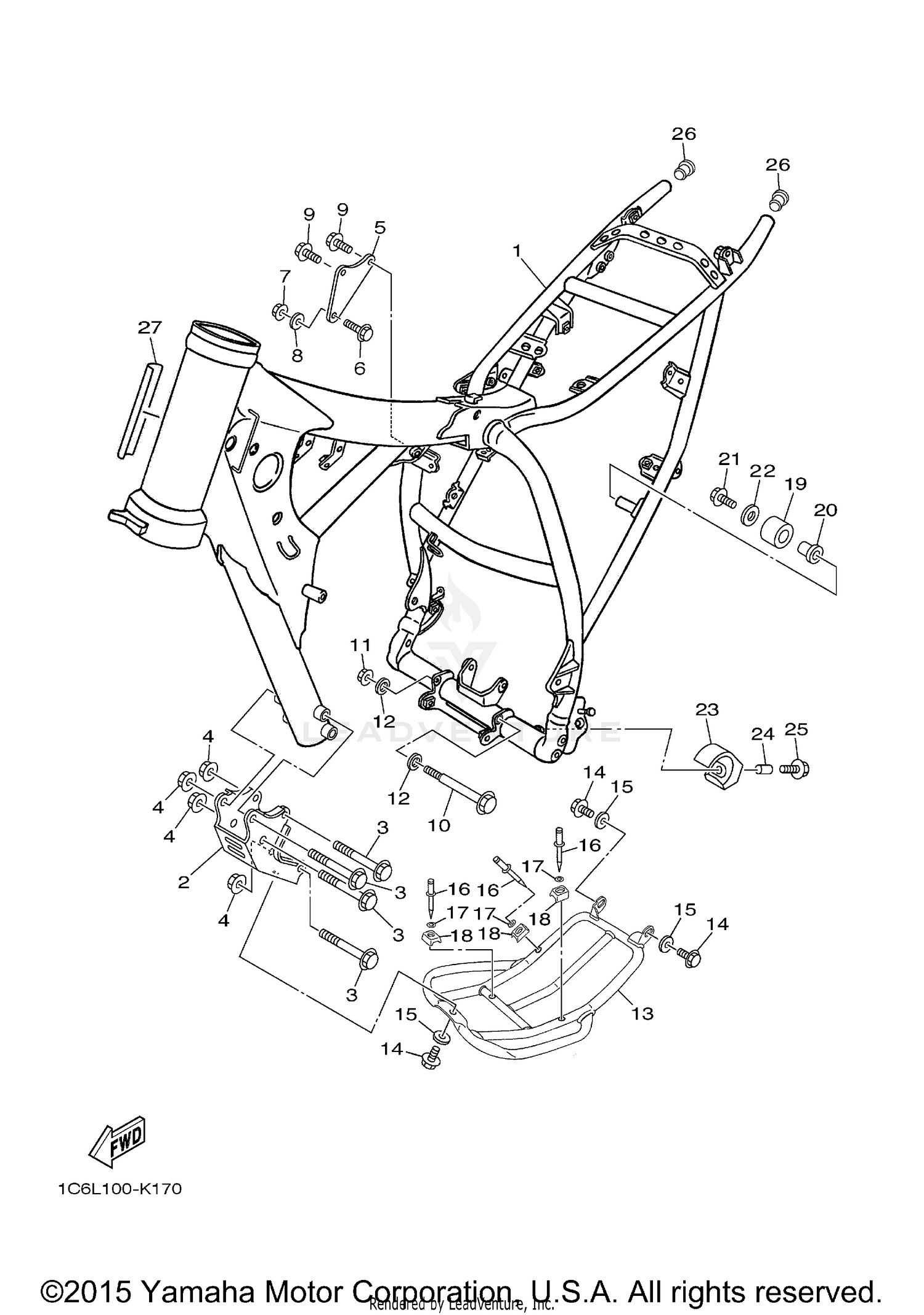

2015 Yamaha TT-R 230 FRAME OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME COMP.
1C6-F1110-10-33
|
$1,014.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
STAY, ENGINE 2
1C6-F1316-10-33
|
$297.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
BOLT, FLANGE
90105-08852-00
|
$3.95 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
NUT, SELF-LOCKING
95607-08200-00
Superseded by 90185-08169-00
|
$6.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
STAY, ENGINE 1
1C6-F1315-00-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
BOLT, FLANGE
9581M-08055-00
Superseded by 95817-08055-00
|
$3.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
NUT, SELF-LOCKING
95607-08200-00
Superseded by 90185-08169-00
|
$6.99 | ||
|
Unavailable |
|||
|
#8
WASHER, PLATE
90201-09801-00
|
$3.35 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
BOLT, FLANGE
90105-08846-00
Superseded by 90105-082A0-00
|
$3.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT, FLANGE
90105-08856-00
|
$11.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
NUT, SELF-LOCKING
95607-08200-00
Superseded by 90185-08169-00
|
$6.99 | ||
|
Unavailable |
|||
|
#12
WASHER, PLATE
90201-09801-00
|
$3.35 | ||
|
Unavailable |
|||
|
#13
PROTECTOR, ENGINE
1C6-F1471-00-00
|
$160.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
BOLT, FLANGE
9581M-10020-00
Superseded by 95817-10020-00
|
$6.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-101J1-00
|
$6.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
RIVET, BLIND
90267-40W05-00
|
|||
|
Unavailable |
|||
|
#17
WASHER, PLATE
90201-042E0-00
|
$4.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
DAMPER, RUBBER 1
1C6-F1485-00-00
|
$1.35 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
TENSIONER
5RM-F2178-00-00
|
$8.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
BUSH
5RM-F2184-00-00
|
$1.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
BOLT, FLANGE
9502M-08012-00
Superseded by 95027-08012-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
WASHER, PLATE
90201-08753-00
Superseded by 90201-081R9-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
TENSIONER SET
1B2-F2178-00-00
Superseded by 99999-04397-00
|
$15.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
COLLAR
90387-060A3-00
|
$6.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
BOLT, WITH WASHER
90119-06118-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
PLUG
90338-16148-00
|
$10.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
PROTECTOR, FUEL TANK
30S-24141-00-00
|
$4.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
