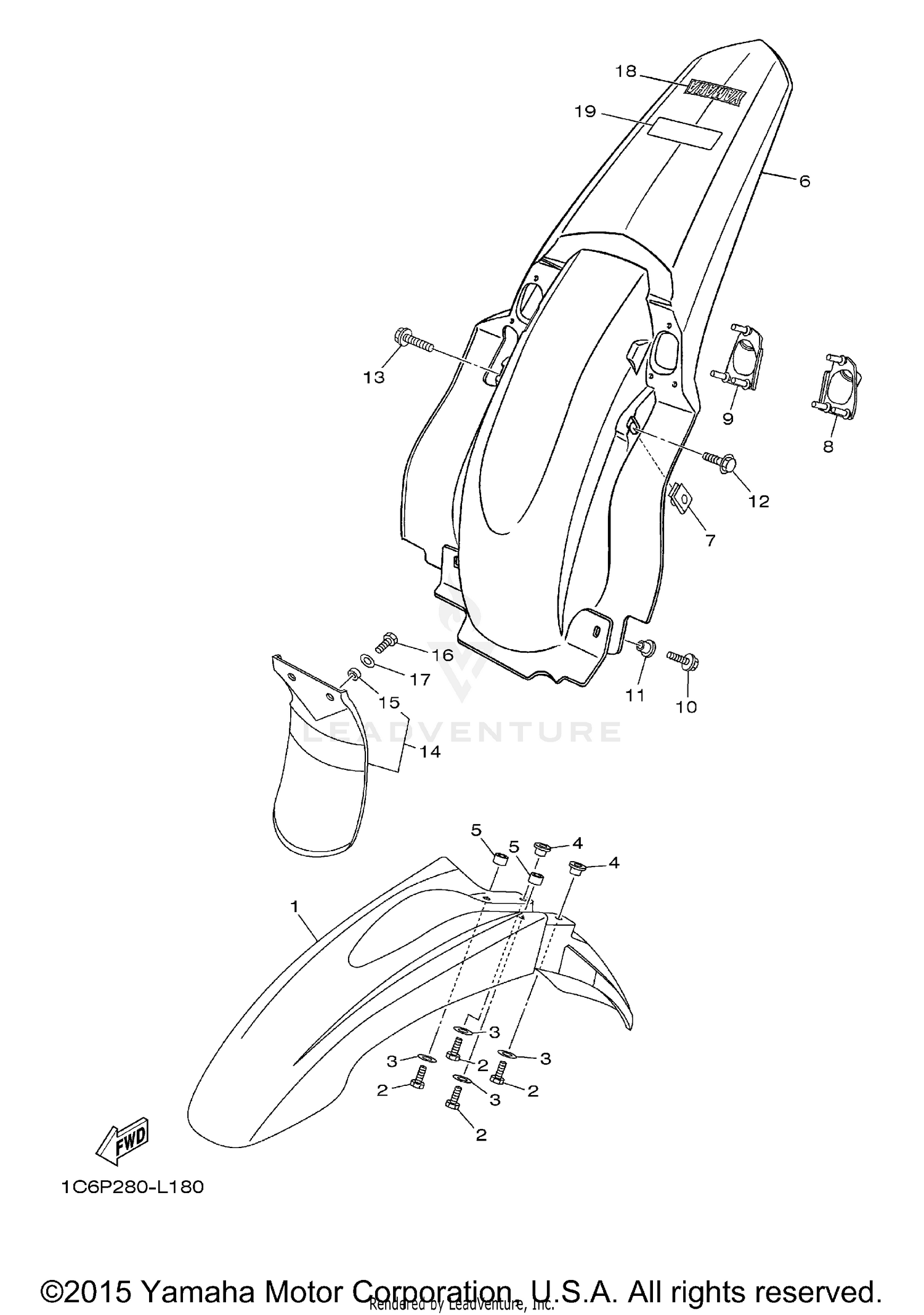

2015 Yamaha TT-R 230 FENDER OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
5RM-F1511-00-00
|
$85.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
BOLT
9700M-06020-00
Superseded by 97017-06020-00
|
$3.05 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
WASHER, PLATE
90201-06804-00
|
$0.25 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
COLLAR
90387-061V4-00
|
$5.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
COLLAR
90387-06023-00
|
$6.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
FENDER, REAR
1C6-F1611-00-00
|
$64.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
NUT, REAR FENDER
1C6-F1635-00-00
|
$6.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
COVER, REAR FENDER 1
1C6-F163A-00-00
|
$4.70 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
COVER, REAR FENDER 2
1C6-F163E-00-00
|
$3.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
BOLT, FLANGE
9580M-06012-00
Superseded by 95817-06012-00
|
$1.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
COLLAR
90387-06681-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BOLT, FLANGE
9580M-06012-00
Superseded by 95817-06012-00
|
$1.20 | ||
|
Unavailable |
|||
|
#13
BOLT,FLANGE
9582M-06030-00
Superseded by 95817-06030-00
|
$6.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
GUARD, FLAP
5RM-F1642-00-00
|
$19.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
COLLAR
90387-10W66-00
Superseded by 90387-060T4-00
|
$6.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
BOLT
9700M-06016-00
Superseded by 97017-06016-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
WASHER, PLATE
90201-06804-00
|
$0.25 | ||
|
Unavailable |
|||
|
#18
EMBLEM, YAMAHA
1B2-F153E-00-00
Superseded by B68-F153E-00-00
|
$17.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
LABEL, CAUTION
3PT-2118K-A1-00
Superseded by 3PT-2118K-A2-00
|
$4.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
