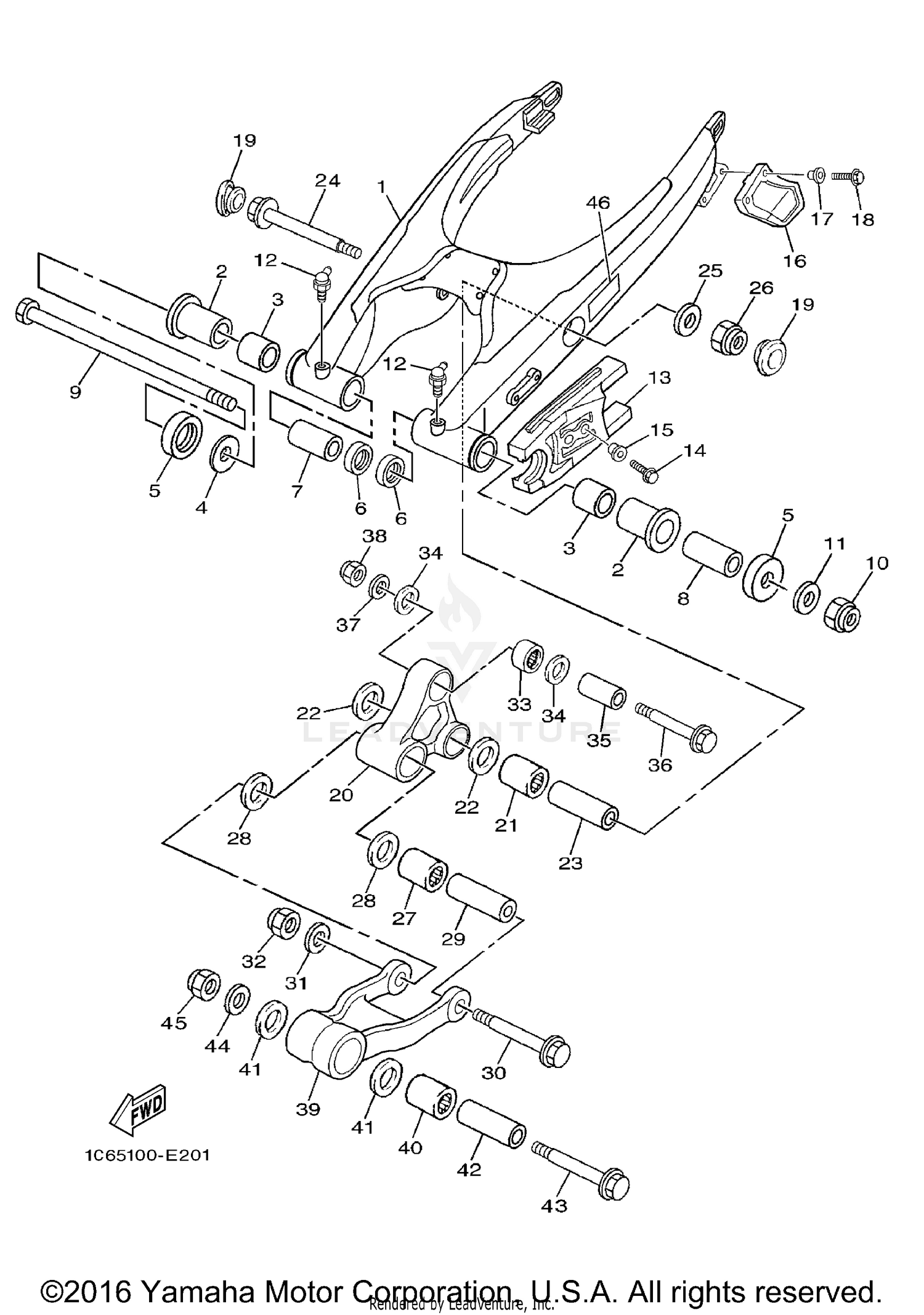

2017 Yamaha TT-R 230 REAR ARM OEM Parts Diagram

Air & Fuel
+
Body, Fairing & Fender
+
Drive & Transmission
+
Exhaust
+
Handlebars & Controls
+
Seat
+
Item MSRP Qty
#1 REAR ARM COMP.
1C6-F2110-00-35
$534.99
Available to order.
Add to View Price
#2 BUSH
90386-18146-00
$13.99
Available to order.
Add to View Price
#3 BUSH, SOLID
90380-18139-00
$13.99
Available to order.
Add to View Price
#4 SHIM
5L9-F2127-00-00
$0.70
Available to order.
Add to View Price
#5 COVER, THRUST 1
5L9-F2128-00-00
Superseded by 401-22128-01-00
$26.99
Available to order.
Add to View Price
#6 OIL SEAL
93109-18020-00
$11.99
Available to order.
Add to View Price
#7 COLLAR
90387-121N2-00
$15.99
Available to order.
Add to View Price
#8 COLLAR
90387-127F2-00
$14.99
Available to order.
Add to View Price
#9 SHAFT, PIVOT
1C6-F2141-00-00
$28.99
Available to order.
Add to View Price
#10 NUT, SELF-LOCKING
90185-12134-00
$9.99
Available to order.
Add to View Price
#11 WASHER, PLATE
90201-126A7-00
$7.99
Available to order.
Add to View Price
#12 NIPPLE, GREASE
93700-06803-00
$3.55
Available to order.
Add to View Price
#13 SEAL, GUARD
1B2-F2151-10-00
$35.99
Available to order.
Add to View Price
#14 BOLT
9700M-06016-00
Superseded by 97017-06016-00
$6.99
In Stock: Ready to ship.
Add to View Price
#15 COLLAR
90387-062X0-00
$16.99
Available to order.
Add to View Price
#16 SUPPORT, CHAIN
5RM-F2199-00-00
$5.99
Available to order.
Add to View Price
#17 COLLAR
90387-06737-00
$7.99
Available to order.
Add to View Price
#18 BOLT
9700M-06016-00
Superseded by 97017-06016-00
$6.99
Unavailable
#19 CAP
1C6-F2117-00-00
$1.75
Available to order.
Add to View Price
#20 ARM, RELAY
1C6-2217A-00-00
$109.99
Available to order.
Add to View Price
#21 BEARING
93315-32056-00
$22.99
In Stock: Ready to ship.
Add to View Price
#22 OIL SEAL
93109-20076-00
$13.99
In Stock: Ready to ship.
Add to View Price
#23 COLLAR
90387-14007-00
$23.99
Available to order.
Add to View Price
#24 BOLT, FLANGE
90105-12801-00
$29.99
Available to order.
Add to View Price
#25 WASHER, PLATE
90201-126A7-00
$7.99
Unavailable
#26 NUT, U
95617-12100-00
$3.85
Available to order.
Add to View Price
#27 BEARING
93315-32056-00
$22.99
Unavailable
#28 OIL SEAL
93109-20076-00
$13.99
Unavailable
#29 COLLAR
90387-12024-00
$23.99
Available to order.
Add to View Price
#30 BOLT, FLANGE
90105-12800-00
Superseded by 90105-12025-00
$15.99
Available to order.
Add to View Price
#31 WASHER, PLATE
90201-126A7-00
$7.99
Unavailable
#32 NUT, U
95617-12100-00
$3.85
Unavailable
#33 BEARING
93315-31758-00
$32.99
In Stock: Ready to ship.
Add to View Price
#34 OIL SEAL
93109-17071-00
$5.99
Available to order.
Add to View Price
#35 COLLAR
90387-1012A-00
$17.49
Available to order.
Add to View Price
#36 BOLT, FLANGE
90105-10818-00
$8.49
Available to order.
Add to View Price
#37 WASHER, PLATE
90201-101J1-00
$6.99
In Stock: Ready to ship.
Add to View Price
#38 NUT, U
95617-10100-00
$6.99
In Stock: Ready to ship.
Add to View Price
#39 ROD, CONNECTING 1
1C6-F217F-01-00
$178.99
Available to order.
Add to View Price
#40 BEARING
93315-32056-00
$22.99
Unavailable
#41 OIL SEAL
93109-20076-00
$13.99
Unavailable
#42 COLLAR
90387-12023-00
$22.99
Available to order.
Add to View Price
#43 BOLT
90101-12804-00
$10.49
Available to order.
Add to View Price
#44 WASHER, PLATE
90201-126A7-00
$7.99
Unavailable
#45 NUT, U
95617-12100-00
$3.85
Unavailable
#46 LABEL, TIRE
3RV-21668-A0-00
Superseded by 3RV-21668-A1-00
$3.99
Unavailable
