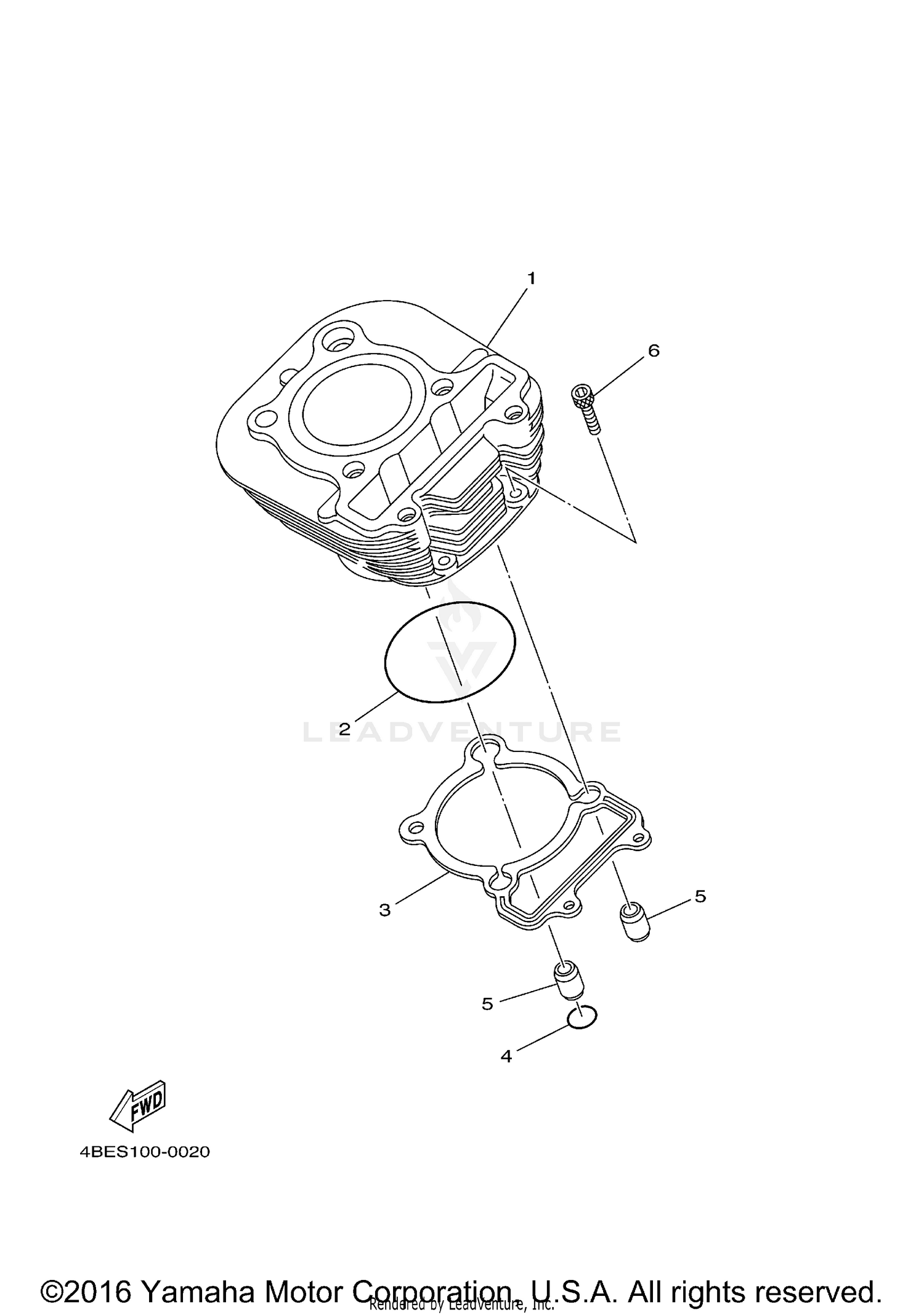

2017 Yamaha TT-R 230 CYLINDER OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER
4VW-11310-00-00
|
$471.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
O-RING
93210-72529-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, CYLINDER
5VC-11351-10-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING
93210-13361-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN, DOWEL
91810-16016-00
Superseded by 99530-14016-00
|
$2.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
BOLT
9131M-06025-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
