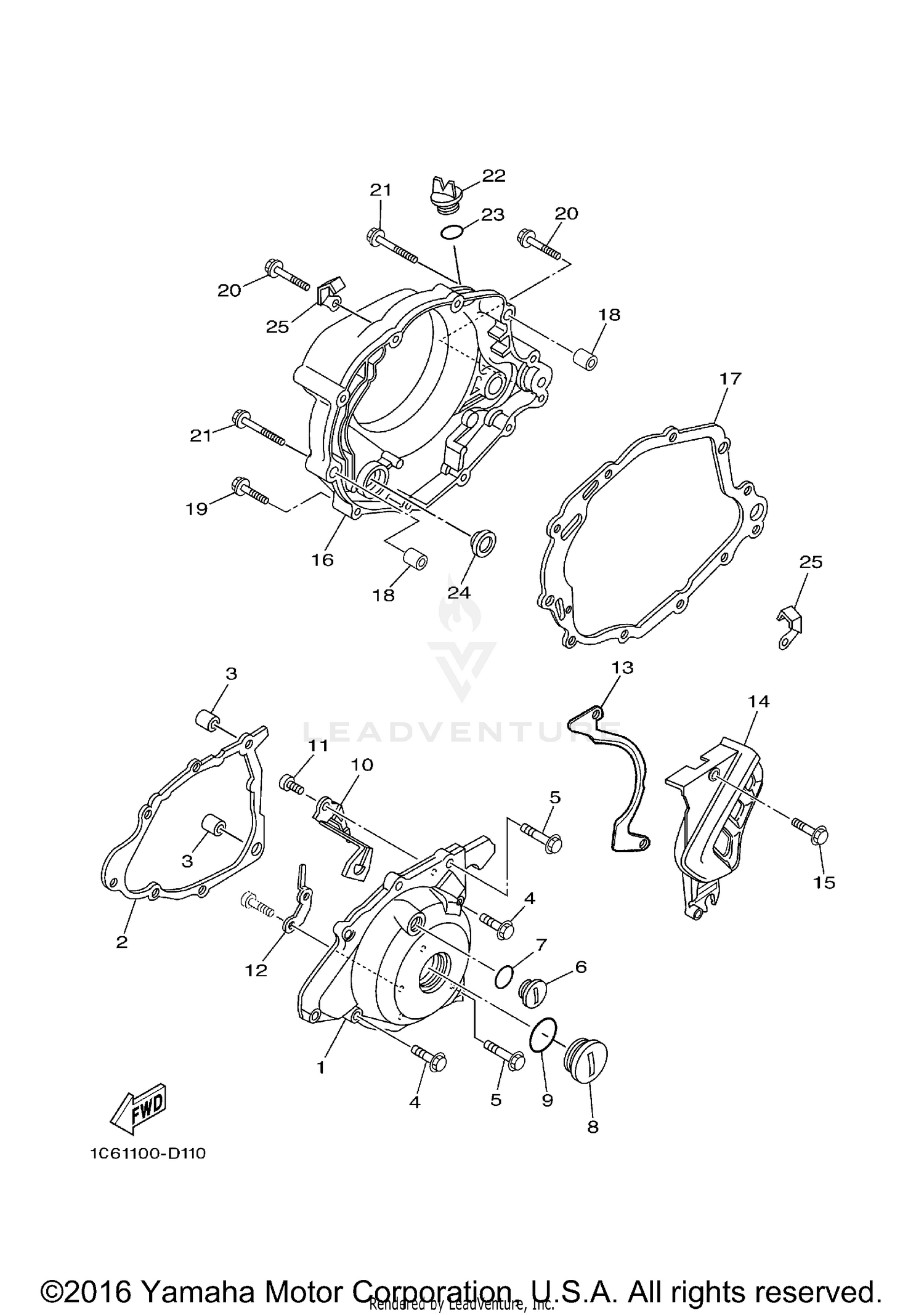

2017 Yamaha TT-R 230 CRANKCASE COVER 1 OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CRANKCASE 1
1C6-E5411-00-WN
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, CRANKCASE COVER 1
4BE-15451-03-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, DOWEL
99530-12016-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
BOLT, FLANGE
9502M-06025-00
Superseded by 95027-06025-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
BOLT, FLANGE
9502M-06035-00
Superseded by 95027-06035-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLUG, STRAIGHT SCREW
90340-14W06-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
93210-14800-00
Superseded by 93210-14369-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
PLUG, STRAIGHT SCREW
90340-32W07-00
Superseded by 90340-32123-00
|
$19.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
O-RING
93210-32800-00
Superseded by 93210-32172-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
GUIDE, ROPE
1C6-E5758-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, BUTTON HEAD
9201M-06010-00
Superseded by 92017-06010-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP 2
1C6-E5484-00-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#13
GUIDE, CHAIN
1C6-E7466-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CRANKCASE COVER ASSY 2
1C6-E5420-00-WN
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
9502M-06025-00
Superseded by 95027-06025-00
|
$6.99 | ||
|
Unavailable |
|||
|
#16
COVER, CRANKCASE 3
4VW-WE543-00-00
|
$284.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET, CRANKCASE COVER 3
4BE-15462-00-00
|
$30.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
PIN, DOWEL
99530-12016-00
|
$6.99 | ||
|
Unavailable |
|||
|
#19
BOLT, FLANGE
9502M-06025-00
Superseded by 95027-06025-00
|
$6.99 | ||
|
Unavailable |
|||
|
#20
BOLT, FLANGE
9502M-06035-00
Superseded by 95027-06035-00
|
$2.05 | ||
|
Unavailable |
|||
|
#21
BOLT, FLANGE
9502M-06045-00
Superseded by 95027-06045-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLUG, OIL
3Y1-15363-10-00
|
$20.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
O-RING
93210-19123-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
GAUGE, LEVEL
3Y1-15361-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP
90462-08225-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
