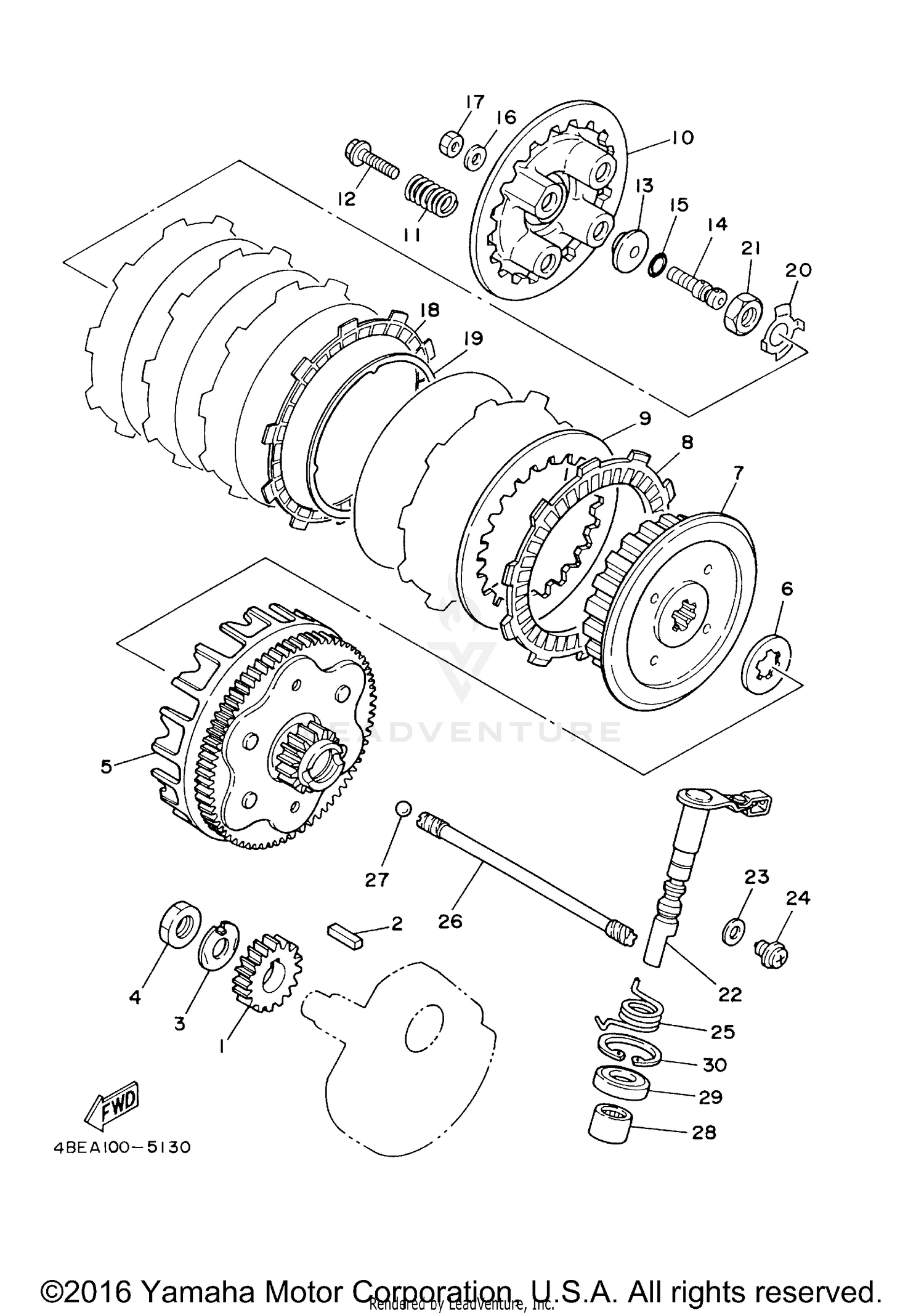

2017 Yamaha TT-R 230 CLUTCH OEM Parts Diagram

Air & Fuel
+
Body, Fairing & Fender
+
Drive & Transmission
+
Exhaust
+
Handlebars & Controls
+
Seat
+
Item MSRP Qty
#1 GEAR, PRIMARY DRIVE (22T)
5H0-16111-00-00
$87.99
Available to order.
Add to View Price
#2 KEY, STRAIGHT
90282-05043-00
$6.99
Available to order.
Add to View Price
#3 WASHER, LOCK
90215-14205-00
$6.99
In Stock: Ready to ship.
Add to View Price
#4 NUT
90170-14284-00
$5.99
In Stock: Ready to ship.
Add to View Price
#5 PRIMARY DRIVEN GEAR COMP.
1KH-16150-00-00
$322.99
Available to order.
Add to View Price
#6 PLATE, THRUST 1
2LN-16154-00-00
$22.99
Available to order.
Add to View Price
#7 BOSS, CLUTCH
2LN-16371-00-00
$126.99
Available to order.
Add to View Price
#8 PLATE, FRICTION
537-16321-00-00
$15.99
In Stock: Ready to ship.
Add to View Price
#9 PLATE, CLUTCH 1
137-16324-00-00
Superseded by 336-16324-10-00
$15.99
Unavailable
#10 PLATE, PRESSURE 1
5H0-16351-00-00
$33.99
Available to order.
Add to View Price
#11 SPRING, COMPRESSION
90501-23700-00
$6.99
Available to order.
Add to View Price
#12 SCREW, WITH WASHER
90159-05011-00
$2.99
Available to order.
Add to View Price
#13 PLATE, PUSH
1W1-16358-01-00
$20.99
Available to order.
Add to View Price
#14 ROD, PUSH 1
4JG-16356-00-00
$20.99
Available to order.
Add to View Price
#15 O-RING
93210-48364-00
$6.99
Available to order.
Add to View Price
#16 WASHER
92907-06200-00
$6.99
In Stock: Ready to ship.
Add to View Price
#17 NUT
95307-06600-00
Superseded by 95317-06600-00
$3.05
In Stock: Ready to ship.
Add to View Price
#18 PLATE, FRICTION
36X-16321-00-00
$15.99
Available to order.
Add to View Price
#19 SPRING, CUSHION
1KH-16383-00-00
$36.99
Available to order.
Add to View Price
#20 WASHER, LOCK
90215-14186-00
$6.99
Available to order.
Add to View Price
#21 NUT
90170-14284-00
$5.99
Unavailable
#22 PUSH LEVER ASSY
4JG-16380-01-00
$97.99
Available to order.
Add to View Price
#23 GASKET
90430-08119-00
$6.49
In Stock: Ready to ship.
Add to View Price
#24 SCREW
90149-08067-00
$4.60
Available to order.
Add to View Price
#25 SPRING, TORSION
90508-18495-00
$5.99
Available to order.
Add to View Price
#26 ROD, PUSH 2
5H0-16357-00-00
$34.99
Available to order.
Add to View Price
#27 BALL
93505-16006-00
$6.99
In Stock: Ready to ship.
Add to View Price
#28 BEARING
93315-31428-00
$25.99
Available to order.
Add to View Price
#29 OIL SEAL
93102-14209-00
$8.99
In Stock: Ready to ship.
Add to View Price
#30 CIRCLIP
93420-28055-00
$6.99
Available to order.
Add to View Price
