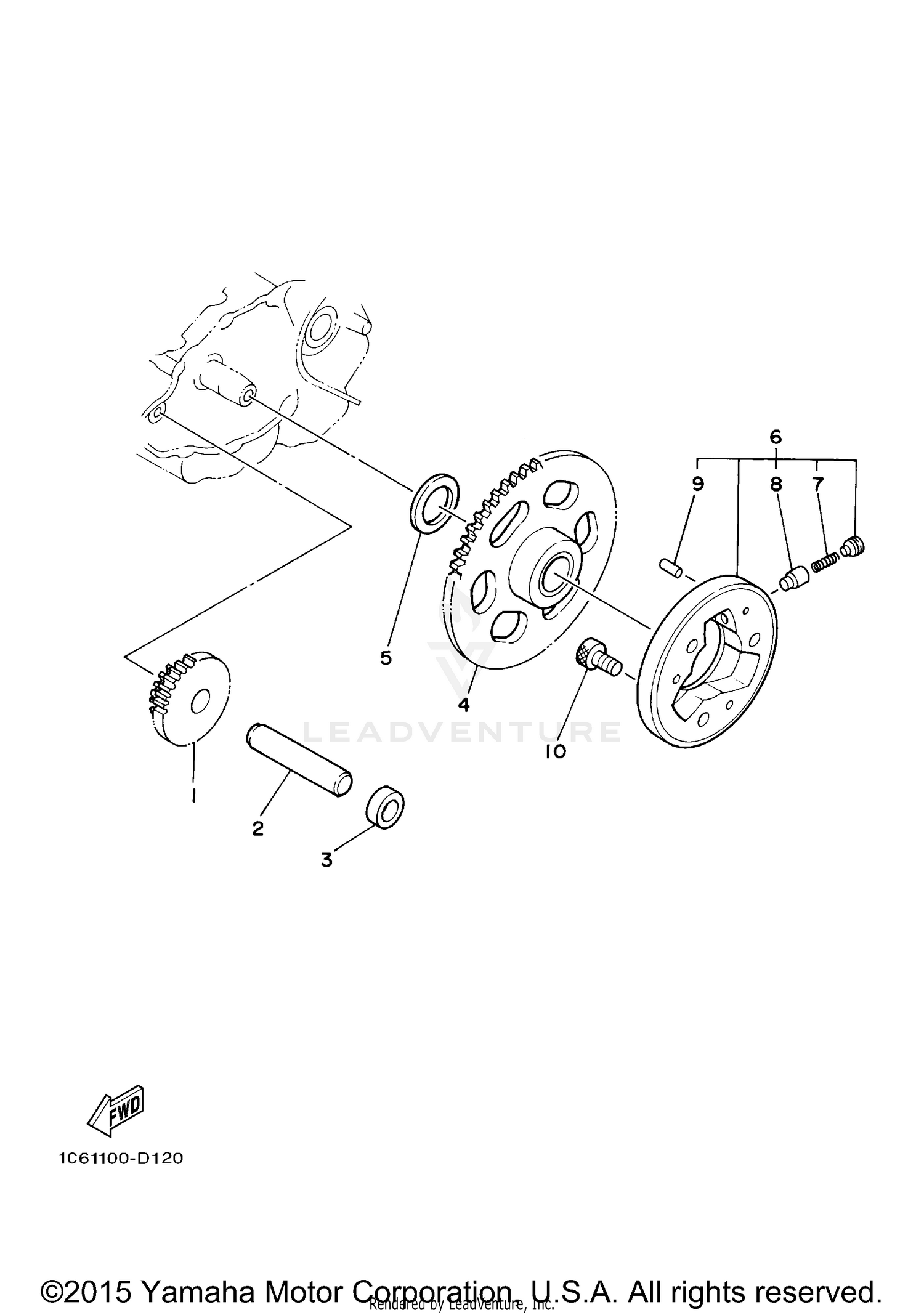

2011 Yamaha TT-R 230 STARTER CLUTCH OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, IDLER 1 (41T/10T)
2HT-15512-00-00
|
$82.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
SHAFT 1
5H0-15521-00-00
|
$26.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
COLLAR
90387-125Y0-00
|
$12.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
GEAR, IDLER 2 (56T)
4JG-15517-00-00
|
$138.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
WASHER, PLATE (0.9T)
90201-25290-00
Superseded by 90201-256K6-00
|
$2.90 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
STARTER CLUTCH OUTER ASSY
4H7-15580-10-00
|
$169.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
SPRING, COMPRESSION
90501-04596-00
|
$6.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
CAP, STARTER CLUTCH SPRING
1J7-15583-01-00
|
$15.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
PIN, DOWEL
93615-12088-00
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT
9131M-08020-00
|
$2.10 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
