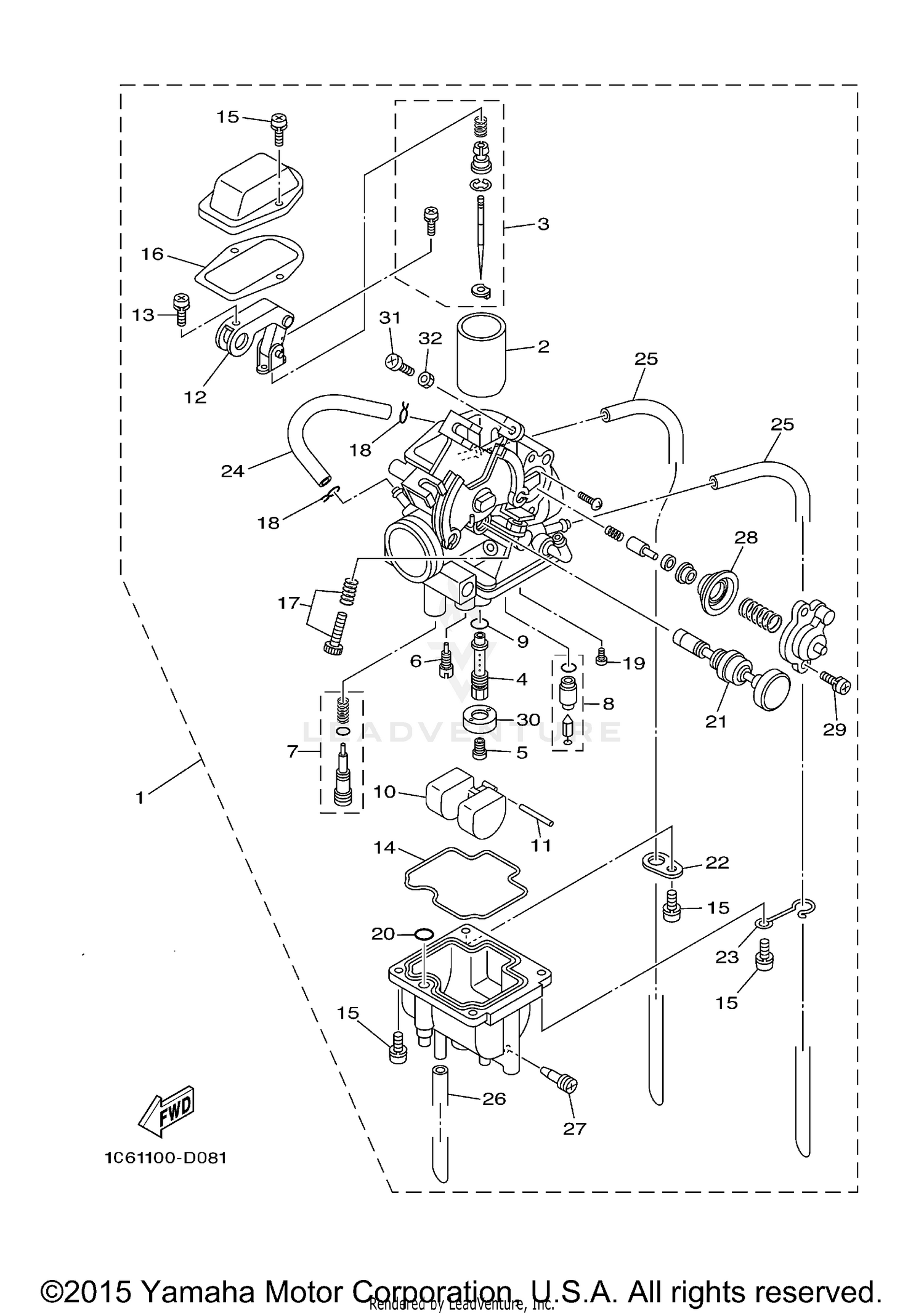

2011 Yamaha TT-R 230 CARBURETOR OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSY 1
1C6-14301-10-00
|
$562.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
VALVE, THROTTLE 2
1XL-14313-27-00
|
$85.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
NEEDLE SET
1C6-1490J-00-00
|
$41.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
NOZZLE, MAIN
1C6-14341-00-00
|
$26.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
JET, MAIN (#125)
288-14343-63-00
|
$8.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
JET, PILOT (#36)
1C6-14342-18-00
|
$14.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
PILOT SCREW SET
1C6-14105-00-00
|
$14.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
NEEDLE VALVE ASSY
30S-14390-00-00
|
$41.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
GASKET
360-24512-00-00
|
$6.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
FLOAT
25N-14385-00-00
|
$41.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
PIN, FLOAT
689-14386-00-00
Superseded by 6E5-14386-01-00
|
$5.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
BRACKET 1
4PT-14291-10-00
|
$158.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
SCREW, PAN HEAD
4PT-14325-00-00
|
$1.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
GASKET, FLOAT CHAMBER
5Y1-14384-00-00
|
$22.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
SCREW, PAN HEAD
97601-04114-00
Superseded by 98580-04014-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
GASKET
5Y1-14198-00-00
|
$5.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
STOP SCREW SET
5DS-1490K-00-00
|
$11.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
CLIP
5Y1-14159-00-00
|
$6.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
SCREW, PAN HEAD
30S-14325-00-00
|
$1.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
GASKET
5Y1-14536-00-00
|
$4.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
PLUNGER, STARTER
1KH-14371-01-00
|
$50.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
PLATE
5Y1-14146-00-00
|
$43.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
PLATE
42U-14146-00-00
|
$30.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
PIPE
1KH-14149-00-00
|
$13.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
PIPE
1C6-14197-00-00
|
$6.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
PIPE
1C6-14396-00-00
|
$5.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
SCREW, AIR ADJUSTING
14T-14323-00-00
Superseded by 14T-14104-00-00
|
$10.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
DIAPHRAGM SET 1
5Y1-1490A-00-00
|
$25.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
SCREW, PAN HEAD
98501-04010-00
Superseded by 98580-04010-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
PLATE, BAFFLE
1KH-14153-00-00
|
$19.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
SCREW, PAN HEAD
97801-05012-00
Superseded by 98580-05012-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
NUT
30X-14358-00-00
|
$6.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
