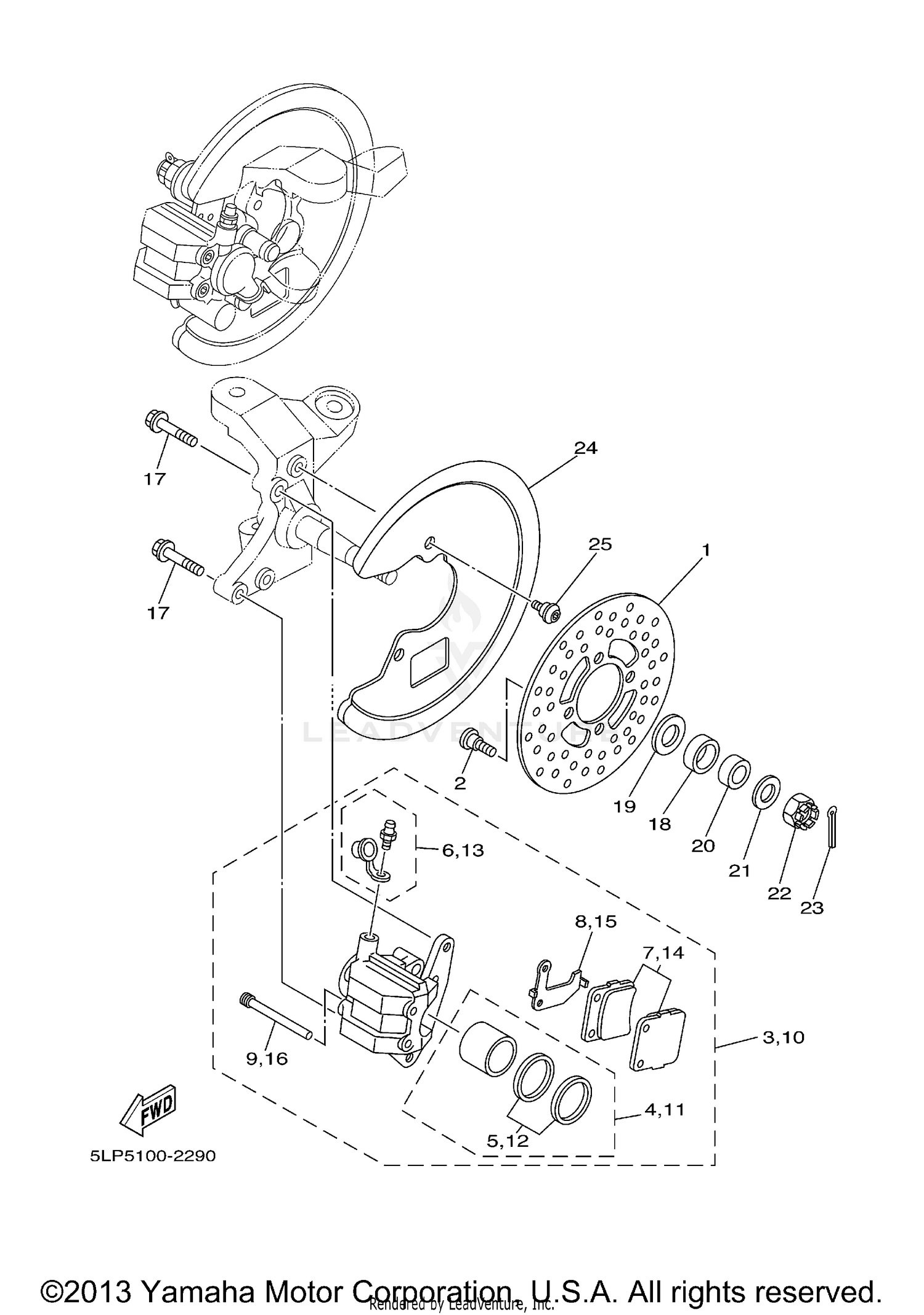

2005 Yamaha RAPTOR 660R FRONT BRAKE CALIPER OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC, BRAKE (LEFT)
3GD-2582T-10-00
|
$172.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
90149-08268-00
Superseded by 90109-08087-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CALIPER ASSY (LEFT)
5LP-2580T-00-00
|
$339.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON ASSY, CALIPER
3GD-W0057-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CALIPER SEAL KIT
3GD-W0047-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BLEED SCREW KIT
1UY-W0048-50-00
Superseded by 36Y-W0048-00-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BRAKE PAD KIT
5LP-W0045-00-00
|
$41.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
SHIM, CALIPER
3GD-25827-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, PAD
3GD-25933-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CALIPER ASSY (RIGHT)
5LP-2580U-00-00
|
$339.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PISTON ASSY, CALIPER
3GD-W0057-00-00
|
$57.99 | ||
|
Unavailable |
|||
|
#12
CALIPER SEAL KIT
3GD-W0047-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#13
BLEED SCREW KIT
1UY-W0048-50-00
Superseded by 36Y-W0048-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#14
BRAKE PAD KIT
5LP-W0045-00-00
|
$41.99 | ||
|
Unavailable |
|||
|
#15
SHIM, CALIPER
3GD-25828-00-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, PAD
3GD-25933-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#17
BOLT, FLANGE
90105-08520-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR
90387-20005-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-204R5-00
Superseded by 90201-20279-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
COLLAR
90387-150R1-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-14586-00
Superseded by 90201-14220-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
NUT, CASTLE
90171-14020-00
Superseded by 90171-14056-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN, COTTER
91401-30025-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
RING, WHEEL 1
5LP-2514A-10-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
90109-066G1-00
Superseded by 90109-06285-00
|
$3.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
