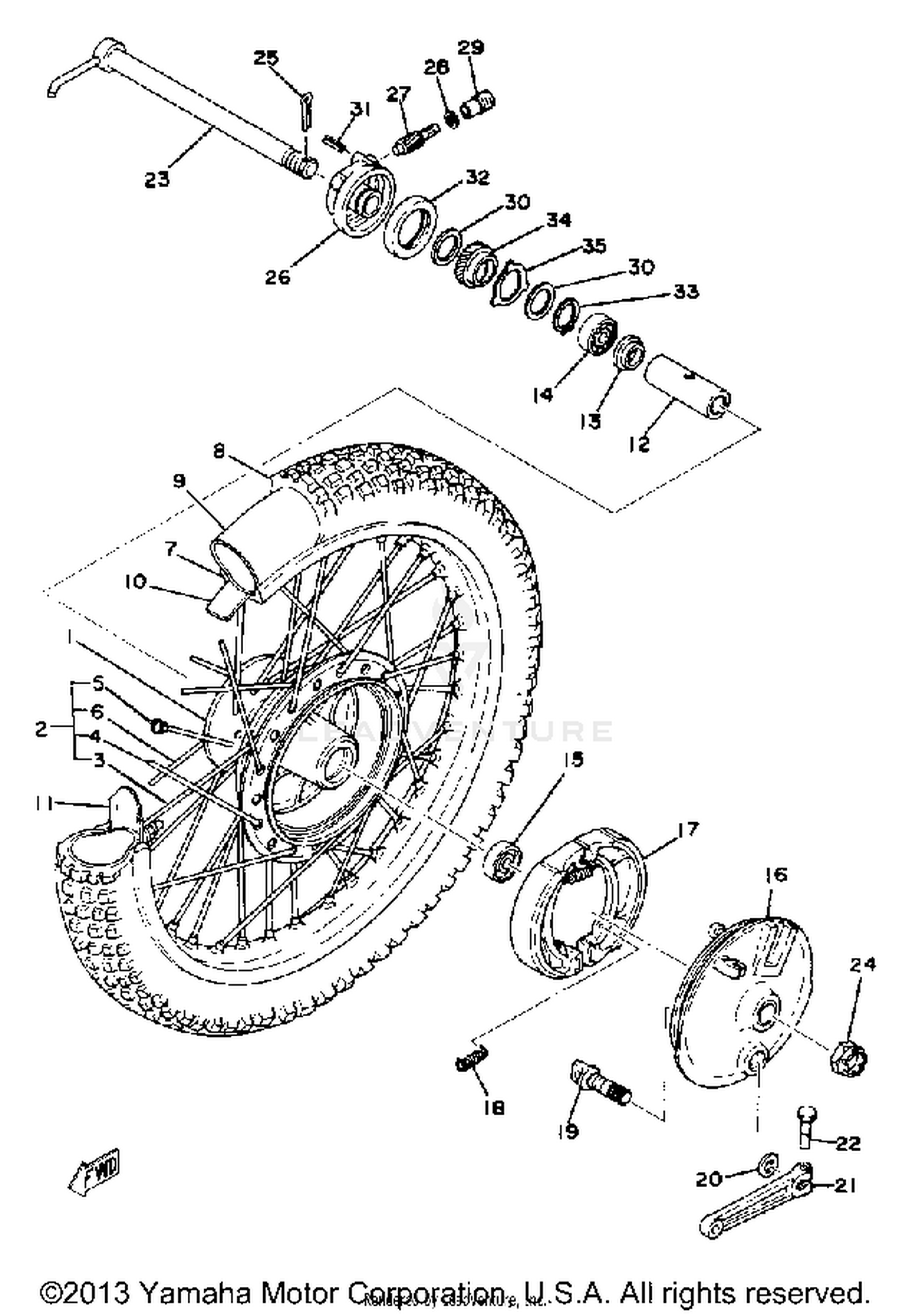

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, FRONT
1K7-25111-10-98
|
$132.99 | ||
|
Unavailable |
|||
|
#2
SPOKE SET, FRONT
2W6-25104-02-00
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPOKE SET, INNER 1
1K7-25196-90-00
|
$4.27 | ||
|
Unavailable |
|||
|
#4
SPOKE SET, OUTER 1
1K7-25197-90-00
|
$4.27 | ||
|
Unavailable |
|||
|
#5
SPOKE SET, INNER 2
1K7-25179-90-00
|
$10.18 | ||
|
Unavailable |
|||
|
#6
SPOKE SET, OUTER 2
1K7-25189-90-00
|
$10.18 | ||
|
Unavailable |
|||
|
#7
RIM 1.60X21
94416-21326-00
|
$513.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
300X21 BS M7
94130-21226-00
|
$41.68 | ||
|
Unavailable |
|||
|
#9
TUBE (MCS 2.75/3.00-21 TR6)
94227-21123-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAND, RIM
94327-21024-00
|
$4.60 | ||
|
Unavailable |
|||
|
#11
SPACER, BEAD
1T1-25194-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER
90560-15116-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
FLANGE, SPACER 2
146-25116-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING
93306-20209-00
Superseded by 93306-20205-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING
93306-20226-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRAKE SHOE PLT ASSEMBLY (1W1-25
1W1-25016-11-98
|
$285.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRAKE SHOE KIT
322-W2535-00-00
Superseded by 322-W253A-10-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPRING, TENSION
90506-17328-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
CAMSHAFT
23X-25151-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#20
SEAL, CAMSHAFT
137-25159-00-00
|
$3.75 | ||
|
Unavailable |
|||
|
#21
LEVER, CAMSHAFT 1
322-25155-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#22
BOLT
90101-06291-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
AXLE, WHEEL
1W2-25181-02-00
|
$33.99 | ||
|
Unavailable |
|||
|
#24
NUT, CASTLE
90171-14020-00
Superseded by 90171-14056-00
|
$12.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
GEAR UNIT ASSEMBLY
1W2-25190-00-00
Superseded by 3XP-25190-00-00
|
$165.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
GEAR, METER
1W2-25138-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#28
SHIM, ROD
102-18416-00-00
|
$4.65 | ||
|
Unavailable |
|||
|
#29
BUSH
306-25136-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#30
WASHER, PLATE
90201-22283-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
PIN, SPRING
91609-20014-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#32
OIL SEAL
93106-40027-00
|
$14.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
CIRCLIP
93410-22014-00
Superseded by 99009-22400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
GEAR, DRIVE
1W2-25135-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#35
CLUTCH, METER
1K7-25149-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
