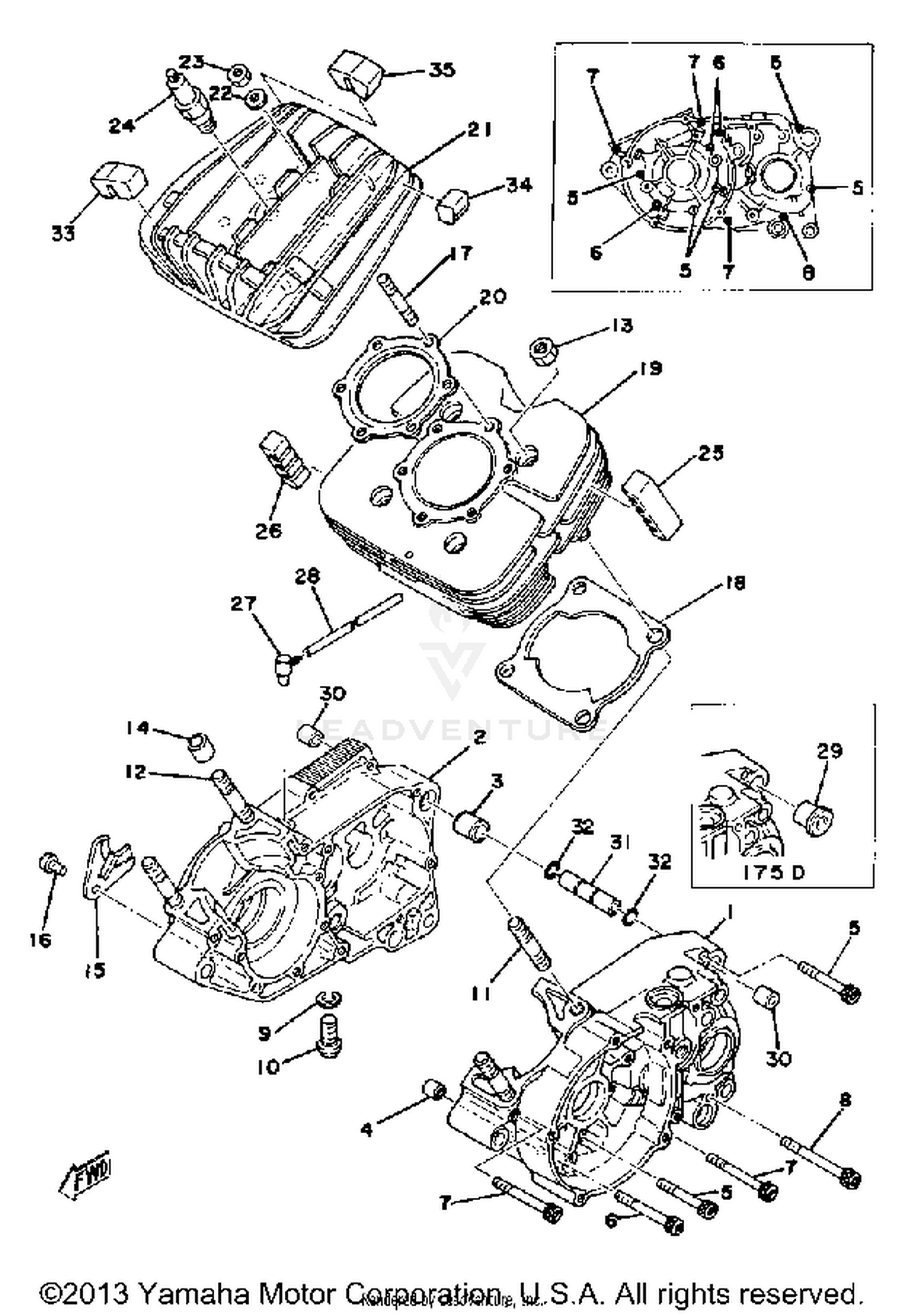

Crankcase - Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE 1
1W2-15111-02-00
|
$204.99 | ||
|
Unavailable |
|||
|
#2
CRANKCASE 2 (1W2-15121-01)
1W2-15121-02-00
|
$247.99 | ||
|
Unavailable |
|||
|
#3
PIN, DOWEL
99510-20020-00
Superseded by 99530-20020-00
|
$2.55 | ||
|
Unavailable |
|||
|
#4
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
BOLT
91316-06050-00
Superseded by 91317-06050-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
91316-06060-00
Superseded by 91317-06060-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BOLT
91316-06070-00
Superseded by 91317-06070-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
91316-06075-00
Superseded by 91317-06075-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET
90430-12207-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
PLUG, STRAIGHT SCREW
90340-12005-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, STUD
90116-10257-00
|
$4.17 | ||
|
Unavailable |
|||
|
#12
BOLT, STUD
90116-10258-00
|
$4.17 | ||
|
Unavailable |
|||
|
#13
NUT
90179-10201-00
Superseded by 90179-10021-00
|
$23.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
PIN, DOWEL
99530-14016-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOLDER
304-15128-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN HEAD
92501-08010-00
Superseded by 98507-08010-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, STUD
90116-08104-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET, CYLINDER
3TN-11351-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CYLINDER 1
1W2-11311-00-00
|
$474.99 | ||
|
Unavailable |
|||
|
#20
GASKET, CYLINDER HEAD 1
1W2-11181-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
HEAD, CYLINDER 1
1W2-11111-00-00
|
$84.59 | ||
|
Unavailable |
|||
|
#22
WASHER, PLATE
90201-08100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#24
CHAMPION N2G 10PK
CMP-N2G00-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#25
ABSORBER 3
2A6-11127-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#26
ABSORBER 3
2A6-11127-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#27
BREATHER
583-15371-00-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
HOSE
90445-07177-00
Superseded by 90445-07MF1-00
|
$7.55 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPACER, ENG MOUNT
1W1-15317-00-00
|
$3.16 | ||
|
Unavailable |
|||
|
#30
Damper
328-15316-00-00
Superseded by 90388-08003-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
SPACER, ENGINE MOUNT
401-15317-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
O-RING
93210-11073-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
ABSORBER 1
1W2-11161-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#34
ABSORBER 2
1W2-11162-00-00
|
$1.78 | ||
|
Unavailable |
|||
|
#35
ABSORBER 3
1W2-11127-00-00
|
$5.24 | ||
|
Unavailable |
|||
