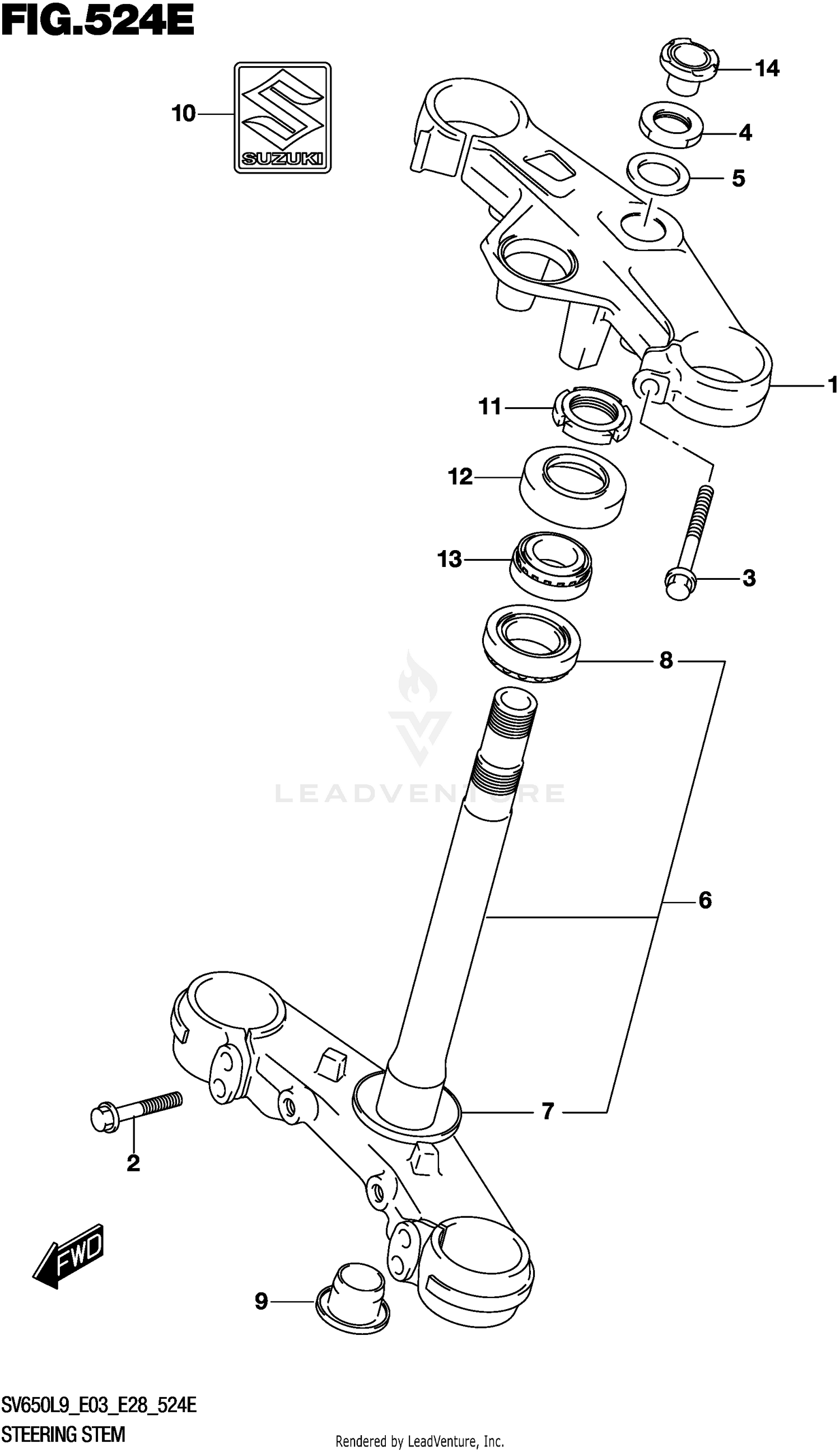

2019 Suzuki SV 650 STEERING STEM (SV650XAL9 E28) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET,UPPER
51311-44HB0
|
$148.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
BOLT
51328-44H00
|
$4.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
BOLT,BRACKET UPPER
51328-44HB0
|
$3.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
NUT
51353-13K00
|
$9.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
WASHER
51356-13K00
|
$2.70 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
BRACKET,UNDER (BLACK)
51410-44HB0-291
|
$365.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
.SEAL, STEERING LOWER
51644-12C00
|
$9.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
.BEARING (30X55X17)
09265-30020
|
$44.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
CAP
51482-44H00
|
$15.64 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
EMBLEM, "S"
68281-47HA0
|
$8.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
NUT, STEERING STEM
51631-31F10
|
$14.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
SEAL,DUST
51643-40502
Superseded by 51643-40503
|
$6.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
BEARING (25X47X15)
09265-25038
|
$45.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
CAP,STEERING STEM
51344-23K10
|
$4.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
