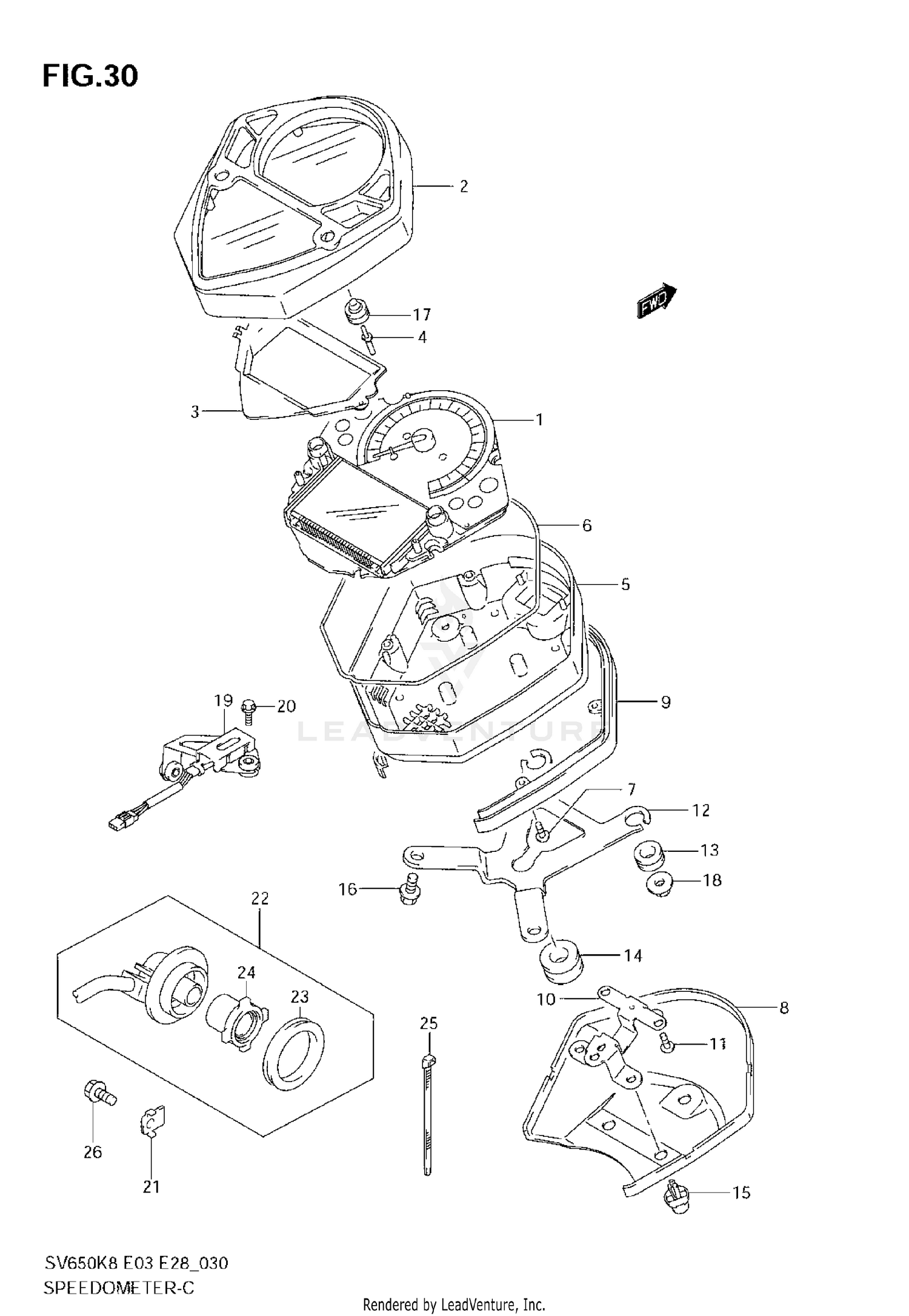

2008 Suzuki SV 650 SPEEDOMETER (SV650K8) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPEEDOMETER (MILE/KILO)
34120-17GE0
|
$787.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#1
SPEEDOMETER (KILO)
34120-17GC0
|
|||
|
Unavailable |
|||
|
#2
CASE, SPEEDOMETER UPPER
34150-16G30
|
$165.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
PLATE, SPEEDOMETER
34125-16G00
|
$11.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
KNOB, SPEEDOMETER
34124-16G00
|
$8.25 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
CASE, SPEEDOMETER LOWER
34152-16G00
|
$49.48 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
GASKET, METER CASE
34153-16G00
|
$13.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
SCREW, SPEEDOMETER
34183-16G30
|
$3.95 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
COVER, SPEEDOMETER LOWER
34156-16G30
|
$61.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
DECORATION PLATE, METER CASE
34157-16G30
|
$73.08 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
HOLDER, SPEEDOMETER
34195-16G30
|
$21.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
SCREW
34149-16B00
|
$1.74 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
BRACKET, SPEEDOMETER CASE
34162-16G30
|
$49.48 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
CUSHION, SPEEDOMETER
34996-43410
|
$3.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
CUSHION,SPEEDOMETER
34955-13E00
Superseded by 34955-13E01
|
$2.92 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
CLIP, SPEEDOMETER
09409-07332
|
$2.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
BOLT, SPEEDOMETER
07120-0616B
|
$2.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
COVER
34126-16G00
|
$8.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
NUT
09159-05044
Superseded by 09159-05049
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
RESISTOR ASSY
36510-16G00
|
$81.35 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
BOLT (6X25)
09116-06047
|
$1.82 | ||
|
Unavailable |
|||
|
#21
GUIDE, SENSOR LEAD
34938-14F00
|
$5.53 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
SENSOR, SPEED
34990-17G10
|
$226.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
SEAL, SENSOR OIL
09286-44001
|
$11.64 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
MAGNET
34983-27G00
|
$33.35 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
CLAMP (L:100)
09407-10404
|
$2.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
BOLT
01547-0612B
|
$1.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
