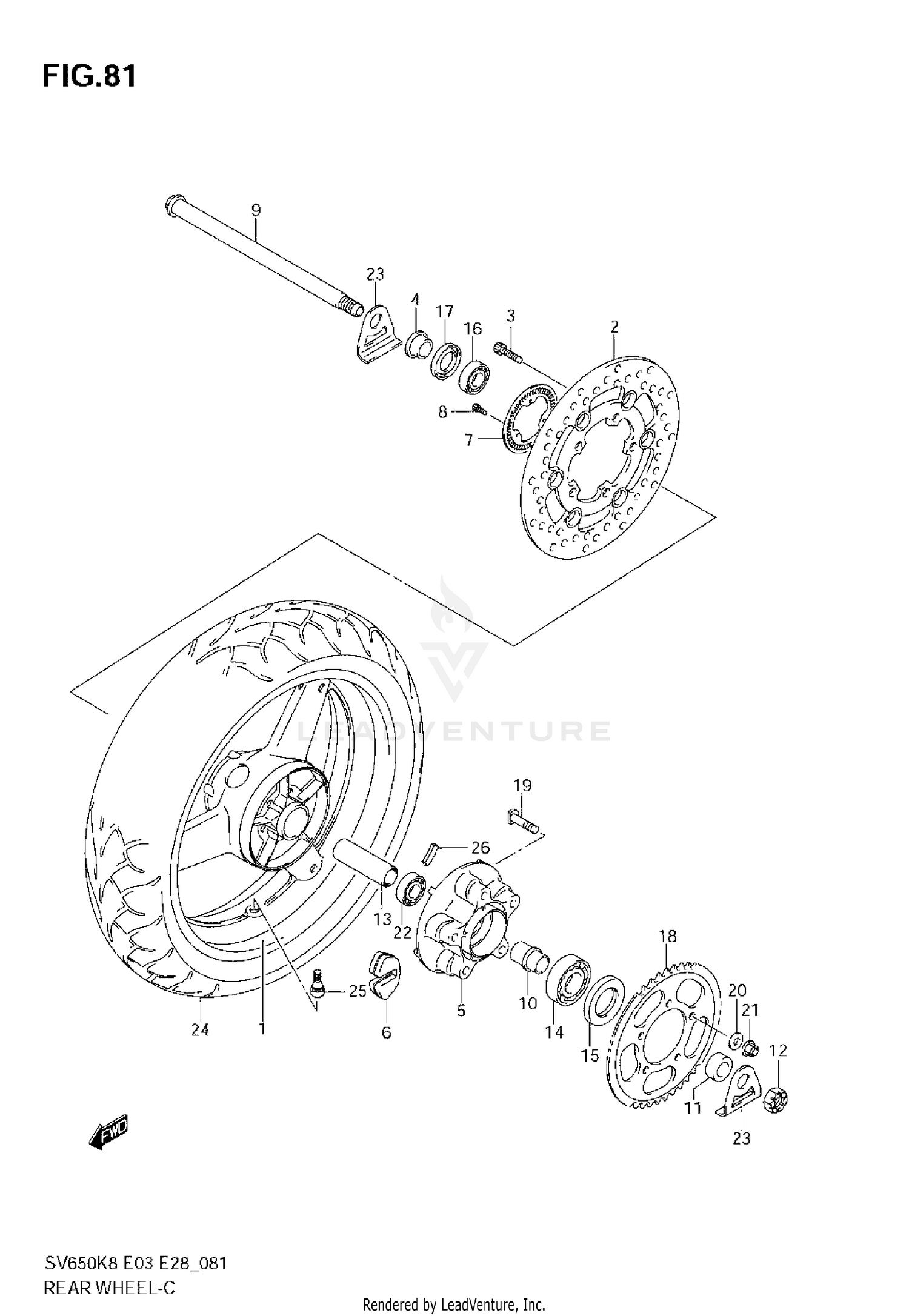

2008 Suzuki SV 650 REAR WHEEL (SV650AK8/SAK8) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL, REAR 17M/CXMT4.50 (SILVER)
64111-08F40-YMY
|
$796.00 | ||
|
Unavailable |
|||
|
#1
WHEEL, REAR 17M/CXMT4.50 (BLACK)
64111-08F40-019
|
$1,035.24 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
DISC, REAR BRAKE
69211-38G00
|
$265.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
BOLT (8X33)
09106-08148
|
$4.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
SPACER, AXLE RH
64741-22D00
|
$20.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
DRUM, REAR SPROCKET
64611-19F00
|
$178.01 | ||
|
Unavailable |
|||
|
#6
ABSORBER, HUB SHOCK
64651-27A01
|
$10.11 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
RING, SPEED SENSOR
64162-17G00
|
$17.98 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
BOLT
07130-05127
|
$2.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
AXLE, REAR
64711-17G00
|
$123.63 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
RETAINER, SPROCKET DRUM
64733-27A00
|
$23.59 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
SPACER, AXLE LH
64751-26E00
|
$21.51 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
NUT
08319-3118A
|
$20.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
SPACER, HUB BEARING
09180-20062
|
$16.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
BEARING, REAR HUB, LH
09262-20042
|
$23.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
OIL SEAL (27X47X7)
09285-28001
Superseded by 09285-28004
|
$12.45 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
BEARING (25X62X17)
09262-25073
|
$25.85 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
SEAL (35X62X8)
09285-35001
|
$10.11 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
SPROCKET, REAR (NT:45)
64511-32C00
|
$81.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
BOLT
09119-10043
|
$4.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
WASHER (10.5X22X2.3)
09160-10506
Superseded by 09160-10039
|
$2.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
NUT
08319-3110A
|
$2.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
BEARING
08123-62047
Superseded by 08123-6204B
|
$17.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
WASHER
61445-17G00
|
$7.53 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
TIRE, REAR, 160/60ZR17M/C (69W) (DUNLOP)
65110-17G00
|
$356.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
VALVE ASSY, WHEEL RIM (TR412)
43130-24A00
|
$9.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
BALANCER, WHEEL NO.1
55411-39G00
|
$5.11 | ||
|
Unavailable |
|||
|
#26
BALANCER, WHEEL NO.2
55412-39G00
|
$5.65 | ||
|
Unavailable |
|||
|
#26
BALANCER, WHEEL NO.3
55413-39G00
|
$6.21 | ||
|
Unavailable |
|||
