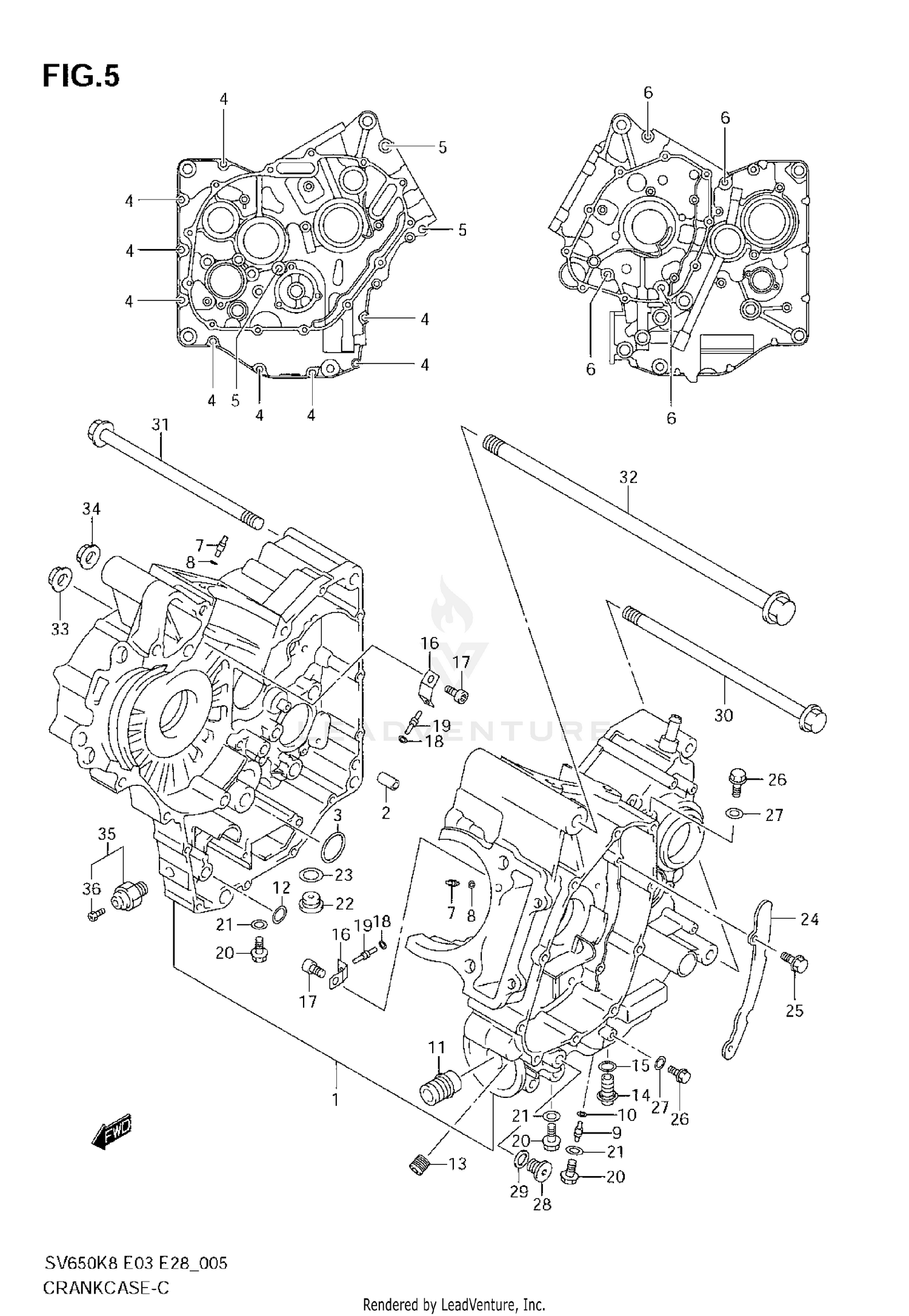

2008 Suzuki SV 650 CRANKCASE OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE SET
11301-20882
Superseded by 11301-20883
|
$2,579.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
PIN (11X20)
09206-11007
|
$2.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
O RING, CRANKCASE
09280-15007
|
$1.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
BOLT
01547-0650A
|
$2.31 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
BOLT
07120-0855A
|
$3.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
BOLT
07120-0880A
|
$4.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
JET, OIL GALLERY CYLINDER
09493-28010
|
$14.50 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
O RING (D:1.2,ID:4.0)
09280-04004
|
$1.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
JET, OIL GALLERY MISSION
09493-28010
|
$14.50 | ||
|
Unavailable |
|||
|
#10
O RING (D:1.2,ID:4.0)
09280-04004
|
$1.62 | ||
|
Unavailable |
|||
|
#11
UNION, OIL FILTER STAND
16591-06B01
|
$7.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
O RING (D:1.9,ID:12.6)
09280-12009
|
$3.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
JET, OIL GALLERY
11329-17G00
|
$5.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
PLUG
09247-12011
|
$4.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
GASKET (12.1X16.2X3.7)
09168-12002
|
$1.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
PLATE, PISTON COOLING JET
16438-19F00
|
$2.12 | ||
|
Unavailable |
|||
|
#17
BOLT (6X12)
09106-06075
|
$2.42 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
O RING (D:1.2,ID:4.0)
09280-04004
|
$1.62 | ||
|
Unavailable |
|||
|
#19
JET (13)
09493-26007
|
$14.37 | ||
|
Unavailable |
|||
|
#20
BOLT
01550-0812A
|
$2.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
GASKET
09168-08016
|
$1.63 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
PLUG
09248-16012
|
$4.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
GASKET (16X22X2)
09168-16002
|
$1.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
PLATE, OIL SEPARATOR
11323-19F00
|
$2.57 | ||
|
Unavailable |
|||
|
#25
BOLT
01547-0612A
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
BOLT
01550-0610A
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
GASKET (5.8X13X1.2)
09168-06023
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
PLUG
09247-12006
|
$2.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
GASKET
09168-12017
|
$1.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
BOLT (10X255)
09103-10137
|
$11.97 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
BOLT (10X225)
09103-10205
|
$16.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
BOLT (12X310)
09103-12054
|
$21.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#33
NUT
09159-10115
|
$3.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#34
NUT
09159-12054
|
$7.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35
SWITCH ASSY, OIL PRESSURE
37820-33D10
|
$36.31 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#36
BOLT
37822-33D00
|
$3.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
