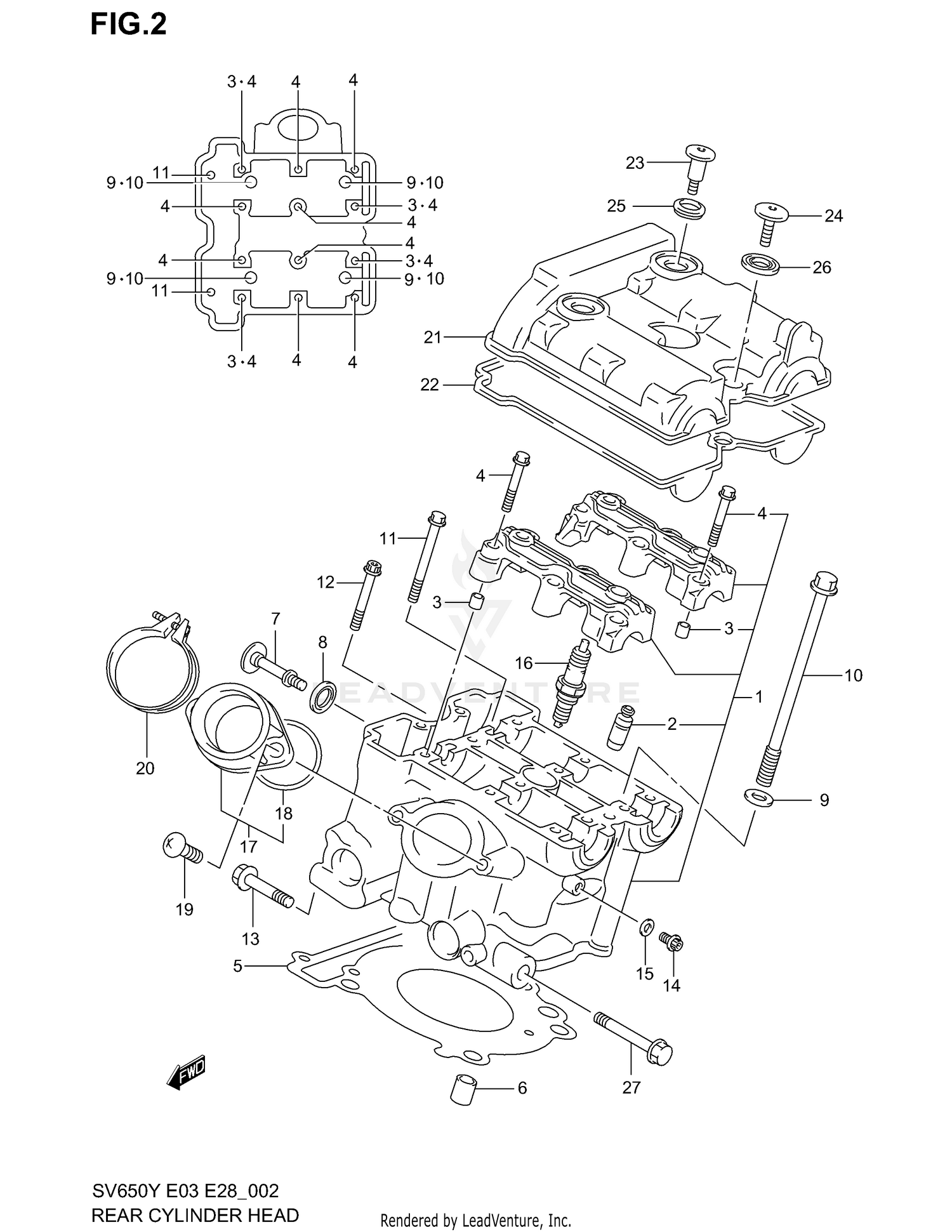

2002 Suzuki SV 650 REAR CYLINDER HEAD OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD ASSY,CYLIN
11103-20F00
Superseded by 11103-20F01
|
$1,113.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#1
HEAD ASSY, CYLINDER REAR
11103-20F20
Superseded by 11103-20F21
|
$677.09 | ||
|
Unavailable |
|||
|
#1
HEAD ASSY, CYLINDER REAR
11103-20F21
|
$677.09 | ||
|
Unavailable |
|||
|
#1
HEAD ASSY,CYLIN
11103-20F10
Superseded by 11103-20F11
|
$874.00 | ||
|
Unavailable |
|||
|
#1
HEAD ASSY, CYLINDER REAR
11103-20F30
|
$537.33 | ||
|
Unavailable |
|||
|
#1
HEAD ASSY, CYLINDER REAR
11103-20F31
|
$677.09 | ||
|
Unavailable |
|||
|
#2
GUIDE, VALVE
11115-18D72
|
$35.67 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
PIN (6.2X8X11)
09206-08001
|
$1.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
BOLT (6X39)
09103-06026
|
$1.67 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
GASKET, CYLINDER HEAD
11141-20F00
|
$45.06 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
PIN
04211-13189
|
$2.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
BOLT, CYLINDER HEAD SIDE FACE
11161-33E00
|
$10.24 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
WASHER, HEAD COVER
11191-13E00
|
$4.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
WASHER (10.5X19X2.0)
09160-10082
|
$1.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
BOLT (10X160)
09103-10272
|
$15.20 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
BOLT (6X70)
09103-06103
|
$2.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
BOLT
07120-06403
Superseded by 07120-0640B
|
$3.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
BOLT
01550-10557
|
$3.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
BOLT, OIL GALLERY
07120-06123
Superseded by 07120-0612B
|
$3.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
GASKET (5.8X13X1.2)
09168-06023
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
SPARK PLUG (NGK,CR8E)
09482-00456
|
$7.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
SPARK PLUG (DENSO,U24ESR-N)
09482-00457
|
$6.56 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
SPARK PLUG (NGK,CR9E)
09482-00458
|
$7.13 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
SPARK PLUG (DENSO,U27ESR-N)
09482-00459
|
$6.56 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
SPARK PLUG (NGK,CR10E)
09482-00460
|
$7.13 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
SPARK PLUG (DENSO,U31ESR-N)
09482-00461
|
$13.64 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
SPARK PLUG (NGK,CR7E)
09482-00516
|
$7.13 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
SPARK PLUG (DENSO,U22ESR-N)
09482-00515
|
$6.44 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
PIPE ASSY,INTAK
13102-20F00
Superseded by 13102-20F01
|
$49.45 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
.O RING (D:2.4,ID:47X42)
09280-46006
Superseded by 09280-46007
|
$6.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
SCREW
02122-06163
Superseded by 02122-0616A
|
$1.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
CLAMP
09402-56208
Superseded by 09402-56901
|
$5.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
COVER, CYLINDER HEAD REAR
11172-19F00
|
$93.68 | ||
|
Unavailable |
|||
|
#21
COVER, CYLINDER HEAD REAR
11172-19F20
|
$134.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
GASKET, CYLINDER HEAD COVER
11173-19F00
Superseded by 11173-19F01
|
$35.31 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
BOLT (7X17.5)
09106-07009
Superseded by 09106-07021
|
$4.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
BOLT (7X31)
09106-07010
|
$4.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
WASHER
09161-11008
|
$4.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
CUSHION, HEAD COVER BOLT
11192-13E00
|
$4.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
BOLT
01550-10807
|
$4.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
