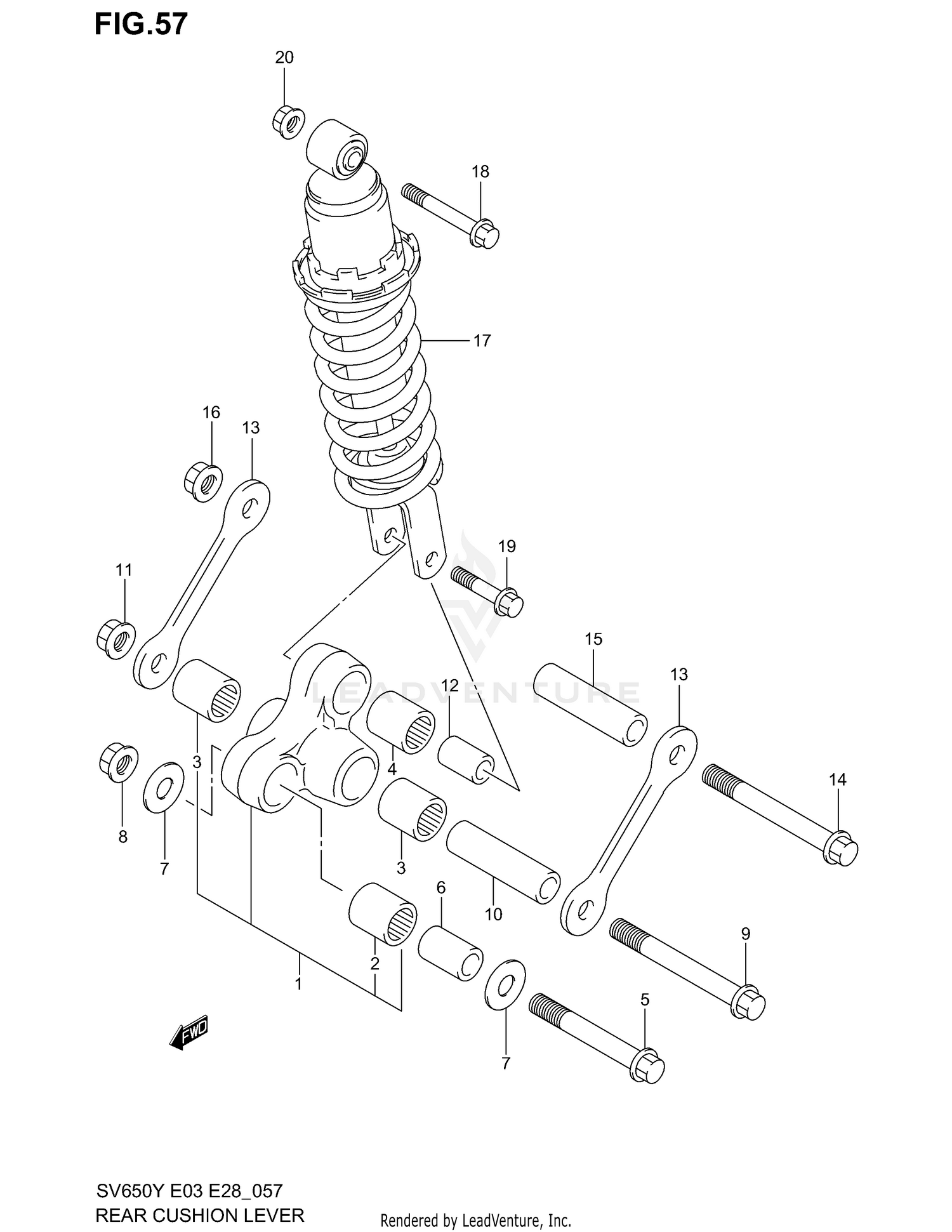

2002 Suzuki SV 650 REAR CUSHION LEVER OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LEVER SET, REAR CUSHION
62600-19880
|
$306.39 | ||
|
Unavailable |
|||
|
#2
.BEARING (20X27X30)
09263-20073
Superseded by 09263-20121
|
$17.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
BEARING, CENTER (20X27X23.5)
09263-20071
|
$25.85 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
.BEARING (17X24X26)
09263-17034
Superseded by 09263-17057
|
$20.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
BOLT, FRONT (12X78)
62658-19F00
|
$10.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
SPACER, FRONT (12X20X32)
62684-12C00
|
$16.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
WASHER
09160-12037
|
$3.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
NUT
08319-31128
Superseded by 08319-3112A
|
$3.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
BOLT, CENTER (12X96)
09103-12034
|
$8.70 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
SPACER, CENTER (12X20X68)
62626-19F00
|
$25.63 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
NUT
08319-31128
Superseded by 08319-3112A
|
$3.75 | ||
|
Unavailable |
|||
|
#12
SPACER, REAR (10X17X30)
62684-40A10
|
$12.58 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
ROD, REAR CUSHION
62641-20F00
|
$28.27 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
BOLT, ROD (12X96)
09103-12034
|
$8.70 | ||
|
Unavailable |
|||
|
#15
SPACER, ROD (12X20X68)
62626-19F00
|
$25.63 | ||
|
Unavailable |
|||
|
#16
NUT
08319-31128
Superseded by 08319-3112A
|
$3.75 | ||
|
Unavailable |
|||
|
#17
ABSORBER ASSY, REAR SHOCK (YELLOW)
62100-20F10-163
Superseded by 62100-20F11-163
|
$586.53 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
ABSORBER ASSY, REAR SHOCK (YELLOW)
62100-20F00-163
|
|||
|
Unavailable |
|||
|
#17
ABSORBER ASSY, REAR SHOCK (YELLOW)
62100-20F11-163
|
$586.53 | ||
|
Unavailable |
|||
|
#17
ABSORBER ASSY, REAR SHOCK (YELLOW)
62100-20F40-163
|
$463.66 | ||
|
Unavailable |
|||
|
#17
ABSORBER ASSY, REAR SHOCK (YELLOW)
62100-20F01-163
|
|||
|
Unavailable |
|||
|
#17
ABSORBER ASSY, REAR SHOCK (YELLOW)
62100-20F50-163
|
$467.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
BOLT, UPPER (10X70)
09103-10033
|
$6.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
BOLT, LOWER (10X48)
09103-10126
|
$4.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
NUT
08319-31107
|
$2.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
