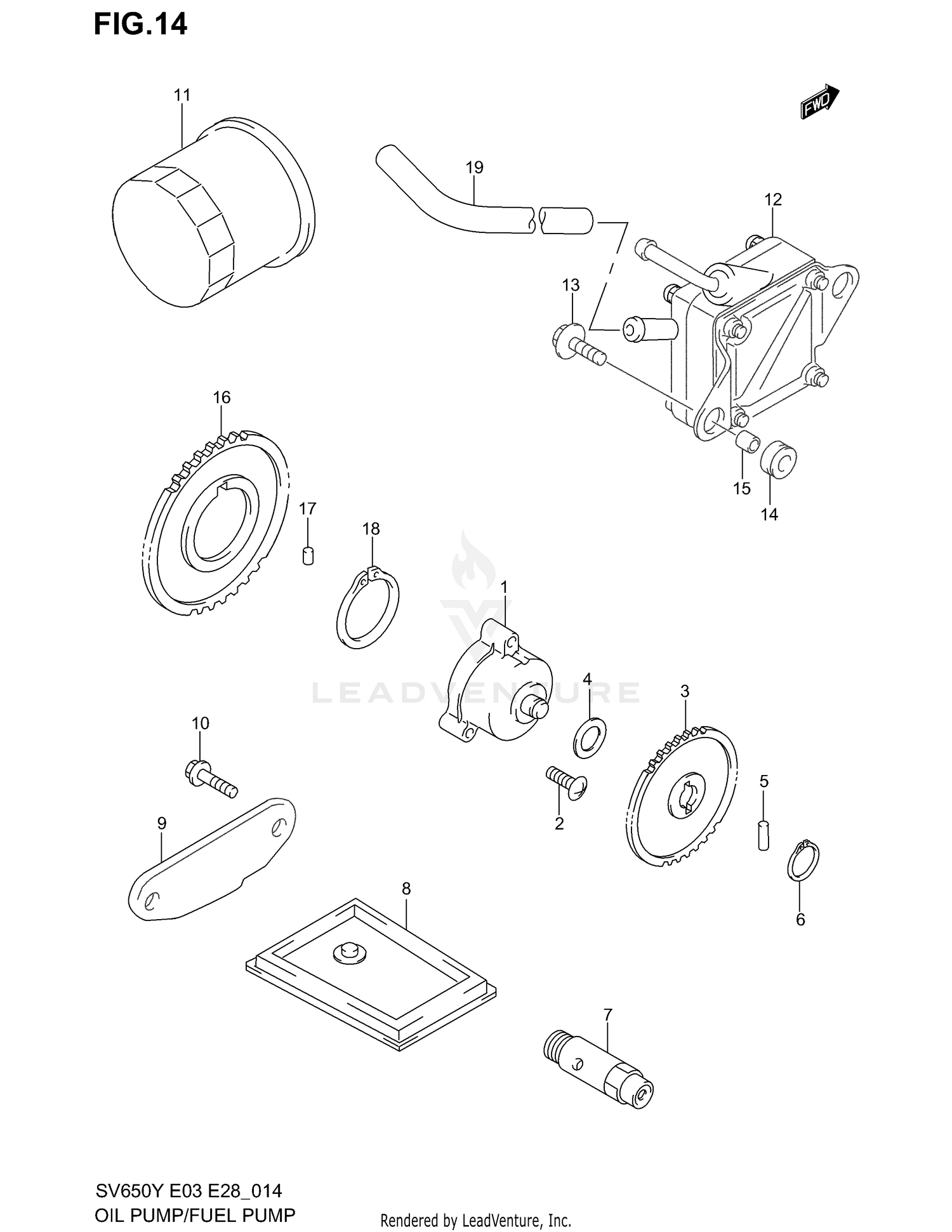

2002 Suzuki SV 650 OIL PUMP / FUEL PUMP OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY, ENGINE OIL
16400-20F00
|
$182.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
SCREW
02112-06253
Superseded by 02112-0625A
|
$1.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
GEAR, OIL PUMP DRIVEN (NT:34)
16331-48E00
|
$51.61 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
GEAR, ENG OIL PUMP DRIVEN (NT:34)
16331-19F00
|
$30.27 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
SHIM
09181-10158
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
PIN (4X18.5)
09261-04001
|
$1.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
CIRCLIP
08331-31106
Superseded by 08331-31109
|
$1.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
VALVE ASSY, OIL RELIEF
16440-17C20
|
$55.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
STRAINER, ENG OIL
16520-32E00
Superseded by 16520-32E01
|
$13.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
CAP, OIL STRAINER
16523-48E00
|
$10.10 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
BOLT
01547-06123
Superseded by 01547-0612B
|
$1.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
FILTER, ENGINE OIL
16510-34E00
Superseded by 16510-07J00
|
$14.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
PUMP ASSY,FUEL
15100-19F00
Superseded by 15100-19F01
|
$99.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
BOLT, FUEL PUMP
09116-06115
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
CUSHION, FUEL PUMP
09320-09036
|
$3.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
SPACER, FUEL PUMP
09180-06257
|
$2.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
GEAR, ENGINE OIL PUMP DRIVE
16321-19F00
|
$69.03 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
ROLLER (OD:6,L:6)
09261-06002
|
$1.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
CIRCLIP
08331-31383
|
$2.90 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
HOSE,5X10X600
09355-50105-600
Superseded by 44421-13ER0
|
$10.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
