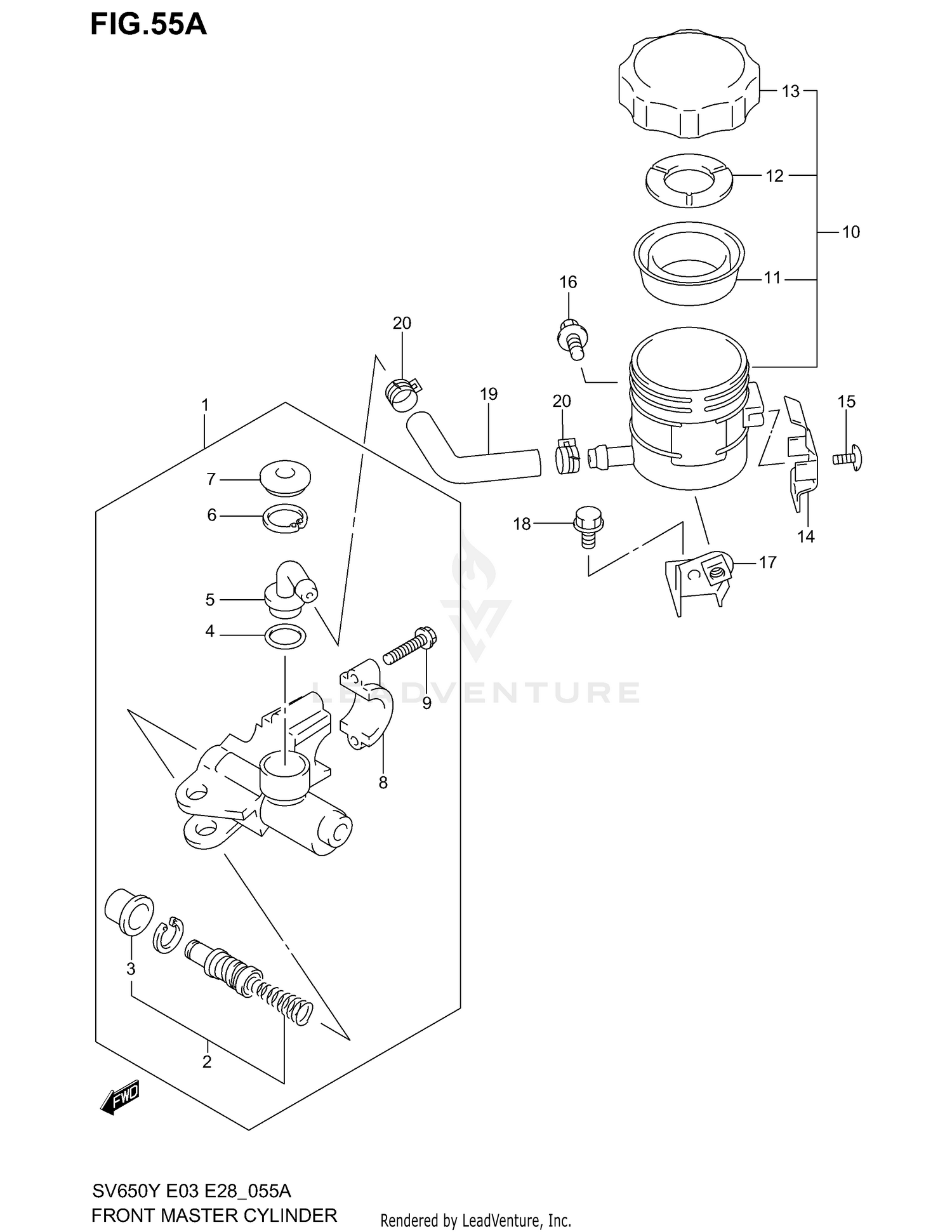

2002 Suzuki SV 650 FRONT MASTER CYLINDER (SV650SX/SY/SK1/SK2) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER ASSY, FRONT MASTER
59600-32C01
|
$256.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
PISTON/CUP SET
59600-45860
|
$40.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
BOOT
59666-44300
|
$6.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
O RING
69686-34200
|
$3.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
CONNECTOR
59672-17C00
|
$9.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
CIRCLIP
69674-00B20
|
$4.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
COVER, DUST
59673-17C00
|
$8.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
HOLDER (BLACK)
59671-36500
|
$12.58 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
BOLT HOLDER SET
59675-19C00
|
$3.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
TANK ASSY, RESERVOIR
59740-07D00
|
$62.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
DIAPHRAGM
59667-18441
|
$10.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
PLATE, DIAPHRAGM
59668-18441
|
$4.64 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
CAP
59669-07D00
|
$27.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
PLATE, RESERVOIR TANK CAP
59743-17C00
|
$9.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
SCREW
02142-04103
Superseded by 02142-0410A
|
$1.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
BOLT, CLAMP
01550-06123
Superseded by 01550-0612A
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
BRACKET,RES TAN
59750-33E01
Superseded by 59750-33E0V
|
$8.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
BOLT, CLAMP
01550-06123
Superseded by 01550-0612A
|
$1.94 | ||
|
Unavailable |
|||
|
#19
HOSE, FRONT RESERVOIR TANK
59731-32C00
|
$16.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
CLAMP, RESERVOIR TANK
59735-17C00
|
$5.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
