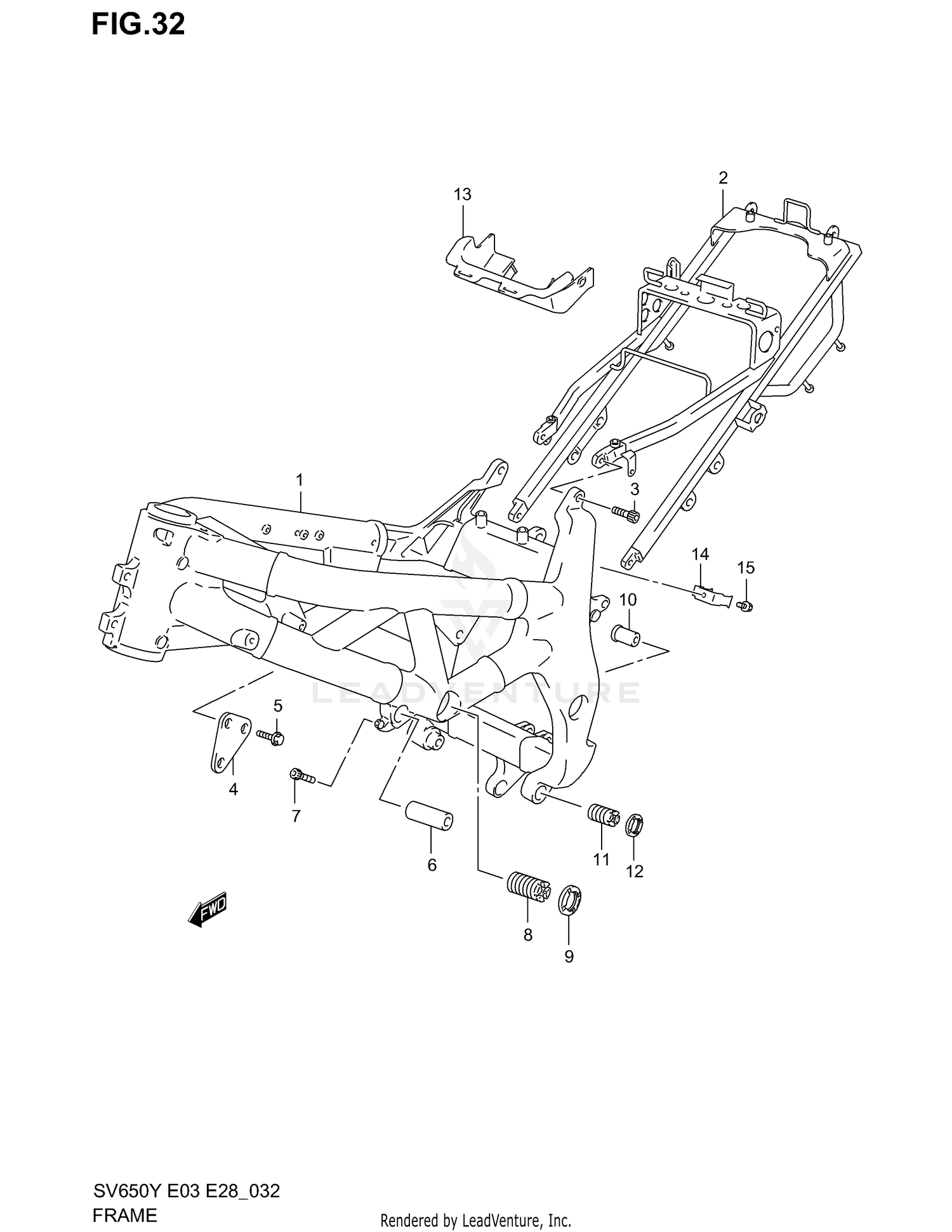

2002 Suzuki SV 650 FRAME (MODEL X/Y/K1) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME (SILVER)
41100-19F01-13L
Superseded by 41100-19F02-13L
|
$2,799.56 | ||
|
Unavailable |
|||
|
#1
FRAME (SILVER)
41100-19F02-13L
|
$2,799.56 | ||
|
Unavailable |
|||
|
#1
FRAME (SILVER)
41100-19F10-13L
|
$2,652.39 | ||
|
Unavailable |
|||
|
#2
RAIL, SEAT
41200-19F01
Superseded by 41200-19F10
|
$611.69 | ||
|
Unavailable |
|||
|
#3
BOLT
07130-10303
Superseded by 07130-1030B
|
$4.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
PLATE, MOUNT FRONT RH
41991-19F00
|
$9.03 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
BOLT
01550-08203
Superseded by 01550-0820A
|
$2.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
SPACER, HEAD MOUNT
41198-19F00
|
$23.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
BOLT
07130-08307
|
$3.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
BOLT, CRANKCASE ADJUST
41921-19F00
|
$40.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
NUT,CRANK CASE ADJUST CTR
41922-19F00
Superseded by 41922-19F20
|
$16.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
SPACER, CRANKCASE UPPER
41941-19F00
Superseded by 41941-19F01
|
$35.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
SPACER, CRANKCASE REAR UPPER
41941-19F01
|
$35.32 | ||
|
Unavailable |
|||
|
#11
BOLT, CRANKCASE ADJUST
41921-33E11
|
$43.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
NUT, CRANKCASE ADJUST
41922-33E00
|
$19.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
HOLDER, ELECTRIC PART
47411-19F01
|
$24.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
PLATE,RELAY
47413-19F00
Superseded by 47413-19F01
|
$5.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
BOLT, CLAMP
01550-06123
Superseded by 01550-0612A
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
