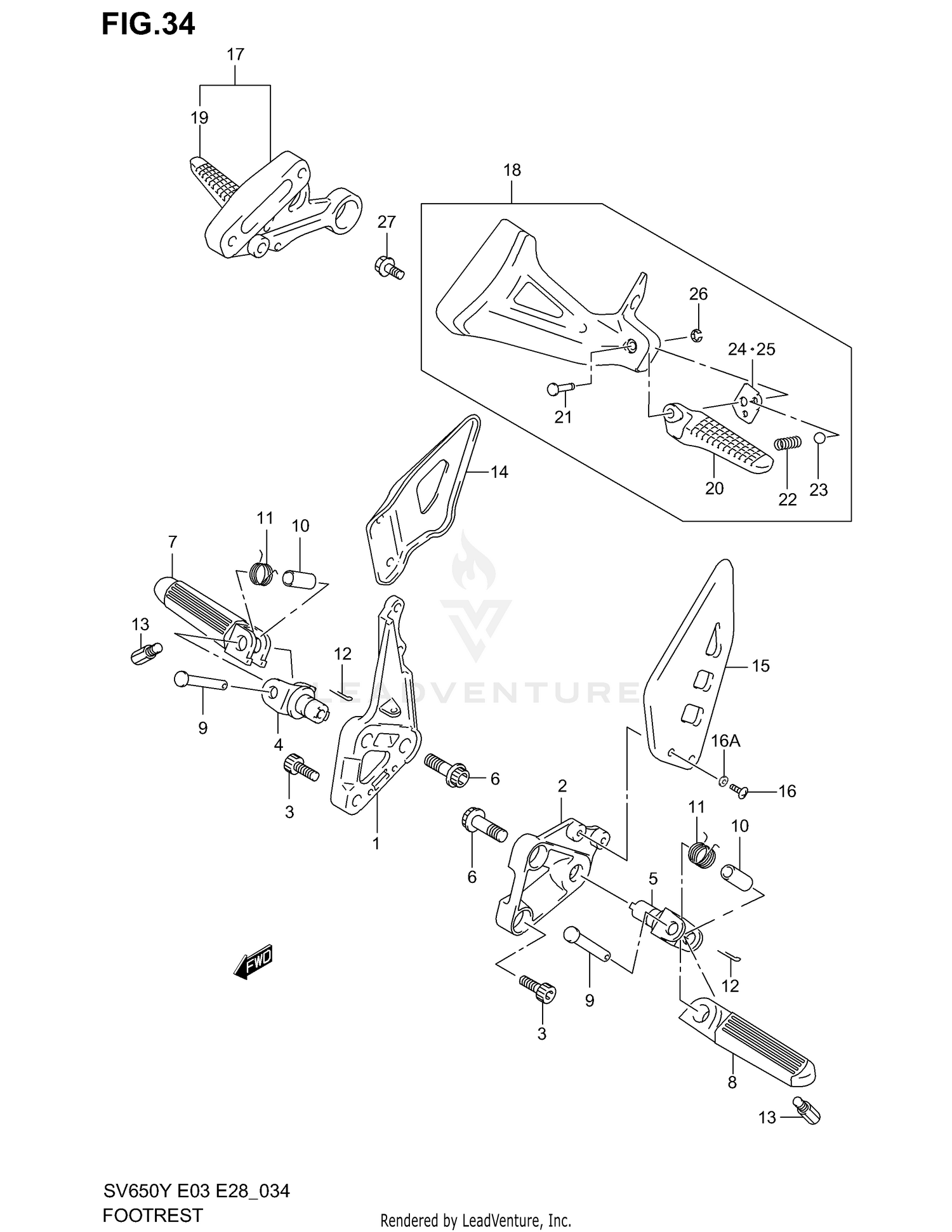

2002 Suzuki SV 650 FOOTREST OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET, FRONT FOOTREST RH
43511-19F00
|
$104.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#1
BRACKET, FRONT FOOTREST RH
43511-33E10
|
$125.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
BRACKET, FRONT FOOTREST LH
43521-19F00
|
$104.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
BRACKET, FRONT FOOTREST LH
43521-33E00
|
$95.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
BOLT
07130-08203
Superseded by 07130-0820B
|
$3.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
HOLDER, FOOTREST RH
43530-17E01
|
$49.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
HOLDER, FOOTREST LH
43540-17E00
|
$47.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
BOLT
09106-10064
|
$4.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
BAR, FOOTREST RH
43510-02F11
|
$52.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
BAR, FOOTREST LH
43520-02F11
|
$51.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
PIN
09200-08057
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
SPACER (8.1X12X22)
09180-08149
|
$5.53 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
SPRING
09448-18022
|
$3.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
PIN
04111-25158
Superseded by 04111-2515A
|
$1.25 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
BOLT, BANK SENSOR
43576-07D01
|
$9.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
GUARD, FRONT FOOTREST RH
43571-33E01
|
$44.19 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
GUARD, FRONT FOOTREST LH
43576-19F00
|
$52.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
SCREW (5X16)
09139-05054
|
$4.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16A
WASHER
09161-08018
|
$2.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
FOOTREST ASSY, PILLION RH
43600-19F00
|
$216.72 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
FOOTREST ASSY, PILLION LH
43700-19F00
|
$216.72 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
BAR, PILLION FOOTREST RH
43611-33E10
Superseded by 43611-33E11
|
$48.74 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
BAR, PILLION FOOTREST RH
43611-33E11
|
$48.74 | ||
|
Unavailable |
|||
|
#20
BAR, PILLION FOOTREST LH
43621-33E10
Superseded by 43621-33E11
|
$48.74 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
BAR, PILLION FOOTREST LH
43621-33E11
|
$48.74 | ||
|
Unavailable |
|||
|
#21
PIN
09208-06007
|
$3.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
SPRING
09440-05005
|
$1.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
BALL
06111-07004
|
$1.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
PLATE, PILLION RH
43816-33E21
|
$6.13 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
PLATE, LH
43826-33E21
Superseded by 43826-33E22
|
$6.13 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
PLATE, PILLION LH
43826-33E22
|
$6.13 | ||
|
Unavailable |
|||
|
#26
E RING
08332-11043
Superseded by 08332-1104A
|
$1.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
BOLT
01550-08163
Superseded by 01550-0816A
|
$2.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
