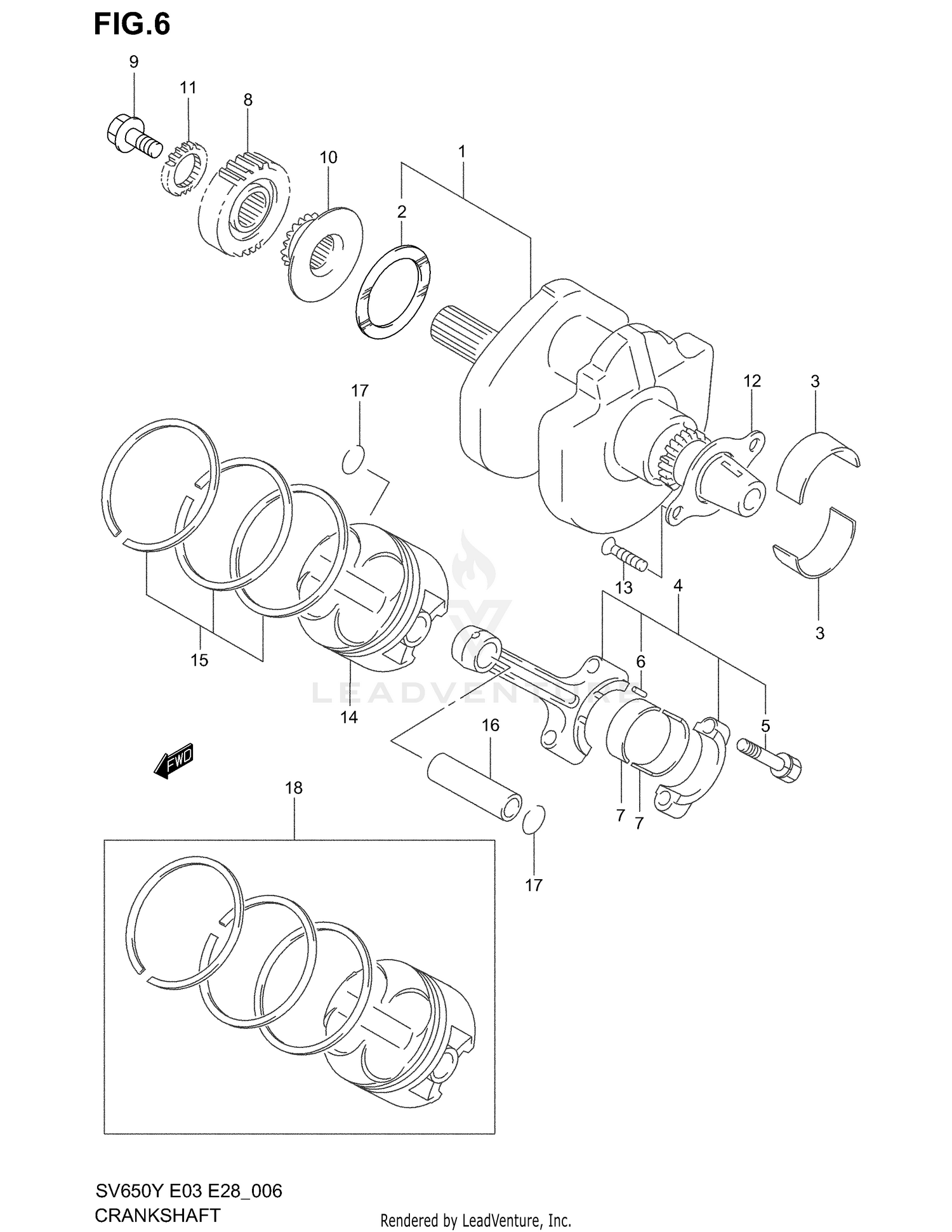

2002 Suzuki SV 650 CRANKSHAFT OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT SET
12000-20840
|
$1,380.31 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
WASHER, THRUST (T:1.925)
12228-19F00-0A0
|
$21.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
WASHER, THRUST (T:1.95)
12228-19F00-0B0
|
$23.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
WASHER, THRUST (T:1.975)
12228-19F00-0C0
|
$23.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
WASHER, THRUST (T:2.0)
12228-19F00-0D0
|
$23.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
WASHER, THRUST (T:2.025)
12228-19F00-0E0
|
$23.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
WASHER, THRUST (T:2.05)
12228-19F00-0F0
|
$23.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
WASHER, THRUST (T:2.075)
12228-19F00-0G0
|
$16.93 | ||
|
Unavailable |
|||
|
#2
WASHER, THRUST (T:2.1)
12228-19F00-0H0
|
$23.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
WASHER, THRUST (T:2.125)
12228-19F00-0I0
|
$13.69 | ||
|
Unavailable |
|||
|
#2
WASHER, THRUST (T:2.15)
12228-19F00-0J0
|
$13.69 | ||
|
Unavailable |
|||
|
#3
BEARING, CRANKSHAFT (GREEN)
12229-19F10-0A0
Superseded by 12229-27G00-0A0
|
$20.42 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
BEARING, CRANKSHAFT (BLACK)
12229-19F10-0B0
Superseded by 12229-27G00-0B0
|
$19.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
BEARING, CRANKSHAFT (BROWN)
12229-19F10-0C0
Superseded by 12229-27G00-0C0
|
$20.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
CONNECTING ROD ASSY
12160-20F00
|
$184.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
BOLT, CONNECTING ROD
12163-17C50
|
$18.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
PIN, CONNECTING ROD
12165-27A50
|
$1.51 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
BEARING, CRANK PIN (GREEN)
12164-46E01-0A0
|
$17.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
BEARING, CRANK PIN (BLACK)
12164-46E01-0B0
|
$17.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
BEARING, CRANK PIN (BROWN)
12164-46E01-0C0
|
$17.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
BEARING, CRANK PIN (YELLOW)
12164-46E01-0D0
|
$17.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
GEAR, PRIMARY DRIVE
21111-20F00
|
$73.16 | ||
|
Unavailable |
|||
|
#9
BOLT, PRIMARY DRIVE GEAR
21112-19F00
Superseded by 09103-10338
|
$7.11 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
SPROCKET, CAM CHAIN DRIVE
12731-19F00
|
$62.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
GEAR, WATER PUMP DRIVE
17451-19F00
|
$18.37 | ||
|
Unavailable |
|||
|
#12
RETAINER, CRANKSHAFT BRG LH
12541-20F00
|
$11.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
SCREW
09126-06011
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
PISTON
12111-20F00-0F0
|
$105.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
RING SET, PISTON
12140-20F00
|
$46.98 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
PIN,PISTON
12151-05A00
|
$16.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
CIRCLIP
09381-20004
|
$1.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
PISTON SET (OS:0.5)
12100-20F00-050
|
$162.25 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
PISTON SET (OS:1.0)
12100-20F00-100
|
$76.87 | ||
|
Unavailable |
|||
