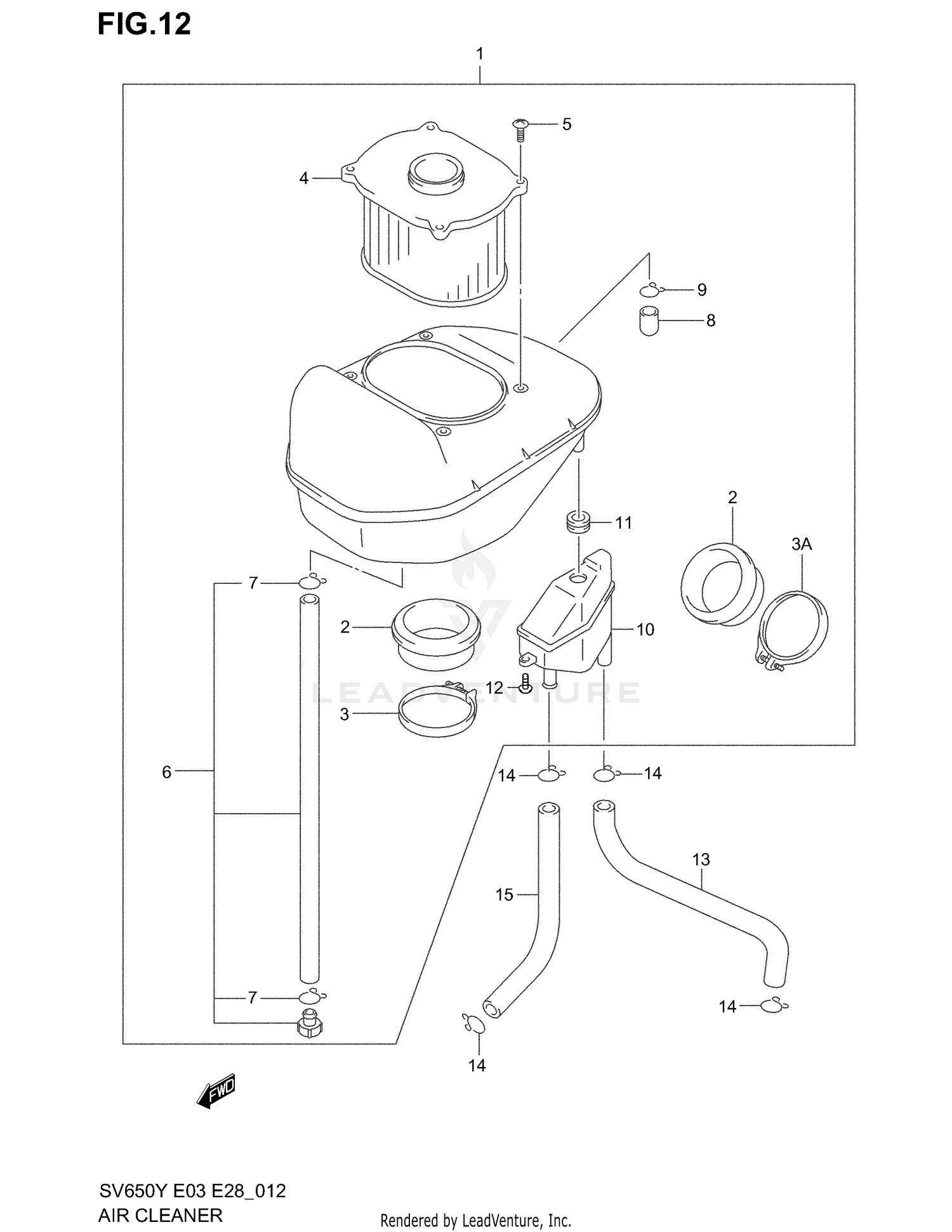

2002 Suzuki SV 650 AIR CLEANER OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLEANER ASSY, AIR
13700-20F00
Superseded by 13700-20F01
|
$297.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#1
CLEANER ASSY, AIR
13700-20F10
Superseded by 13700-20F01
|
$297.55 | ||
|
Unavailable |
|||
|
#1
CLEANER ASSY, AIR
13700-20F01
|
$297.55 | ||
|
Unavailable |
|||
|
#1
CLEANER ASSY, AIR
13700-20F11
Superseded by 13700-20F01
|
$297.55 | ||
|
Unavailable |
|||
|
#2
TUBE,OUTLET
13881-20F00
Superseded by 13881-20F01
|
$18.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
CLAMP, CUTLET TUBE FRONT
13170-20F10
|
$7.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3A
CLAMP
13170-20F00
Superseded by 09402-72203
|
$6.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3A
CLAMP, OUTLET TUBE REAR
09402-72203
|
$6.88 | ||
|
Unavailable |
|||
|
#4
FILTER, AIR CLEANER
13780-20F00
|
$53.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
SCREW, REAR
02142-05203
Superseded by 02142-0520B
|
$1.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
TUBE,DRAIN
13870-19F00
Superseded by 13870-20F12
|
$9.53 | ||
|
Unavailable |
|||
|
#6
TUBE, DRAIN
13870-20F10
|
$7.83 | ||
|
Unavailable |
|||
|
#6
TUBE,DRAIN
13870-20F11
Superseded by 13870-20F12
|
$9.53 | ||
|
Unavailable |
|||
|
#7
CLIP
09401-14301
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
PLUG
13859-41B10
|
$7.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
CLIP
09401-14301
|
$2.00 | ||
|
Unavailable |
|||
|
#10
TANK, OIL RETURN
13840-20F00
Superseded by 13840-20F01
|
$45.76 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
TANK, OIL RETURN
13840-20F01
|
$45.76 | ||
|
Unavailable |
|||
|
#11
GROMMET
09308-13001
|
$1.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
SCREW
03142-05163
Superseded by 03141-0516A
|
$1.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
TUBE,BREATHER N
13851-20F00
Superseded by 13894-47D00
|
$19.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
TUBE,BREATHER N
13851-20F10
Superseded by 13894-47D00
|
$19.80 | ||
|
Unavailable |
|||
|
#14
CLIP
09401-15101
|
$2.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
TUBE, BREATHER CYLINDER (11X16X600)
09355-11165-600
|
$13.20 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
