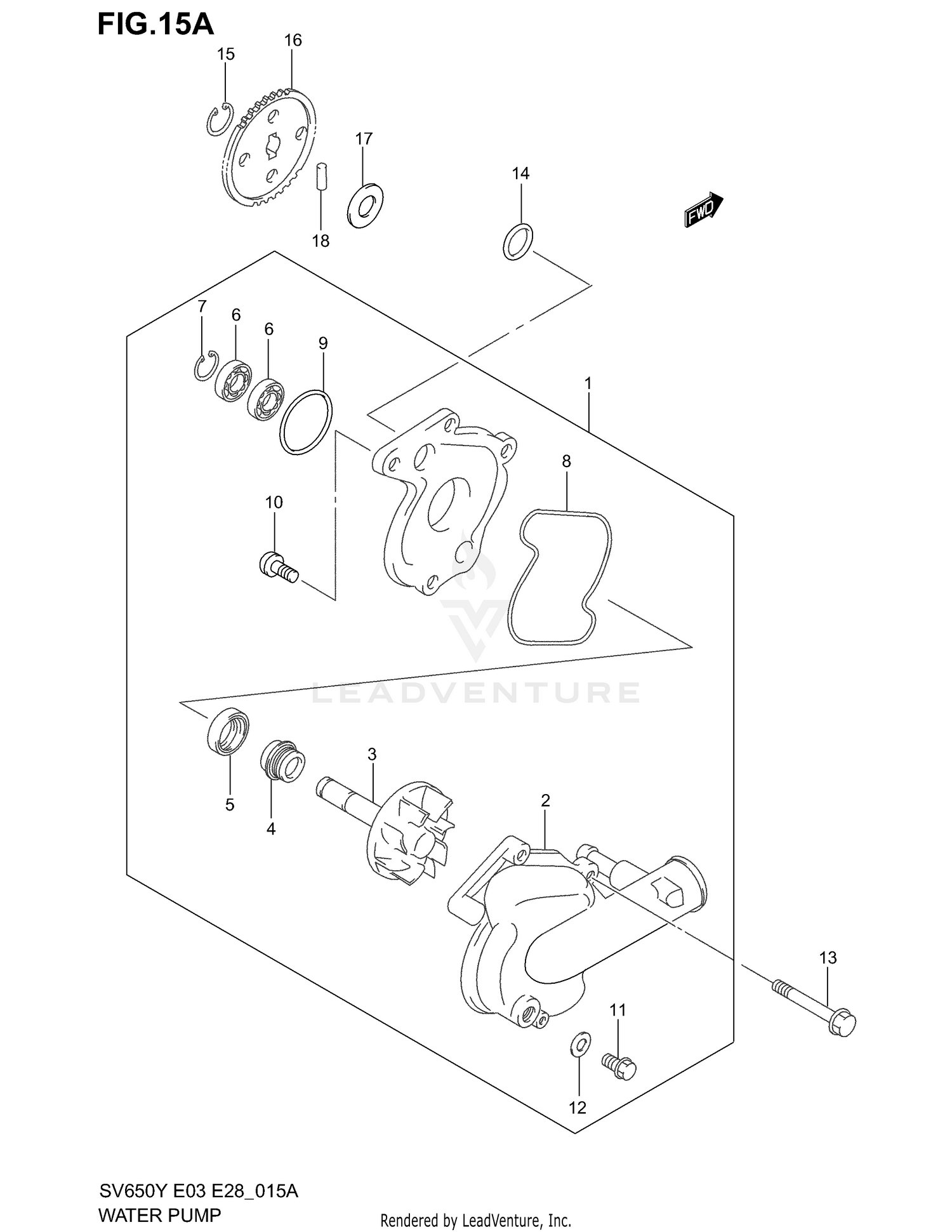

2001 Suzuki SV 650 WATER PUMP (MODEL K1/K2) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NO DESCRIPTION AVAILABLE
17400-19F10
Superseded by 17400-19F61
|
$232.72 | ||
|
Unavailable |
|||
|
#1
NO DESCRIPTION AVAILABLE
17400-19F11
Superseded by 17400-19F61
|
$232.72 | ||
|
Unavailable |
|||
|
#2
CASE, WATER PUMP
17411-19F00
|
$99.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
CASE, WATER PUMP
17411-19F11
|
$86.83 | ||
|
Unavailable |
|||
|
#3
IMPELLER/SHAFT
17491-19F10
|
$50.96 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
.SEAL,WATER PUMP SHAFT MECH
17470-02F10
Superseded by 17470-02F11
|
$30.27 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
OIL SEAL (10X21X5)
09283-10004
|
$4.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
BEARING
08110-69000
|
$19.19 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
E RING
08332-11086
Superseded by 08332-1108A
|
$1.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
O RING
17418-19F00
|
$6.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
O RING
17435-33400
|
$15.82 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
SCREW
02112-06163
Superseded by 02112-0616A
|
$1.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
BOLT, DRAIN
17415-14300
|
$3.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
GASKET (8.2X14X1)
09168-08008
Superseded by 09168-08016
|
$1.63 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
BOLT
09103-06206
|
$4.05 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
O RING (D:2.4,ID:21.8)
09280-22001
|
$1.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
CIRCLIP
08331-31106
Superseded by 08331-31109
|
$1.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
GEAR, WATER PUMP DRIVEN
17461-19F00
|
$39.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
SHIM
09181-10158
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
ROLLER
09261-04002
|
$1.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
