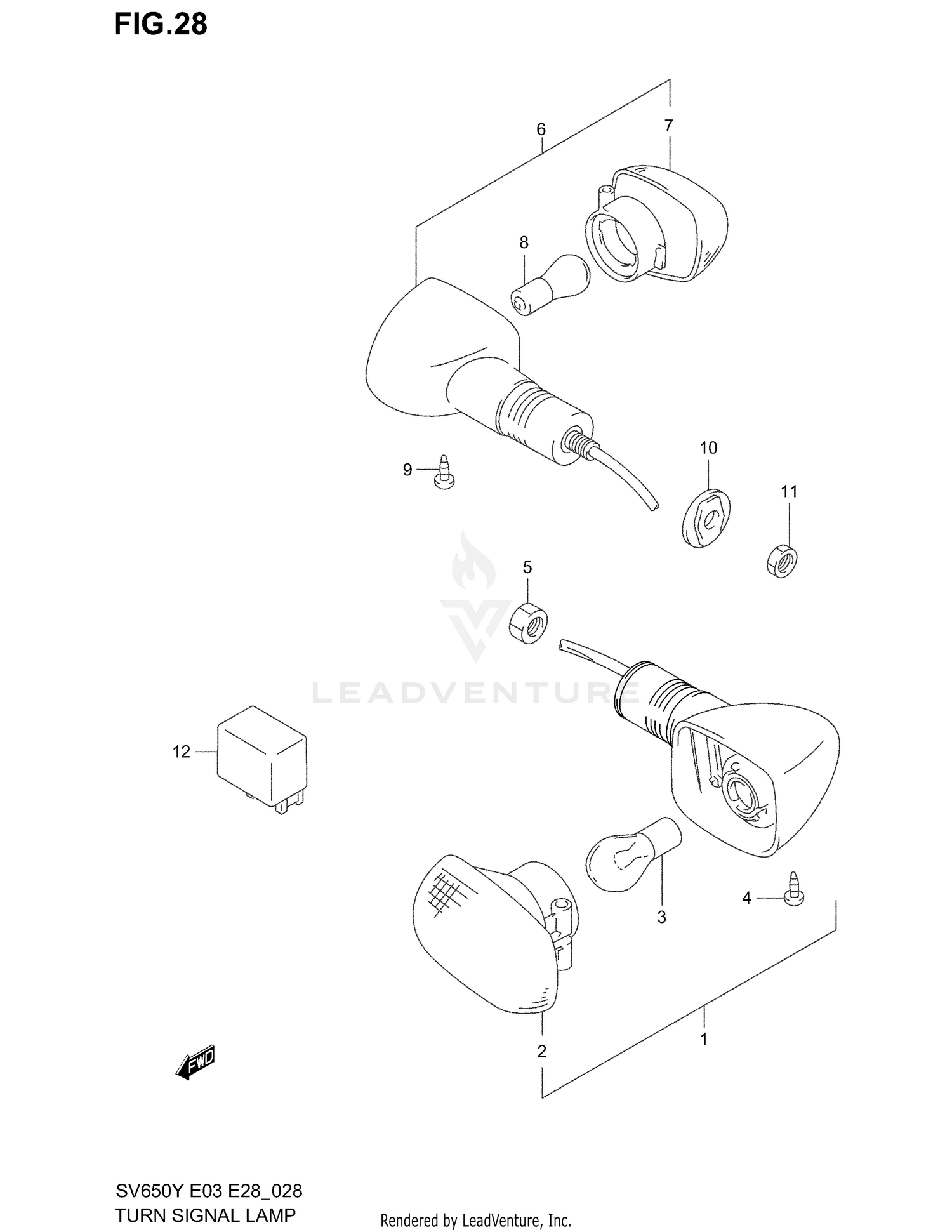

2001 Suzuki SV 650 TURNSIGNAL LAMP (SV650X/Y/K1/K2) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY, FRONT TURNSIGNAL RH
35601-20F30
|
$99.85 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#1
LAMP ASSY, FRONT TURNSIGNAL LH
35602-20F30
|
$99.85 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
LAMP UNIT
35610-33E00
|
$28.43 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
BULB (12V,21W)
09471-12045
|
$3.25 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
SCREW
03242-04123
Superseded by 03242-0412B
|
$2.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
NUT
08316-10103
Superseded by 08316-1010B
|
$2.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
LAMP ASSY, REAR
35603-33E10
Superseded by 35603-33E20
|
$87.70 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
LAMP ASSY,REAR
35604-33E10
Superseded by 35604-33E20
|
$102.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
LAMP UNIT
35610-33E00
|
$28.43 | ||
|
Unavailable |
|||
|
#8
BULB (12V,21W)
09471-12045
|
$3.25 | ||
|
Unavailable |
|||
|
#9
SCREW
03242-04123
Superseded by 03242-0412B
|
$2.52 | ||
|
Unavailable |
|||
|
#10
SPACER, REAR TURNSIGNAL
35695-17C00
|
$4.17 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
NUT
08310-00103
Superseded by 08310-0010A
|
$1.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
RELAY ASSY,TURNSIGNAL LAMP
38610-03F00
Superseded by 38610-03F01
|
$89.74 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
