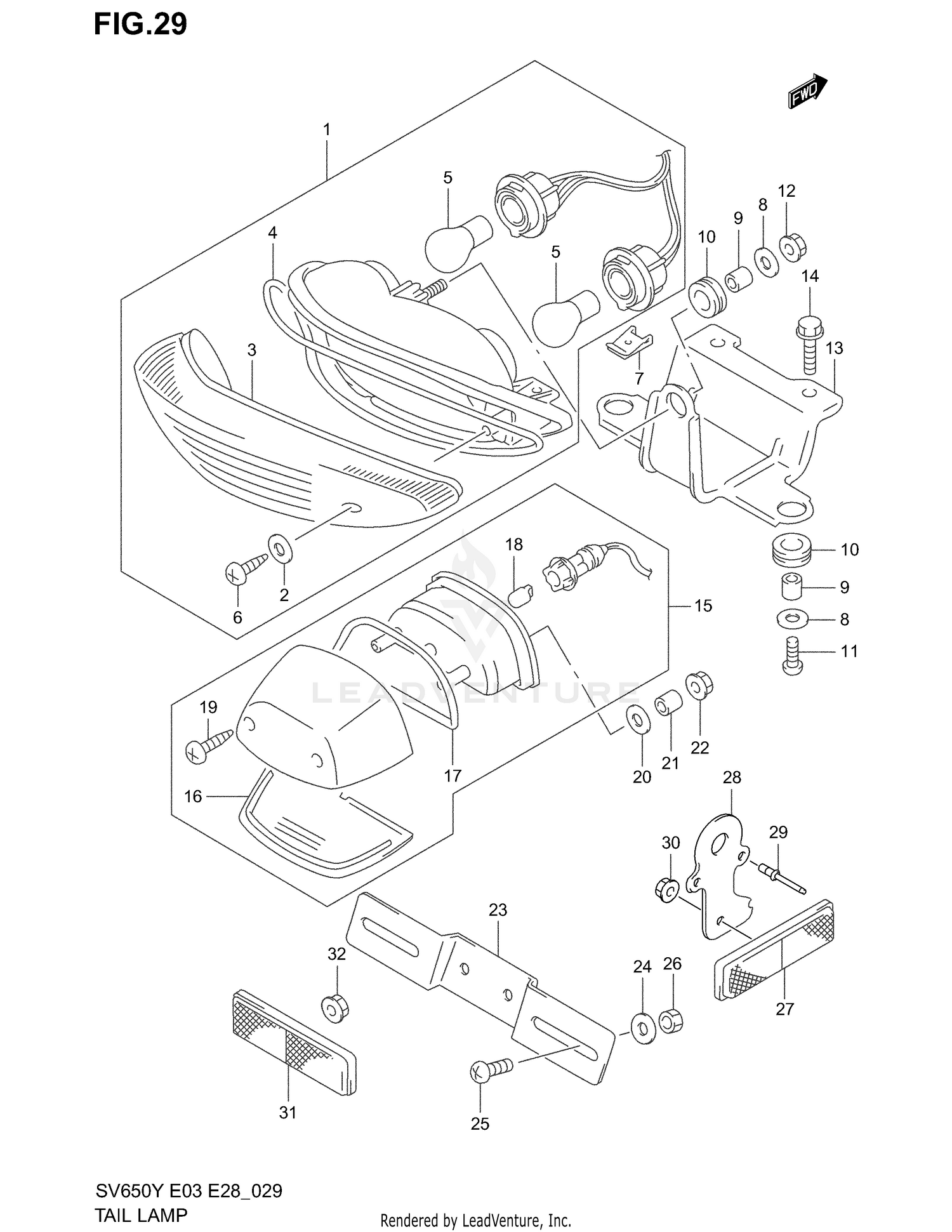

2001 Suzuki SV 650 TAIL LAMP OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY, REAR COMBINATION
35710-02F30
|
$94.72 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
GASKET
35627-43010
|
$2.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
LENS
35712-02F30
|
$26.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
GASKET
35713-02F00
|
$6.74 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
BULB (12V,21/5W)
09471-12128
|
$6.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
SCREW
03211-04207
|
$1.25 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
NUT
09148-05020
|
$1.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
WASHER (6.5X20X1.6)
09160-06088
|
$1.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
SPACER (6.5X10X9)
09180-06285
|
$2.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
CUSHION
09320-09009
|
$4.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
SCREW
03541-05203
Superseded by 03541-0520A
|
$1.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
NUT
08316-10063
Superseded by 08316-1006B
|
$2.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
BRACKET, REAR COMBINATION
35726-19F00
|
$15.20 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
BOLT, CLAMP
01550-06123
Superseded by 01550-0612A
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
LAMP ASSY, LICENSE
35910-02F00
|
$125.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
LENS
35912-02F00
|
$10.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
GASKET
35913-02F00
|
$3.66 | ||
|
Unavailable |
|||
|
#18
BULB (12V5W)
09471-12081
Superseded by 09471-12216
|
$5.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
SCREW
03211-04163
Superseded by 03211-0416A
|
$1.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
WASHER (6.5X20X1.6)
09160-06088
|
$1.62 | ||
|
Unavailable |
|||
|
#21
SPACER (5.5X9.5X11.5)
09180-05054
|
$2.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
NUT
08316-10053
Superseded by 08316-1005A
|
$2.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
BRACKET, LICENSE PLATE
35927-48B30
|
$12.43 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
WASHER (6.5X20X1.6)
09160-06088
|
$1.62 | ||
|
Unavailable |
|||
|
#25
SCREW
02142-06123
Superseded by 02142-0612A
|
$1.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
NUT
08316-10063
Superseded by 08316-1006B
|
$2.47 | ||
|
Unavailable |
|||
|
#27
REFLECTOR ASSY, RR SIDE
35970-07F00
Superseded by 35970-07F01
|
$21.61 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
BRACKET, REAR SIDE RR
35975-19F00
|
$4.13 | ||
|
Unavailable |
|||
|
#29
RIVET, REAR SIDE
09229-04038
|
$0.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
NUT
08310-00053
Superseded by 08310-0005A
|
$1.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
REFLECTOR ASSY, RR SIDE
35970-07F00
Superseded by 35970-07F01
|
$21.61 | ||
|
Unavailable |
|||
|
#32
NUT
08316-10053
Superseded by 08316-1005A
|
$2.15 | ||
|
Unavailable |
|||
