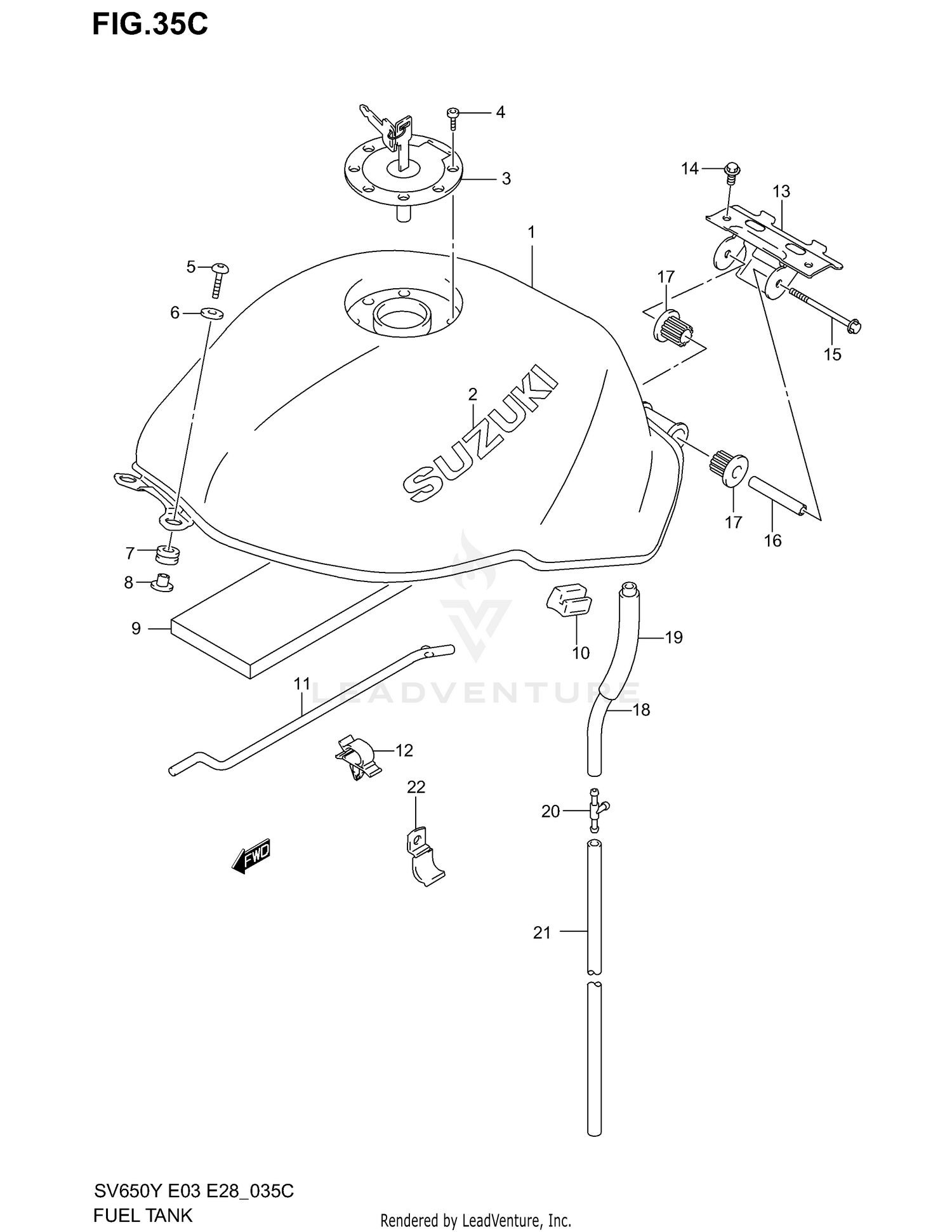

2001 Suzuki SV 650 FUEL TANK (MODLE K2) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK ASSY,FUEL
44100-20F00-Y7L
Superseded by 44110-19F00-13L
|
$734.69 | ||
|
Unavailable |
|||
|
#1
TANK ASSY,FUEL
44100-20F00-Y9H
Superseded by 44110-19F00-13L
|
$734.69 | ||
|
Unavailable |
|||
|
#1
TANK ASSY, FUEL (BLUE)
44100-20F00-YC2
|
$874.05 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#1
TANK ASSY, FUEL (SILVER)
44100-20F00-YD8
|
$785.73 | ||
|
Unavailable |
|||
|
#1
TANK ASSY, FUEL (BLACK)
44100-20F10-Y7L
|
$733.60 | ||
|
Unavailable |
|||
|
#1
TANK ASSY, FUEL (YELLOW)
44100-20F10-Y9H
|
$785.73 | ||
|
Unavailable |
|||
|
#1
TANK ASSY, FUEL (BLUE)
44100-20F10-YC2
|
$709.41 | ||
|
Unavailable |
|||
|
#1
TANK ASSY, FUEL (SILVER)
44100-20F10-YD8
|
$609.02 | ||
|
Unavailable |
|||
|
#2
EMBLEM, FUEL TANK (GRAY)
68111-42E20-1ZY
|
$21.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
EMBLEM, FUEL TANK (GRAY)
68111-42E20-20G
|
$21.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
CAP SET,FUEL TA
44200-33870
Superseded by 44200-33871
|
$195.67 | ||
|
Unavailable |
|||
|
#3
CAP SET, FUEL TANK
44200-33890
|
$283.74 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
BOLT
09106-05017
|
$2.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
SCREW, FRONT
09139-06029
|
$5.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
WASHER
09160-06054
|
$1.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
CUSHION,FUEL TA
44511-19F00
Superseded by 44511-19F01
|
$5.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
CUSHION, LOWER
44512-19F00
|
$7.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
SHIELD, TANK FRONT
44194-19F00
|
$40.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
CUSHION, SIDE
44559-19F00
|
$12.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
STAY, FUEL TANK
44574-33E01
|
$15.92 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
CLAMP
09403-05310
|
$2.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
BRACKET, FUEL TANK REAR
44550-19F10
|
$55.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
BOLT
01550-08163
Superseded by 01550-0816A
|
$2.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
BOLT
01550-08853
Superseded by 01550-0885B
|
$4.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
SPACER
44561-19F00
|
$11.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
CUSHION
44541-02F00
|
$10.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
HOSE, WATER DRAIN
44423-19F00
|
$13.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
PROTECTOR (L:600->140)
09351-14152-600
|
$10.59 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
JOINT, 3 WAY
09367-08004
|
$4.08 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
HOSE(7X10.2X600
09352-70103-600
Superseded by 09352-70104-600
|
$5.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
CLAMP, DRAIN HOSE
44339-19F00
|
$2.00 | ||
|
Unavailable |
|||
