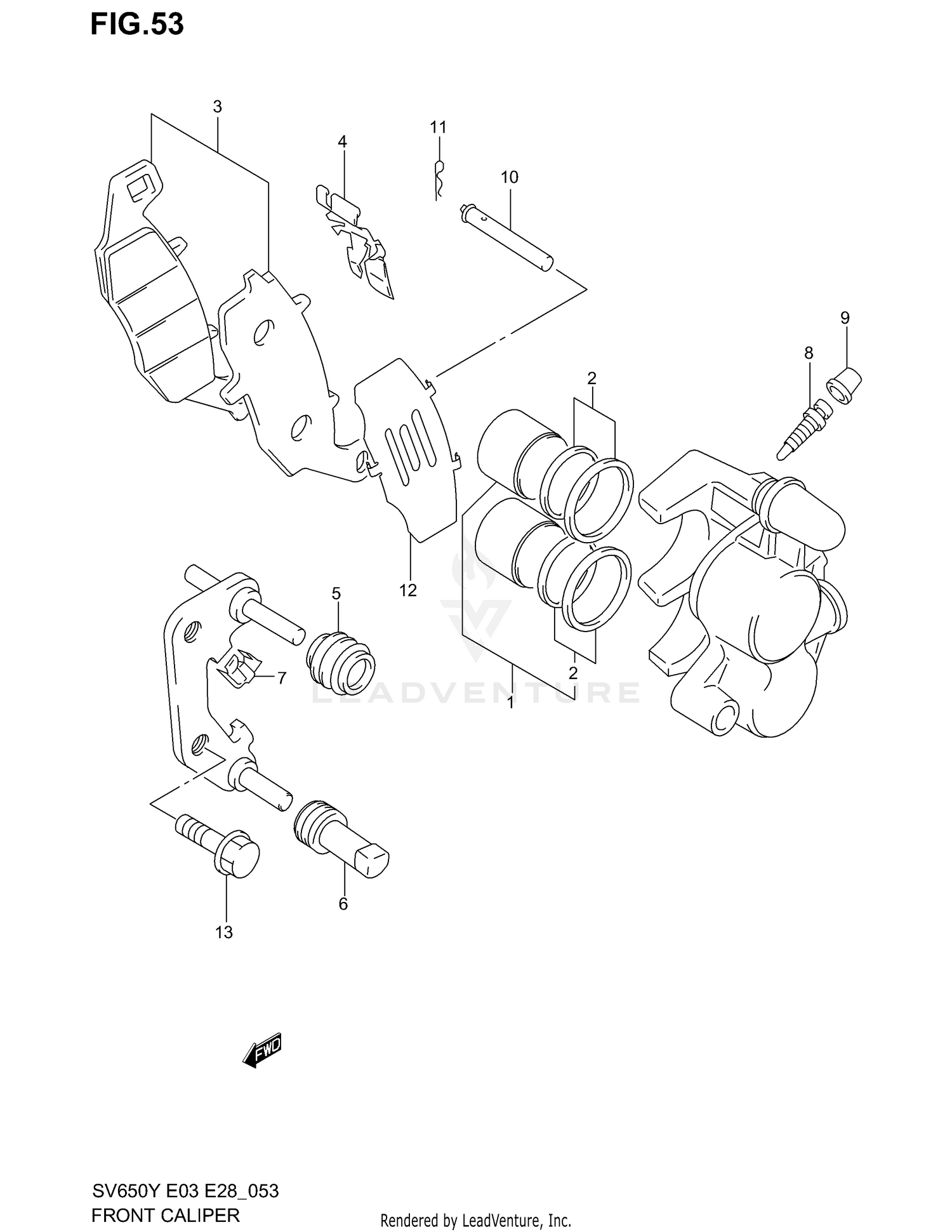

2001 Suzuki SV 650 FRONT CALIPER OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
CALIPER ASSY, FRONT RH
59100-33D80
Superseded by 59100-33D81-999
|
$511.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#
CALIPER ASSY, FRONT
59300-33D80
Superseded by 59300-33D81-999
|
$499.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#1
PISTON SET
59300-33830
Superseded by 59301-20820
|
$39.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
SEAL SET, PISTON
59300-33840
Superseded by 59300-33841
|
$16.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
PAD SET, RH
59101-33850
|
$62.73 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
PAD & SHIM SET, L
59301-33850
Superseded by 59302-33830
|
$58.24 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
SPRING RH
59115-33D00
|
$15.35 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
SPRING LH
59315-33D00
|
$15.35 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
BOOT
59112-44B00
|
$9.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
INSULATOR
59313-36500
|
$6.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
GUIDE
59116-33D00
|
$8.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
BLEEDER
59121-18410
|
$9.03 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
CAP
55156-66310
|
$5.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
PIN
59141-44B01
|
$9.35 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
CLIP
69142-45000
|
$4.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
SHIM
59171-33D00
|
$13.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
BOLT
01550-10253
Superseded by 01550-1025A
|
$3.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
