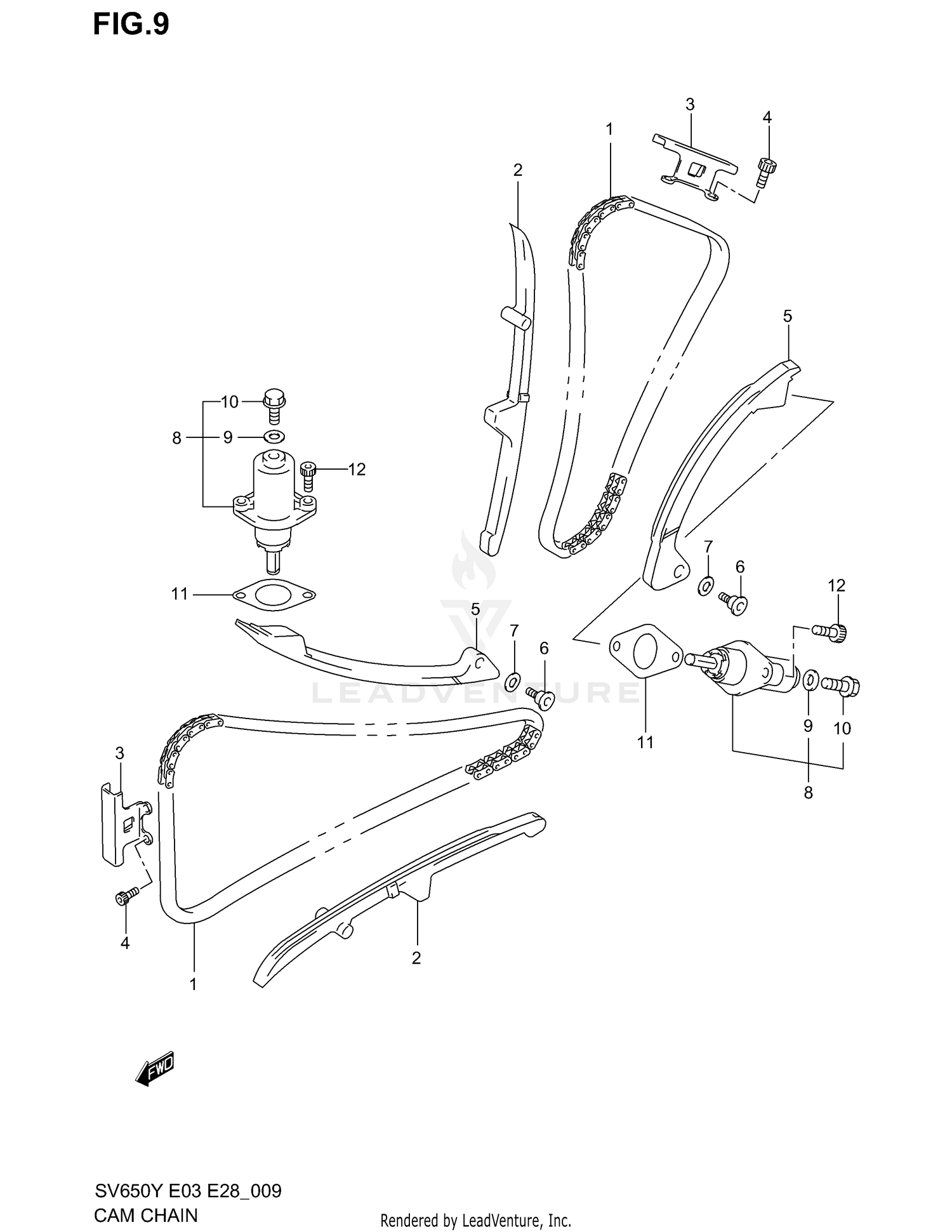

2001 Suzuki SV 650 CAM CHAIN OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CHAIN, CAMSHAFT DRIVE
12760-19F00
Superseded by 12760-19F01
|
$173.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
GUIDE, CAM CHAIN NO.1
12771-19F00
|
$55.44 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
GUIDE, CAM CHAIN NO.2
12782-19F00
Superseded by 12782-19F01
|
$38.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
BOLT
07130-06123
Superseded by 07130-0612A
|
$2.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
TENSIONER, CAM CHAIN
12811-19F00
|
$84.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
BOLT, CAM CHAIN TENSIONER
12812-35C00
|
$9.03 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
WASHER
08211-06181
|
$1.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
ADJUSTER ASSY, TENSIONER
12830-19F11
|
$106.67 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
GASKET, TENSIONER ADJUSTER
12837-33E00
|
$2.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
PLUG, TENSIONER ADJUSTER
12834-33E00
|
$3.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
GASKET, TENSIONER ADJUSTER
12837-24A10
|
$3.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
BOLT
07130-06253
Superseded by 07130-0625B
|
$3.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
