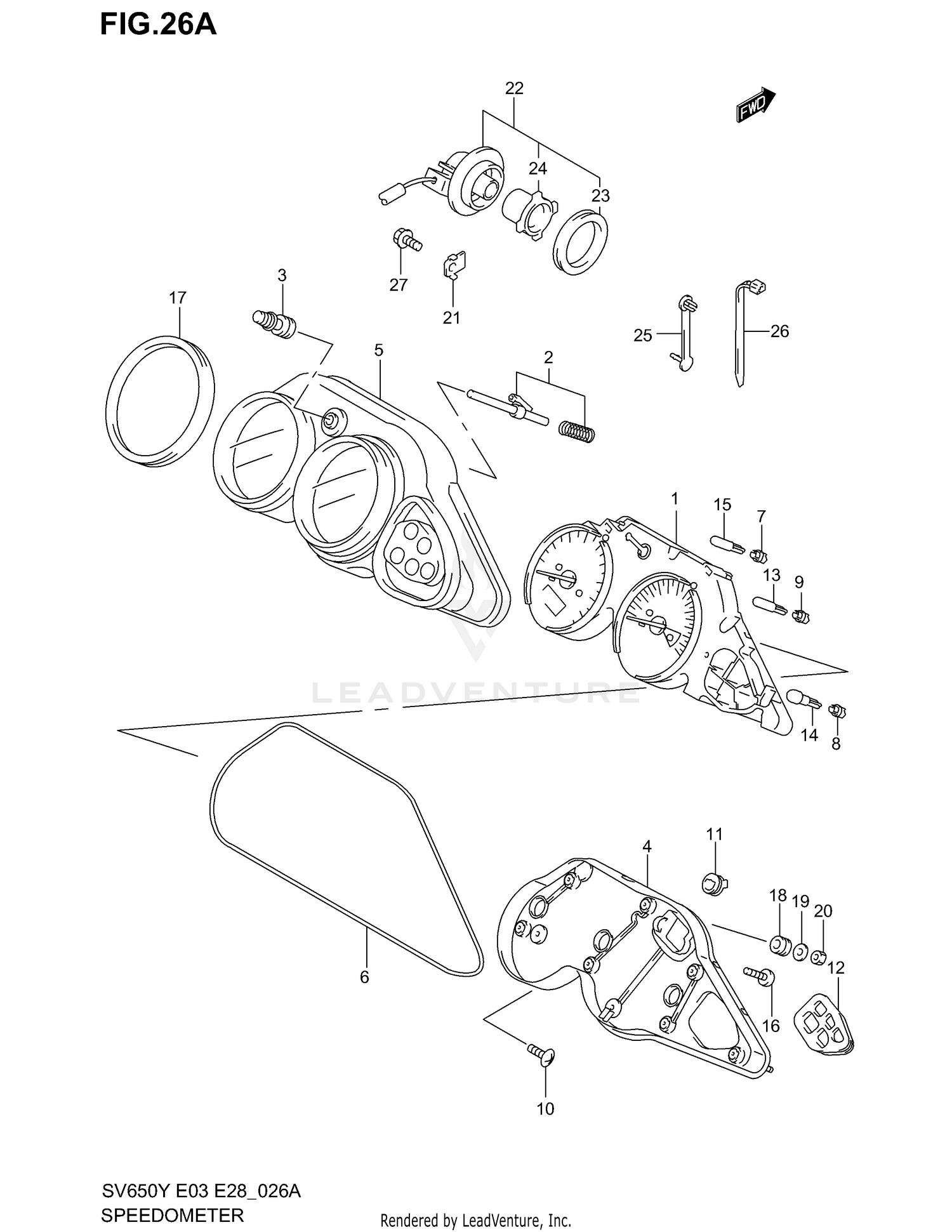

2000 Suzuki SV 650 SPEEDOMETER (SV650SX/SY/SK1/SK2) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPEEDOMETER
34119-20F21
|
$647.15 | ||
|
Unavailable |
|||
|
#1
SPEEDOMETER
34119-20F30
|
|||
|
Unavailable |
|||
|
#1
SPEEDOMETER
34119-20F31
|
|||
|
Unavailable |
|||
|
#2
LEVER
34123-02F00
|
$8.20 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
SWITCH, GUM
34124-02F00
|
$8.43 | ||
|
Unavailable |
|||
|
#4
CASE ASSY
34130-02F00
Superseded by 34130-02F01
|
$80.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
CASE ASSY
34130-02F01
|
$80.55 | ||
|
Unavailable |
|||
|
#5
VISOR
34150-19F00
|
$149.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
GASKET
34153-02F00
|
$9.62 | ||
|
Unavailable |
|||
|
#7
SOCKET
34172-71E70
|
$6.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
SOCKET
34173-19D00
|
$16.33 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
SOCKET
34173-19D70
|
$13.05 | ||
|
Unavailable |
|||
|
#10
SCREW, SPEEDOMETER (4X14)
34183-33DC0
|
$1.94 | ||
|
Unavailable |
|||
|
#11
BLIND, CAP
34198-02F00
|
$10.09 | ||
|
Unavailable |
|||
|
#12
BLIND
34198-02F10
|
$13.74 | ||
|
Unavailable |
|||
|
#13
BULB (14V,3W,T7)
09471-12085
|
$4.97 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
BULB (12V,1.7W,T7)
09471-12100
|
$4.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
BULB (14V,0.84W,T5)
09471-12189
|
$5.53 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
SCREW
03211-04207
|
$1.25 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
CUSHION
34188-02F00
|
$8.74 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
CUSHION
34996-43410
|
$3.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
WASHER (5.5X16X1.20)
09160-05037
|
$1.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
NUT
08310-00053
Superseded by 08310-0005A
|
$1.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
GUIDE, SENSOR LEAD
34938-14F00
|
$5.53 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
SENSOR, SPEED
34990-21E00
|
$218.56 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
SEAL, SENSOR
09286-44001
|
$11.64 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
ROTOR
34983-21E00
|
$32.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
CLAMP
09407-03401
|
$3.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
CLAMP (L:145)
09407-14407
|
$3.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
BOLT, CLAMP
01550-06123
Superseded by 01550-0612A
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
