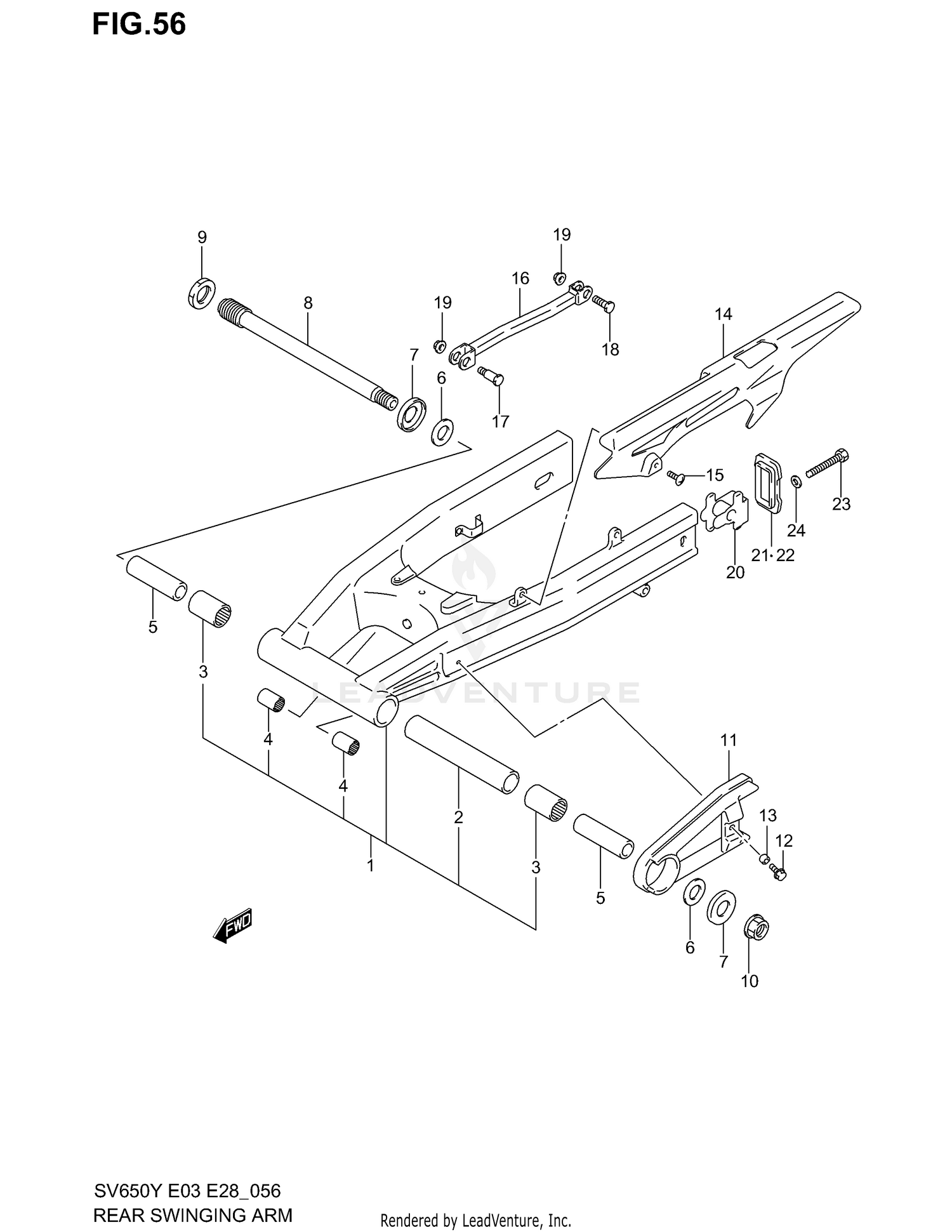

2000 Suzuki SV 650 REAR SWINGING ARM OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWINGING ARM ASSY, REAR
61000-19F11
|
$1,235.00 | ||
|
Unavailable |
|||
|
#1
SWINGING ARM ASSY, REAR
61000-19F01
|
$956.76 | ||
|
Unavailable |
|||
|
#2
SPACER, PIVOT CENTER
61281-19F00
|
$23.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
BEARING, PIVOT (25X33X30)
09263-25024
|
$25.85 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
BEARING, ROD (20X27X23.5)
09263-20071
|
$25.85 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
SPACER, PIVOT
61251-21E00
|
$26.33 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
THRUST WASHER
08211-20381
|
$3.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
DUST SEAL,RR SW
61262-17C00
Superseded by 61262-17C01
|
$8.37 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
SHAFT, PIVOT
61211-19F00
|
$93.22 | ||
|
Unavailable |
|||
|
#9
NUT, RR SWGARM PIVOT BOLT
61214-19F00
Superseded by 61214-19F10
|
$18.76 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
NUT
08319-31188
Superseded by 08319-3118A
|
$20.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
BUFFER,CHAIN TO
61273-19F00
Superseded by 61273-19F01
|
$37.45 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
BOLT (6X20)
09116-06152
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
SPACER (6.5X10X7)
09180-06283
|
$1.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
CASE, CHAIN
61310-19F00
|
$86.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
SCREW (6X16)
09139-06083
|
$2.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
TORQUE LINK, REAR
64310-19F00
|
$57.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
BOLT, FRONT (10X39)
09111-10051
|
$5.73 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
BOLT, REAR (10X34)
09100-10187
|
$3.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
NUT
08319-31107
|
$2.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
ADJUSTER, CHAIN
61410-33D00
|
$34.96 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
PLATE, ADJUSTER GUIDE RH
61421-33D01
|
$28.90 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
PLATE, ADJUSTER GUIDE LH
61422-33D01
|
$28.90 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
BOLT (8X50)
09106-08119
|
$4.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
WASHER
09164-08015
|
$3.19 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
