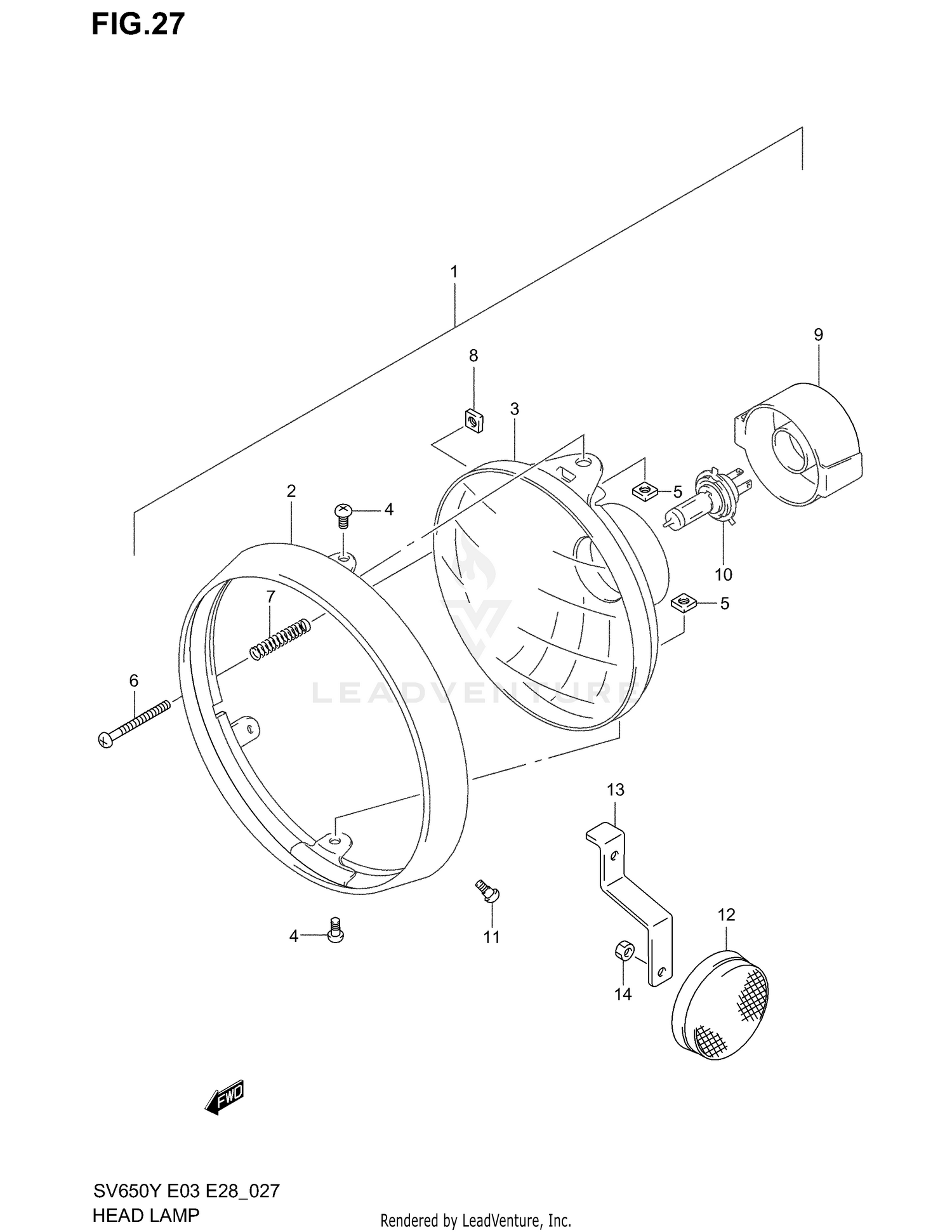

2000 Suzuki SV 650 HEADLAMP (SV650X/Y/K1/K2) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLAMP ASSY
35100-19F00-999
|
$310.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
RIM
35111-19F00
|
$89.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
LAMP UNIT
35121-19F00
|
$135.37 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
SCREW (5X16)
35181-19F00
|
$2.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
NUT
35135-45900
|
$2.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
SCREW, ADJUSTING
35151-19F00
|
$3.95 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
SPRING
35154-13F00
|
$4.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
NUT
35152-45600
|
$3.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
COVER, SOCKET
35174-19F00
|
$26.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
BULB (12V,60/55W)
09471-12185
Superseded by 09471-12060
|
$12.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
SCREW
09139-05038
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
REFLEX REFLECTOR ASSY
35950-14A00
|
$17.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
BRACKET, FRONT SIDE RR
35956-19F00
|
$6.44 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
NUT
08310-00053
Superseded by 08310-0005A
|
$1.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
